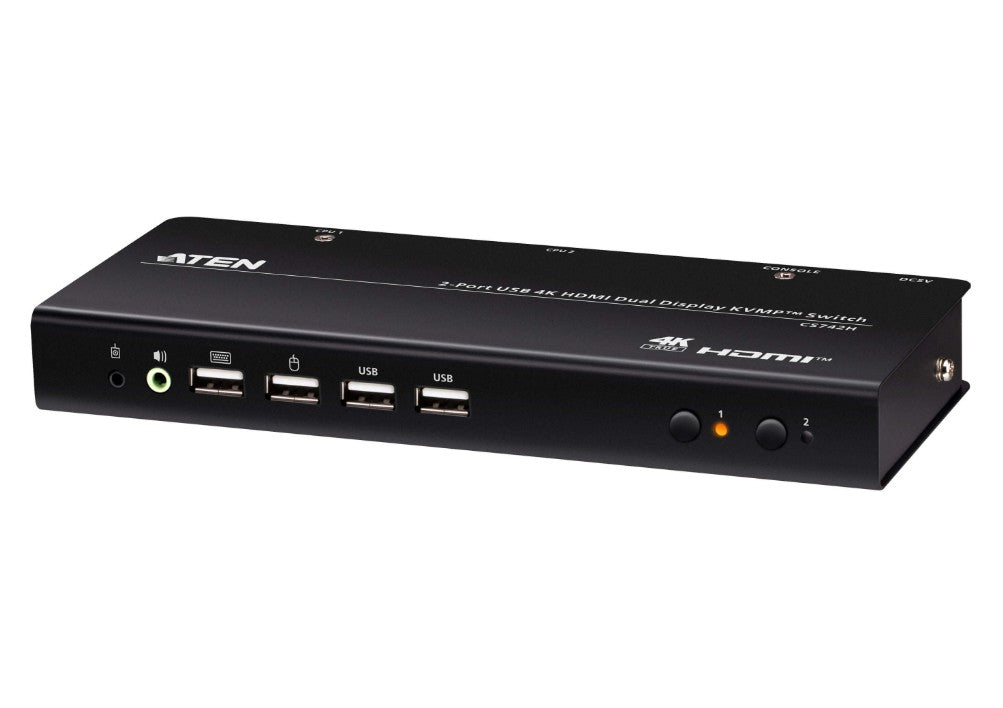

Aten CS742H 2-Port USB 4K HDMI Dual-Display KVM Switch
Aten CS742H 2-Port USB 4K HDMI Dual-Display KVM Switch
SKU:KVA-CS742H-AT-U
The Aten CS742H is a 2-port USB KVM switch designed for professionals managing multiple computers with high-resolution dual displays. Featuring 4K HDMI support, Video DynaSync technology, and complete cable inclusion, it delivers streamlined multi-system control for design, finance, and media production workflows.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CS742H-AT-U |
| Availability | In Stock |
Overview
- The Aten CS742H is a professional-grade 2-port KVM switch that enables seamless control of two computers from a single keyboard and mouse. With support for 4K HDMI displays at up to 4096 x 2160 @ 60Hz, it delivers exceptional visual clarity for demanding applications in design, finance, and media production.
The switch significantly reduces desktop clutter and hardware investment by eliminating the need for separate peripherals per computer. Video DynaSync technology automatically adjusts resolution and window layout during port switching, ensuring smooth, interruption-free workflows when moving between systems.
Flexibility is built in with multiple switching options including front-panel buttons, hotkeys, mouse wheel control, and a remote port selector. USB peripheral sharing allows you to seamlessly switch devices like external drives, webcams, and printers between connected computers without manual reconnection.
Complete with all necessary HDMI cables, USB cables, remote selector, and power adapter, the CS742H is ready to use immediately with no additional purchases required. It supports Windows, Mac, and Linux, making it ideal for mixed-platform environments.
Specifications
| Model | CS742H |
|---|---|
| Ports | 2 x Computer Ports |
| Video Resolution | Up to 4096 x 2160 @ 60Hz; 5120 x 1440 @ 60Hz |
| Display Support | Dual HDMI displays |
| Video Interface | HDMI |
| Keyboard/Mouse Interface | USB Type-A |
| USB Peripheral Sharing | Yes |
| Switching Methods | Front-panel pushbuttons, hotkeys, mouse wheel, remote port selector |
| Video DynaSync | Yes |
| Power-On Detection | Yes |
| Hot-Plug Support | Yes |
| Multiplatform Support | Windows, Mac, Linux |
| Firmware Upgradeable | Yes |
| Auto-Scan Function | Yes |
| Power Requirements | External power adapter included |
| Warranty | 12 months |
| Included Accessories | 4x HDMI cables (1.8m), 2x USB Type-A to USB Type-B cables (1.8m), remote port selector (1.8m), foot pad set (4 pcs), power adapter, user instructions |
Key Features
Ideal For
FAQs
Can the CS742H support dual displays on both computers simultaneously?
Yes, the CS742H supports dual HDMI displays with resolutions up to 4096 x 2160 @ 60Hz or 5120 x 1440 @ 60Hz, allowing each connected computer to drive multiple high-resolution displays.
What peripherals can be shared between computers?
The CS742H supports USB peripheral sharing, allowing you to switch devices such as external storage drives, webcams, printers, and other USB devices between the two connected computers.
How do I switch between computers?
You can switch between computers using four methods: front-panel pushbuttons on the device, keyboard hotkeys, mouse wheel control, or the included remote port selector.
Is software installation required?
No, the CS742H is plug-and-play and requires no software installation or configuration. It works immediately once connected with the included cables.
What platforms does the CS742H support?
The CS742H supports Windows, Mac, and Linux operating systems, making it suitable for mixed-platform environments.
What is Video DynaSync and how does it benefit my workflow?
Video DynaSync is Aten's exclusive technology that automatically optimises resolution and maintains consistent window layout when switching between computers, providing smooth, interruption-free multi-system workflows.
Are all necessary cables included in the package?
Yes, the CS742H comes complete with 4x HDMI cables, 2x USB Type-A to USB Type-B cables, a remote port selector, power adapter, and user instructions. No additional purchases are required for installation.
Can I upgrade the firmware on the CS742H?
Yes, the CS742H supports firmware upgrades, allowing you to access new features and improvements as they become available.
