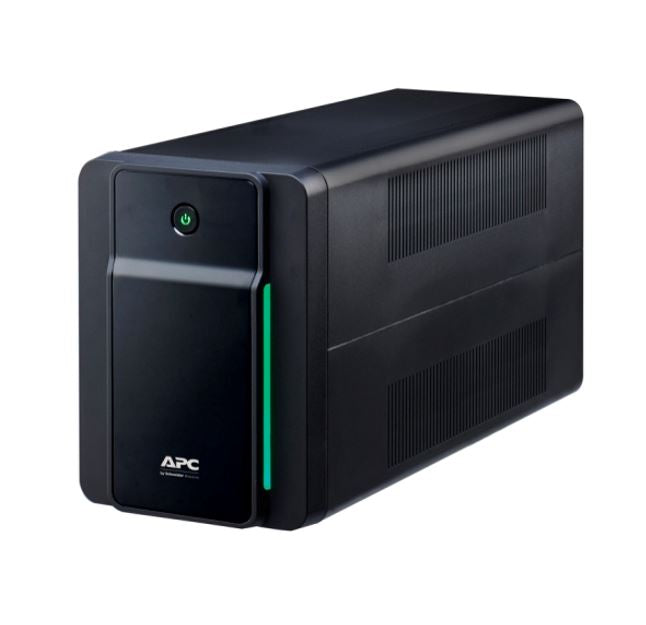

APC Back-UPS 1200VA/650W Line Interactive UPS Tower
APC Back-UPS 1200VA/650W Line Interactive UPS Tower
SKU:UPAPCBX1200MI-AZ
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCBX1200MI-AZ |
| Availability | In Stock |
Overview
- The APC Back-UPS 1200VA/650W is a tower-mounted line interactive UPS designed to protect small business environments from power interruptions and voltage anomalies. With 1200VA capacity and 650W rated power, it supplies four Australian outlets, making it suitable for protecting multiple workstations, servers, and network devices simultaneously.
Line interactive topology provides efficient power management by regulating input voltage through Automatic Voltage Regulation (AVR) before reaching connected equipment. This approach minimises battery drain during minor voltage fluctuations, extending battery life and reducing operational costs. The 6ms transfer time to battery backup ensures seamless protection during mains failure.
The unit features lead-acid battery technology with a typical 3–5 year lifespan and 8-hour recharge capability. Auto-sensing frequency detection (50/60Hz) supports flexibility for international operations or future relocation. RCM certification confirms compliance with Australian electrical safety standards, whilst CE and CB certifications provide additional assurance for international deployments.
Ideal for small offices, retail environments, and workgroups where brief power protection is essential but rack-mounted infrastructure is not required, the Back-UPS 1200VA delivers practical, reliable backup power at an accessible price point.
Specifications
| Input Voltage | 230V |
|---|---|
| Input Voltage Range | 140–300V |
| Input Frequency | 50/60Hz ±5Hz (auto-sensing) |
| Input Current | 10A |
| Input Power Factor | 0.54 at full load |
| Output Voltage | 230V |
| Output Frequency | 50/60Hz ±1Hz (sync to mains) |
| Output Waveform | Stepped approximation to sinewave |
| Output Connections | 4 × Australian standard outlets |
| Rated Power (W) | 650W |
| Rated Power (VA) | 1200VA |
| Full Load Runtime | 1 minute at 650W |
| Half Load Runtime | 5 minutes at 300W |
| Transfer Time | 6ms typical, 10ms maximum |
| Battery Type | Lead-acid |
| Battery Voltage | 12V |
| Battery Recharge Time | 8 hours |
| Battery Lifespan | 3–5 years |
| Form Factor | Tower |
| Mounting | Desktop/floor mounting (not rack mountable) |
| Dimensions | Not specified |
| Weight | Not specified |
| Ambient Operating Temperature | 0–40°C |
| Ambient Storage Temperature | −15–40°C |
| Relative Humidity (Operating) | 0–95% (non-condensing) |
| Relative Humidity (Storage) | 0–95% (non-condensing) |
| Operating Altitude | 0–3000m |
| Storage Altitude | 0–3000m |
| Acoustic Level | 40dBA |
| IP Rating | IP20 |
| Certifications | RCM, CE, CB |
| Safety Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Equipment Protection | €50,000 lifetime limit |
| Power Cable | 1.22m (1 cable included) |
| Warranty | 24 months |
| Replacement Battery | APCRBC175 |
Key Features
Ideal For
FAQs
What does line interactive UPS topology mean?
Line interactive UPS uses Automatic Voltage Regulation (AVR) to stabilise input voltage before reaching connected equipment. This approach is more efficient than offline UPS systems, as it minimises battery discharge during minor voltage fluctuations, extending battery life and reducing operational costs.
How long will the battery last during a full outage?
At full load (650W), the Back-UPS 1200VA provides approximately 1 minute of runtime. At half load (300W), runtime extends to approximately 5 minutes. Actual runtime depends on the power draw of your equipment. The battery itself has a lifespan of 3–5 years.
Can I replace the battery myself?
The Back-UPS 1200VA uses a replaceable lead-acid battery (model APCRBC175). Battery replacement should be performed by a qualified technician to ensure safety and proper installation. Contact Hyetech Australia or an authorised service provider for assistance.
Is the APC Back-UPS 1200VA suitable for Australian use?
Yes. The unit is rated for 230V input at 10A and features 4 Australian standard outlets. It is RCM certified for compliance with Australian electrical safety standards and automatically detects 50Hz frequency used in Australia.
How quickly does the UPS switch to battery power?
The typical transfer time is 6 milliseconds, with a maximum of 10 milliseconds. This rapid switchover ensures minimal interruption to connected equipment during mains failure.
What equipment can I protect with this UPS?
The 1200VA/650W capacity is suitable for protecting PCs, workstations, small servers, networking equipment (routers, switches, modems), and peripherals such as monitors and printers. Total connected load should not exceed 650W.
Does the Back-UPS 1200VA work with 60Hz power systems?
Yes. The unit features auto-sensing frequency detection and automatically adapts to both 50Hz and 60Hz power systems, making it suitable for use in multiple countries or future relocation.
What warranty and support is included?
The APC Back-UPS 1200VA includes a 24-month manufacturer's warranty. Equipment protection is covered up to €50,000 under APC's lifetime equipment protection policy. Support is available through Hyetech Australia and authorised APC service providers.
