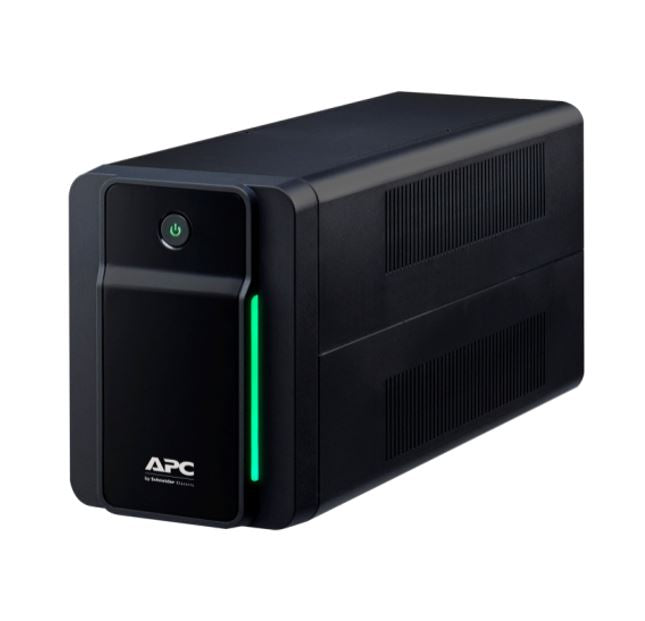

APC Back-UPS 750VA/410W Line Interactive UPS Tower
APC Back-UPS 750VA/410W Line Interactive UPS Tower
SKU:UPAPCBX750MI
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCBX750MI |
| Availability | In Stock |
Overview
- The APC Back-UPS 750VA/410W is a line interactive UPS that delivers cost-effective power protection for small offices and critical business equipment. Its 750VA capacity and 410W rating provide sufficient backup for servers, networking gear, and workstations, while automatic voltage regulation (AVR) stabilises power during brownouts and surges without draining the battery.
The 6ms typical transfer time ensures minimal disruption when switching to battery power, protecting your equipment and data from sudden mains failure. With 3 Australian outlets and a flexible tower design, it integrates easily into existing office environments. The lead-acid battery delivers up to 8.5 minutes of runtime at half load, providing enough time to save work, shut down gracefully, or bridge short outages.
APC's line interactive design is ideal for Australian businesses dealing with variable mains conditions. The wide input voltage tolerance (140–300V) means the UPS handles fluctuations automatically, extending equipment life and reducing operational stress. With a 24-month warranty and proven reliability, it's a practical choice for small-to-medium business continuity.
Specifications
| UPS Type | Line Interactive |
|---|---|
| Capacity (VA) | 750VA |
| Rated Power (W) | 410W |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Output Outlets | 3 × Australian standard outlets |
| Battery Type | Lead-acid |
| Transfer Time | 6ms typical / 10ms maximum |
| Output Waveform | Stepped approximation to sine wave |
| Input Voltage Range | 140–300V |
| Input Power Factor | 0.63 at full load |
| Network Frequency | 50/60 Hz ±5% (auto-sensing) |
| Output Frequency | 50/60 Hz ±1% (sync to mains) |
| Runtime at Full Load (390W) | 1 minute |
| Runtime at Half Load (195W) | 8 minutes 30 seconds |
| Operating Temperature | 0–40°C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000m |
| Storage Temperature | -15–40°C |
| Storage Humidity | 0–95% non-condensing |
| Acoustic Noise Level | 40 dBA |
| IP Rating | IP20 |
| Form Factor | Tower (desktop/floor) |
| Mounting | Not rack mountable |
| Power Cord Length | 1.22m |
| Replacement Battery | RBC17 |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
How long will the APC Back-UPS 750VA run on battery?
Runtime depends on load. At full load (390W), expect approximately 1 minute. At half load (195W), the battery provides around 8.5 minutes of runtime. This allows time to save work and shut down equipment safely during an outage.
What does 'line interactive' mean?
Line interactive UPS automatically regulates voltage fluctuations using AVR without draining the battery. This protects equipment from brownouts and surges whilst extending battery life. Only during complete mains failure does it switch to battery power.
Will this UPS work with Australian power outlets?
Yes. The Back-UPS 750VA is designed for Australian 230V mains and includes 3 Australian standard power outlets. It accepts 230V input and auto-senses 50/60 Hz frequency.
How quickly does it switch to battery backup?
The transfer time is 6ms typical and 10ms maximum. This rapid switchover minimises disruption to connected equipment and data during mains failure.
Can I rack-mount this UPS?
No, the Back-UPS 750VA is a tower unit designed for desktop or floor placement only. It is not suitable for rack mounting.
What devices can I protect with 750VA/410W capacity?
This capacity suits servers, networking equipment, workstations, and office equipment totalling up to 410W. Check your equipment's power consumption to ensure compatibility. Oversized equipment may reduce runtime.
What is the replacement battery part number?
The replacement battery for the APC Back-UPS 750VA is model RBC17. It should be replaced every 3–5 years depending on ambient temperature and usage.
