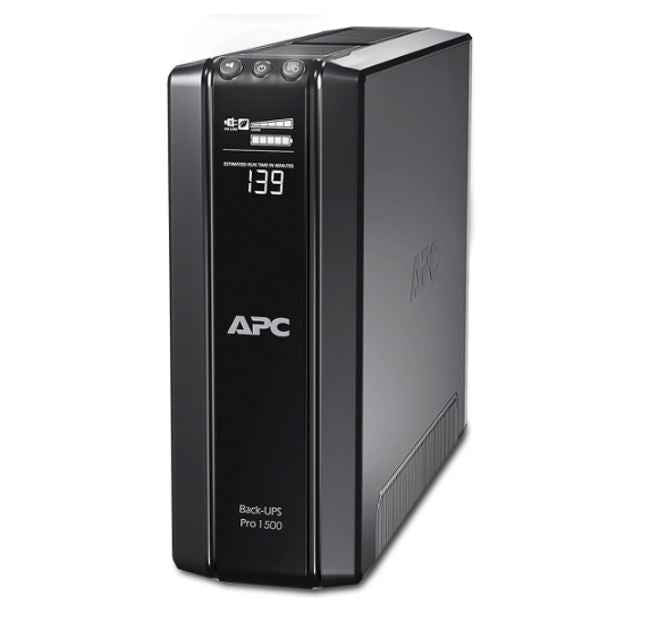

APC Back-UPS Pro 1500VA/865W Line Interactive UPS
APC Back-UPS Pro 1500VA/865W Line Interactive UPS
SKU:UPAPCBR1500I
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCBR1500I |
| Availability | In Stock |
Overview
- The APC Back-UPS Pro 1500VA/865W is a tower-format line interactive UPS providing 1500VA of backup power capacity with 865W rated output. It features 10 IEC C13 outlets—5 standard outlets and 5 surge-protected outlets—allowing simultaneous protection of multiple devices including computers, routers, storage systems, and peripherals.
With automatic voltage regulation (AVR) technology, the UPS compensates for voltage fluctuations without switching to battery power, extending runtime and battery life. The line interactive design offers efficient operation with minimal heat generation, making it suitable for continuous deployment in business and home environments.
The unit includes an LCD display and audible alarms that provide real-time visibility into power status, load level, and battery condition. A typical transfer time of 10 milliseconds ensures seamless switching to battery power during outages. The user-replaceable lead-acid battery simplifies maintenance and extends system longevity.
Specifications
| UPS Type | Line Interactive |
|---|---|
| Output Waveform | Stepped approximation to a sinewave |
| Rated Power | 1500 VA / 865 W |
| Input Voltage | 230 V |
| Input Voltage Range | 156–300 V (adjustable) |
| Input Switching Current | 10 A |
| Input Frequency | 50/60 Hz ±3 Hz (auto-sensing) |
| Output Voltage | 230 V |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Transfer Time | 10 ms typical; 12 ms maximum |
| Crest Factor | 3:1 |
| Output Connections | 10× IEC 60320 C13 (5 standard, 5 surge-protected) |
| Input Connection | IEC 60320 C13 |
| Battery Type | Lead-acid (user-replaceable) |
| Runtime at Full Load (865W) | 5 minutes 3 seconds |
| Mounting | Tower format (not rack-mountable) |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95 % |
| Operating Altitude | 0–30,000 ft |
| Storage Temperature | −15–45 °C |
| Storage Humidity | 0–95 % |
| Acoustic Level | 45 dBA |
| Warranty | 24 months |
| Replacement Battery Options | APCRBC124, BR24BPG |
Key Features
Ideal For
FAQs
What is the difference between line interactive and online UPS?
Line interactive UPS uses automatic voltage regulation (AVR) to handle minor voltage fluctuations without switching to battery, making it more efficient and quieter. Online UPS continuously converts power, offering higher protection but at greater cost and heat generation. The Back-UPS Pro 1500VA is ideal for most business applications.
How long will the backup power last?
At full 865W load, the Back-UPS Pro provides approximately 5 minutes of runtime. Runtime extends significantly at lighter loads. Actual duration depends on the power draw of connected devices.
Can I replace the battery myself?
Yes, the Back-UPS Pro features a user-replaceable lead-acid battery, simplifying maintenance without requiring technician support. Compatible replacements include APCRBC124 and BR24BPG models.
What outlets does this UPS have?
The unit includes 10 IEC C13 outlets: 5 standard outlets and 5 surge-protected outlets. This provides flexibility for protecting multiple devices simultaneously.
Does the UPS protect against power surges and spikes?
Yes. The automatic voltage regulation (AVR) compensates for voltage fluctuations, and the 5 surge-protected outlets provide additional protection against electrical spikes and surges.
What is the transfer time to battery power?
The Back-UPS Pro has a typical transfer time of 10 milliseconds (maximum 12 ms), ensuring minimal disruption to connected devices during a power failure.
Is the Back-UPS Pro 1500VA suitable for servers?
The Back-UPS Pro 1500VA is designed for computer systems, routers, storage devices, and business electronics. For critical server environments requiring higher reliability, online UPS or redundant systems may be more appropriate.
What does the LCD display show?
The LCD display provides real-time monitoring of power status, load level, battery charge, and runtime estimates. Audible alarms alert users to power events and battery conditions.
