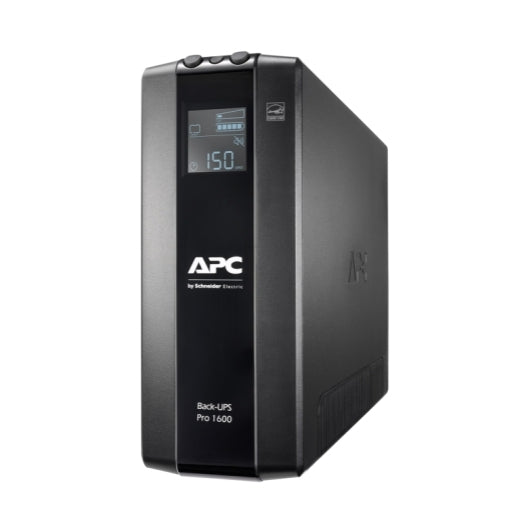

APC Back-UPS Pro 1600VA/960W Line Interactive UPS
APC Back-UPS Pro 1600VA/960W Line Interactive UPS
SKU:UPAPC-BR1600MI
The APC Back-UPS Pro 1600VA/960W is a line interactive UPS designed for computer systems, servers, and business equipment. Featuring 8 IEC C13 outlets, automatic voltage regulation, and a user-replaceable battery, it delivers reliable power protection for Australian businesses and offices.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-BR1600MI |
| Availability | In Stock |
Overview
- The APC Back-UPS Pro 1600VA/960W is a tower-format line interactive UPS providing comprehensive power protection for business-critical equipment. With 960W of rated output and 1600VA capacity, it delivers sufficient backup runtime to maintain operations during mains failures and protects connected devices from voltage surges and fluctuations.
The unit features 8 IEC C13 outlets—6 with full UPS backup and surge protection, plus 2 dedicated surge protection outlets—allowing flexible configuration across servers, network hardware, and peripherals. Built-in automatic voltage regulation (AVR) handles input voltage variations between 176–294V without draining battery reserves, extending overall runtime.
Designed for Australian business environments, the Back-UPS Pro 1600VA supports both 50 and 60 Hz frequencies and complies with key safety and performance standards including RCM, CE, and EAC certification. The user-replaceable battery reduces maintenance costs and downtime, whilst the LCD interface with audible alarms provides clear status visibility.
Specifications
| Capacity (VA) | 1600VA |
|---|---|
| Rated Power (W) | 960W |
| Form Factor | Tower |
| Input Voltage | 230V |
| Input Voltage Range | 176–294V |
| Maximum Input Current | 10A |
| Output Voltage | 230V |
| Output Frequency | 50/60Hz ±1Hz (sync to mains) |
| Output Outlets | 8 × IEC 60320 C13 (6 UPS + surge, 2 surge only) |
| Network Frequency | 50/60Hz ±3Hz (auto-sensing) |
| Battery Type | Lead-acid (user-replaceable) |
| Replacement Battery | APCRBC166 |
| UPS Type | Line interactive |
| Automatic Voltage Regulation | Yes (AVR) |
| Display | LCD with audible alarms |
| Runtime at 100W | 1 hour 8 minutes |
| Operating Temperature | 0–40°C |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–10,000 feet |
| Storage Temperature | -15–45°C |
| Storage Humidity | 0–95% (non-condensing) |
| Acoustic Level | 45 dBA |
| Heat Dissipation | 21.5 Btu/h |
| Mounting | Not rack-mountable |
| Certifications | A-Tick, C-Tick, CE, EAC, RCM, TISI, GS Mark |
| Standards Compliance | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
How long will the APC Back-UPS Pro 1600VA run at full load?
Runtime depends on load. At 100W, the unit provides approximately 1 hour 8 minutes of backup runtime. Higher loads will reduce runtime; lower loads will extend it. Consult APC's runtime charts for specific load scenarios.
Can I replace the battery myself?
Yes. The APC Back-UPS Pro 1600VA features a user-replaceable battery, which simplifies maintenance and reduces downtime. The replacement battery model is APCRBC166.
What is the difference between the 6 UPS outlets and the 2 surge-only outlets?
The 6 UPS outlets provide both battery backup power and surge protection during mains failures. The 2 surge-only outlets deliver only surge and spike protection but no battery backup, making them suitable for non-critical peripherals.
Does this UPS work with Australian mains voltage?
Yes. The Back-UPS Pro 1600VA operates on 230V and supports 50/60Hz frequency auto-sensing. It is certified for use in Australia with RCM certification and complies with local electrical standards.
What does Automatic Voltage Regulation (AVR) do?
AVR automatically corrects input voltage fluctuations between 176–294V without using battery power. This stabilisation reduces battery drain during minor voltage variations, extending overall runtime during extended outages.
Is the APC Back-UPS Pro 1600VA rack-mountable?
No. This model is tower-format only and is not designed for rack mounting. It is suited for floor or desk placement in offices and server rooms.
What certifications does this UPS hold?
The unit complies with A-Tick, C-Tick, CE, EAC, RCM, TISI, and GS Mark certifications. It also meets EN/IEC 62040 standards for UPS systems.
