APC Back-UPS Pro 650VA/390W Line Interactive UPS
APC Back-UPS Pro 650VA/390W Line Interactive UPS
SKU:UPAPCBR650MI

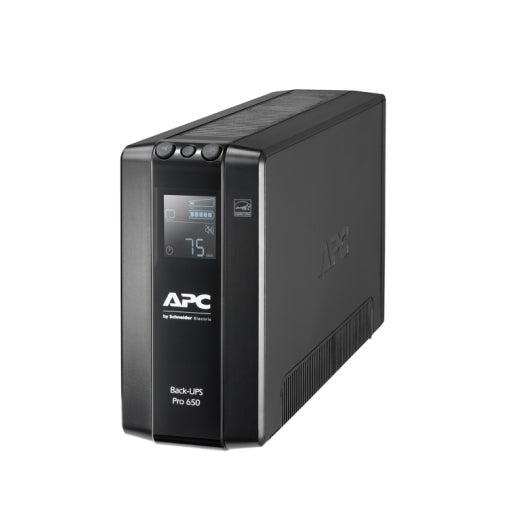

The APC Back-UPS Pro BR650MI is a 650VA line interactive UPS designed for computer systems, routers, and business electronics. Featuring automatic voltage regulation, LCD display, and 6 IEC C13 outlets, it delivers reliable power backup and surge protection for Australian offices and workstations.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCBR650MI |
| Availability | In Stock |
Overview
- The APC Back-UPS Pro BR650MI provides essential power protection for small to medium business environments and professional workstations. With 650VA capacity and 390W rated power output, it delivers sufficient backup to maintain operations during mains power interruptions and protects connected equipment from voltage surges and sags.
The line interactive topology automatically adjusts output voltage without switching to battery, reducing battery usage and extending runtime during minor power fluctuations. At 100W load, the unit provides approximately 25 minutes of runtime, adequate for orderly system shutdown or bridge to alternative power sources.
Key business benefits include the multifunction LCD display that provides real-time status monitoring, automatic voltage regulation to protect sensitive electronics, and instant audible alarms for power events. The 10ms transfer time ensures connected devices experience minimal disruption when switching to battery power.
With 6 IEC C13 outlets, you can protect multiple devices simultaneously—computers, monitors, routers, printers, and external drives. The user-replaceable battery (APCRBC110) simplifies maintenance and reduces downtime compared to sealed units.
Specifications
| Brand | APC |
|---|---|
| Model | BR650MI |
| UPS Type | Line Interactive |
| Capacity (VA) | 650VA |
| Rated Power (W) | 390W |
| Output Waveform | Stepped approximation to sinewave |
| Battery Type | Lead-acid (user-replaceable) |
| Replacement Battery | APCRBC110 |
| Input Voltage | 230V |
| Input Voltage Range | 176–294V |
| Input Current (Max) | 10A |
| Output Voltage | 230V |
| Output Frequency | 50/60Hz ±1Hz (sync to mains) |
| Network Frequency | 50/60Hz ±3Hz (auto-sensing) |
| Output Connections | 6× IEC 60320 C13 outlets |
| Transfer Time | 10ms typical, 12ms maximum |
| Runtime at 100W | 25 minutes |
| Runtime at Full Load (390W) | 2 minutes 44 seconds |
| Noise Suppression | Full-time multi-pole filtering, 10% IEEE surge let-through, instantaneous clamping |
| Acoustic Level | 45dBA |
| Heat Dissipation | 13.3 Btu/h |
| Operating Temperature | 0–40°C |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–10,000 feet |
| Storage Temperature | -15–45°C |
| Storage Humidity | 0–95% (non-condensing) |
| Storage Altitude | 0–15,240 metres |
| Control Panel | Multifunction LCD with status and control |
| Alarms | Battery mode alarm, low-battery alarm, continuous overload tone |
| Form Factor | Tower (not rack-mountable) |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
How long will the APC Back-UPS Pro 650VA keep my office running?
Runtime depends on the total wattage of connected devices. At 100W load, the unit provides approximately 25 minutes of runtime—sufficient time to save work, shut down systems gracefully, or switch to alternative power. At full 390W capacity, runtime reduces to 2 minutes 44 seconds. For specific scenarios, calculate your device wattages and contact our team.
What does 'line interactive' mean?
Line interactive UPS automatically adjusts output voltage in response to mains voltage fluctuations (sags and surges) without switching to battery power. This protects equipment from voltage instability and extends battery life by using battery only during complete power failures, not minor variations.
Can I replace the battery myself?
Yes. The APC Back-UPS Pro BR650MI features a user-replaceable battery (APCRBC110), allowing you to perform maintenance without technical support. This reduces downtime and keeps your business running with minimal intervention.
How many devices can I protect simultaneously?
The unit has 6 IEC C13 outlets, allowing you to connect up to 6 devices. However, total connected wattage should not exceed 390W for safe operation. Common setups include computer, monitor, router, printer, and external drives.
What is AVR (automatic voltage regulation)?
AVR automatically adjusts the output voltage to compensate for mains fluctuations (176–294V input range). This stabilises power to connected equipment, protecting against surge and sag damage without drawing on the battery, extending battery life for genuine outages.
Is the APC Back-UPS Pro suitable for server environments?
The BR650MI is designed for small to medium business workstations, network equipment, and peripheral devices. For dedicated server protection, consider higher-capacity or rack-mountable UPS models. Contact us to discuss your specific requirements.
What happens if I overload the UPS?
The unit emits a continuous overload alarm if load exceeds 390W. The UPS will not supply power to devices if overloaded. Reduce connected device wattage to restore operation.
Does the APC Back-UPS Pro come with network monitoring?
The BR650MI features an LCD display for local status monitoring and control. For remote monitoring or network integration, refer to the APC management software compatibility—contact us for details suited to your environment.
