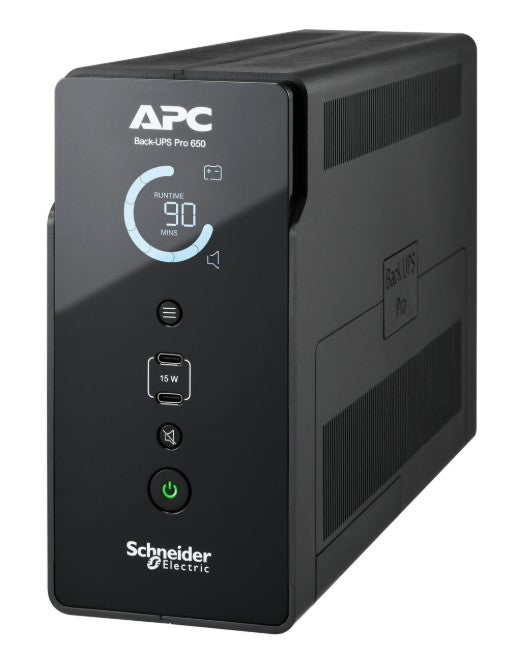

APC Back-UPS PRO 650VA/400W Line Interactive UPS
APC Back-UPS PRO 650VA/400W Line Interactive UPS
SKU:UPAPC-BR650G2I
The APC Back-UPS PRO 650VA is a line interactive UPS designed for computers, routers, storage devices, and business electronics. Featuring 6 IEC outlets, automatic voltage regulation, and USB charging ports, it delivers reliable power protection and seamless backup for Australian businesses.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-BR650G2I |
| Availability | Out of Stock |
Overview
- The APC Back-UPS PRO 650VA is a tower-mounted line interactive UPS providing dependable power protection for office and business environments. With 650VA capacity and 400W rated power, it offers sufficient runtime to protect critical systems during mains failures and automatically regulates voltage fluctuations to prevent equipment damage.
The unit features 6 IEC outlets split between battery-backed and surge-protection-only outlets, allowing you to prioritise which devices remain powered during an outage. The 1080 Joules surge protection rating and full-time noise filtering protect sensitive equipment from electrical spikes and interference.
Includes PowerChute Serial Shutdown software for automated graceful shutdown and energy management, plus EcoStruxure IT SmartConnect integration via PowerChute Link for enhanced monitoring. The user-replaceable battery cartridge simplifies maintenance and restores performance to original specifications.
Ideal for Australian small businesses, offices, and facilities requiring reliable backup power without the complexity or footprint of larger UPS systems.
Specifications
| Brand | APC |
|---|---|
| Model | BR650G2I |
| Product Type | Line Interactive UPS |
| Capacity (VA) | 650 VA |
| Rated Power (W) | 400 W |
| Input Voltage | 230 V |
| Input Voltage Range | 176–294 V |
| Input Frequency | 50/60 Hz ±5 Hz (auto-sensing) |
| Output Voltage | 230 V |
| Output Voltage Tolerance | ±5% static and 100% load step |
| Output Frequency | 47–63 Hz ±0.1% (50 Hz nominal) |
| Transfer Time | 8 ms typical, 10 ms maximum |
| UPS Type | Line Interactive |
| Wave Type | Stepped approximation to a sinewave |
| Battery Type | Lead-acid (internal included) |
| Battery Capacity | 108 VAh |
| Battery Recharge Time | 8 hours |
| Battery Life | 3–5 years |
| Runtime at Full Load | 3 minutes 46 seconds |
| Number of Outlets | 6 IEC 60320 C13 |
| Battery-Backed Outlets | 4 |
| Surge-Only Outlets | 2 |
| Surge Energy Rating | 1080 Joules |
| Noise Suppression | Full-time multi-pole noise filtering, 5% IEEE surge let-through, zero clamping response time |
| Surge Protection Standard | UL 1449 compliant |
| USB Ports | 2 × USB Type-C charging ports |
| USB Compatible | Yes |
| Control Panel | LED status display with load and battery bar-graphs, status indicators |
| Status Indicators | On line, on battery, replace battery, overload indicators |
| Connection Type (Input) | IEC 60320 / IEC 60309 |
| Connection Type (Output) | IEC 60320 C13 |
| Cable Length | 1.5 m |
| Number of Cables | 1 |
| Mounting Mode | Tower (non-rack-mountable) |
| Colour | Black |
| Height | 190 mm |
| Width | 91 mm |
| Depth | 310 mm |
| Net Weight | 6.4 kg |
| Operating Temperature Range | 0–40 °C |
| Operating Humidity Range | 0–95% relative humidity |
| Operating Altitude | 0–3000 m |
| Storage Temperature Range | -15–45 °C |
| Storage Humidity Range | 0–95% relative humidity |
| Acoustic Level | 45 dBA |
| Heat Dissipation | 77.1 Btu/h |
| Maximum Input Current | 10 A |
| Maximum Output Current | 10 A |
| Automatic Voltage Regulation | Yes |
| Management Software | PowerChute Serial Shutdown included |
| Smart Features | EcoStruxure IT SmartConnect integration via PowerChute Link |
| Product Certifications | CE |
| Equipment Protection | Lifetime €75,000 |
| Warranty (UPS) | 24 months |
| Warranty (Battery) | 12 months |
| Replacement Battery Compatible | Yes (user-replaceable cartridge) |
Key Features
Ideal For
FAQs
How long will the APC Back-UPS PRO 650VA keep my equipment running during a power outage?
Runtime depends on connected load. At full 400W capacity, you can expect approximately 3 minutes 46 seconds of backup power. With lighter loads, runtime extends significantly. PowerChute Serial Shutdown software allows graceful system shutdown before battery depletion.
What is the difference between battery-backed and surge-only outlets?
The 4 battery-backed outlets provide both backup power and surge protection during outages. The 2 surge-only outlets provide surge protection but no battery backup, making them suitable for peripherals that don't require continuous power (printers, monitors, speakers).
Can I use the APC Back-UPS PRO 650VA to charge devices via USB during a power outage?
Yes. The unit features 2 USB Type-C charging ports that remain active during battery operation, allowing you to charge phones, tablets, and other devices when mains power is unavailable.
Is automatic voltage regulation (AVR) useful in Australia?
Yes. AVR smooths voltage fluctuations from the mains supply without draining battery power, protecting equipment from damage caused by inconsistent power delivery. This extends equipment lifespan and improves reliability.
Can the battery be replaced?
Yes. The unit features a user-replaceable lead-acid battery cartridge. APC replacement batteries are available separately and restore the UPS to original performance specifications.
What software is included with the APC Back-UPS PRO?
PowerChute Serial Shutdown is included, providing graceful system shutdown, energy management, and monitoring. EcoStruxure IT SmartConnect integration via PowerChute Link offers enhanced remote monitoring, efficiency tracking, and performance management.
What is the 1080 Joules surge rating and why does it matter?
Surge energy rating indicates how much electrical surge the UPS can absorb and dissipate. 1080 Joules is a robust rating suitable for protecting multiple connected devices from power spikes, lightning strikes, and electrical transients.
Is the APC Back-UPS PRO 650VA rack-mountable?
No. This model is tower-mounted (desktop/floor placement only) and is not suitable for rack cabinet installation. If rack mounting is required, consult our sales team for alternative APC models.
