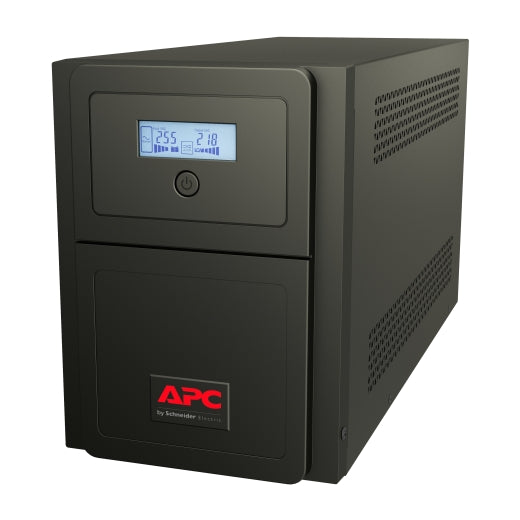

APC Easy UPS 1 750VA Line Interactive Tower UPS
APC Easy UPS 1 750VA Line Interactive Tower UPS
SKU:UPAPC-SMV750CAI
The APC Easy UPS 1 is a 750VA line interactive tower UPS designed for small to medium businesses requiring reliable power protection. Featuring pure sine wave output, automatic voltage regulation, and intelligent monitoring capabilities, it delivers consistent power protection across unstable electrical conditions.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SMV750CAI |
| Availability | In Stock |
Overview
- The APC Easy UPS 1 SMV750CAI is a single-phase line interactive UPS system designed to protect essential business infrastructure from power interruptions and voltage instability. With 750VA capacity and 525W continuous output, it provides reliable power conditioning for small to medium business environments operating across variable electrical conditions.
This tower UPS combines pure sine wave technology with automatic voltage regulation (AVR) to handle input voltage ranges from 165-290V, making it suitable for Australian locations experiencing frequent power fluctuations or unstable supply. The line interactive topology ensures efficient operation during normal conditions whilst rapidly switching to battery backup during outages.
The SMV750CAI features six IEC C13 outlets for connecting multiple devices, plus USB and RS-232 communication interfaces for centralized monitoring and management. An optional intelligent card slot enables advanced network-based monitoring and integration with building management systems, making it ideal for businesses requiring visibility into power events and UPS status.
With a typical switchover time of 2-6ms and quiet operation at 45dBA, this UPS minimises disruption whilst protecting critical workloads. The included lead-acid battery provides emergency runtime, with optional replacement batteries available for extended protection requirements.
Specifications
| UPS Type | Line Interactive |
|---|---|
| Capacity | 750VA |
| Power Output | 525W |
| Output Waveform | Pure Sine Wave |
| Main Input Voltage | 230V |
| Input Voltage Range | 165-290V |
| Acceptable Input Voltage | 220-240V |
| Output Voltage | 230V |
| Input Frequency | 45-65Hz ±1Hz (auto-sensing) |
| Output Frequency | 50/60Hz ±1Hz (unsynchronised) |
| Transfer Time | 2-6ms typical / 12ms maximum |
| Input Connection | IEC 60320 C14 |
| Output Connections | 6x IEC 60320 C13 |
| Battery Type | Lead-acid |
| Crest Factor | 3:1 |
| Operating Temperature | 0-40°C |
| Operating Humidity | 0-95% non-condensing |
| Operating Altitude | 0-3000m |
| Storage Temperature | -10-40°C |
| Storage Humidity | 0-95% non-condensing |
| Storage Altitude | 0-15000m |
| Acoustic Level | 45dBA |
| IP Protection Rating | IP20 |
| Form Factor | Tower (not rack mountable) |
| Communication Interfaces | USB, RS-232 |
| Features | AVR, LCD display, Intelligent card slot, Dry contact |
| Replacement Battery | APCRBCV206 |
| Compatible Network Management Card | APV9602 |
| Warranty | 24 months |
| Included Items | User manual, Documentation CD, USB cable |
Key Features
Ideal For
FAQs
What is line interactive UPS technology and how does it differ from standby UPS?
Line interactive UPS continuously monitors input voltage and automatically adjusts output through its voltage regulation circuitry (AVR). Unlike standby UPS that switches to battery only during outages, line interactive UPS provides active filtering and power conditioning during normal operation, extending battery life and improving protection against voltage sags and surges.
How long will the battery provide backup power during an outage?
Runtime depends on battery capacity and connected load. The SMV750CAI uses a lead-acid battery, with runtime typically ranging from several minutes at full load to 30+ minutes at light loads. For extended runtime requirements, consider the optional APCRBCV206 replacement battery or parallel UPS configurations.
Can this UPS be remotely monitored and managed?
Yes. The SMV750CAI features USB and RS-232 communication interfaces for direct monitoring. An optional intelligent card slot (APV9602) enables advanced network-based remote monitoring, alerting, and integration with building management systems for centralised infrastructure oversight.
What voltage fluctuations can the AVR handle?
The automatic voltage regulation (AVR) handles input voltages from 165-290V without using battery power, automatically compensating for sags and surges. Input voltages outside this range will trigger battery switchover to maintain stable 230V output.
Is this UPS suitable for Australian power conditions?
Yes. The SMV750CAI is designed for 230V single-phase Australian mains supply. Its wide input voltage range (165-290V) and auto-sensing frequency capability make it well-suited to Australian locations with unstable or variable power conditions.
What devices can be connected to this UPS?
The six IEC C13 outlets accommodate standard computer equipment including servers, workstations, network switches, printers, and other office equipment with IEC power connectors. Total connected load should not exceed the 525W continuous power rating.
How quickly does the UPS switch to battery power during an outage?
The SMV750CAI switches to battery in 2-6 milliseconds under typical conditions, with a maximum transfer time of 12ms. This rapid switchover minimises disruption to most business equipment.
What warranty and support does APC provide with this UPS?
The SMV750CAI includes a 24-month manufacturer warranty. Support includes technical documentation, user manuals provided on CD, and access to APC support resources. Optional replacement batteries and network management cards are available for extended service.
