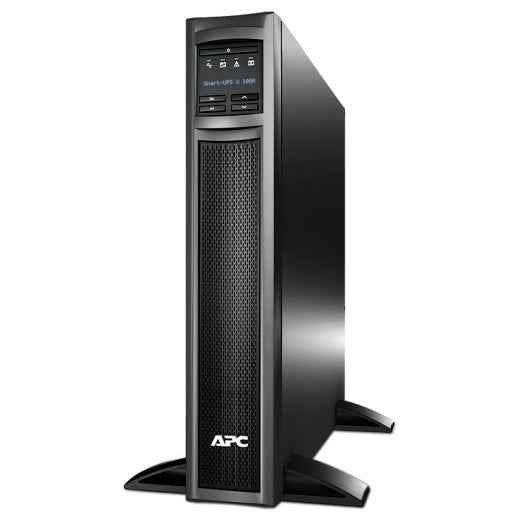

APC Smart-UPS X 1000VA/800W Line Interactive UPS
APC Smart-UPS X 1000VA/800W Line Interactive UPS
SKU:UPAPC-SMX1000I
The APC Smart-UPS X SMX1000I is a 1000VA/800W line interactive UPS designed for critical network and server protection. Featuring rack/tower convertibility, pure sine wave output, and extendable battery support, it delivers reliable power continuity for business-critical applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SMX1000I |
| Availability | Out of Stock |
Overview
- The APC Smart-UPS X 1000VA/800W is a premium line interactive UPS that provides intelligent power protection for business-critical infrastructure. Built on APC's trusted Smart-UPS platform, this unit combines high reliability with flexible deployment options, supporting both rack-mounted and tower configurations in a compact 2U footprint.
The UPS delivers pure sine wave output, ensuring safe operation of sensitive network equipment, servers, and storage systems. With 8 IEC C13 outlets and support for up to 10 external battery modules, it scales to meet evolving runtime requirements without replacing the core unit. The 230V/10A input accepts wide voltage ranges (151–302V adjustable), making it suitable for environments with unstable power conditions.
Optional Network Management Cards and PowerChute Business Edition software enable remote monitoring and unattended shutdown capabilities, simplifying management across distributed IT environments. The included rack mounting brackets, support feet, and comprehensive installation documentation ensure straightforward deployment.
Ideal for organisations prioritising uptime and equipment protection, the Smart-UPS X 1000VA combines proven APC technology with expandability to grow with your business.
Specifications
| Brand | APC |
|---|---|
| Model | SMX1000I |
| Product Type | Line Interactive UPS |
| Rated Power (Watts) | 800 W |
| Rated Power (VA) | 1000 VA |
| Input Voltage | 230 V |
| Output Voltage | 230 V |
| Input Connection Type | IEC 320 C14 |
| Output Connection Type | 8x IEC 320 C13, 2x IEC Jumper Cables |
| Input Voltage Range | 151–302 V (adjustable), 160–286 V (auto-sensing) |
| Network Frequency | 50/60 Hz ±3 Hz (auto-sensing) |
| Battery Type | Lead-acid |
| Mounting Configuration | 2U rack-mounted or tower |
| Design | Rack/tower convertible |
| Acoustic Level | 40 dBA |
| Heat Dissipation | 82 Btu/h |
| Operating Temperature Range | 0–45 °C |
| Storage Temperature Range | -15–45 °C |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| Relative Humidity (Operating) | 0–95 % |
| Relative Humidity (Storage) | 0–95 % |
| Input Cable Length | 1.83 m |
| Replacement Battery Module | APCRBC116 |
| Included Accessories | CD with software, documentation CD, installation guide, rack mounting brackets, removable support feet, RS-232 signalling cable |
| Warranty | 36 months |
| Compatible Network Management Cards | AP9613, AP9620, AP9640, AP9641, AP9643 |
| Compatible PDU Units | AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW |
| Compatible Bypass Panels | SBP16KRMI4U, SBP3000RMI, SBP5000RMI2U, SBP6KRMI2U, SBP1500RMI |
| Extendable Battery Support | Up to 10 external battery modules |
Key Features
Ideal For
FAQs
Can the APC Smart-UPS X 1000VA be mounted in a standard server rack?
Yes. The SMX1000I is a 2U rack-mountable design and includes rack mounting brackets. It can also be deployed as a tower unit using removable support feet, providing flexible placement options.
What is the runtime on battery backup with the 1000VA/800W model?
Runtime varies based on connected load and battery configuration. The unit supports extendable battery modules (up to 10 units) to increase runtime during prolonged outages. Consult the detailed specifications or contact us for runtime calculations specific to your load.
Does the APC Smart-UPS X support remote monitoring?
Yes. The SmartSlot enables optional Network Management Cards (AP9613, AP9620, AP9640, AP9641, AP9643) for network-based monitoring. PowerChute Business Edition software is also available for unattended shutdown and advanced management.
What are the input voltage specifications for Australian environments?
The UPS operates at 230V input with an adjustable range of 151–302V and an auto-sensing range of 160–286V. It automatically detects 50/60 Hz frequency, making it compatible with Australian power standards.
Is the APC Smart-UPS X suitable for sensitive IT equipment?
Yes. The unit delivers pure sine wave output, which is essential for protecting sensitive network equipment, servers, storage systems, and other critical devices from power disturbances and surges.
What batteries can be used with this UPS?
The SMX1000I uses lead-acid batteries. The replacement battery module is APCRBC116. External battery modules can be added (up to 10 units) for extended runtime.
What warranty is included with the APC Smart-UPS X 1000VA?
The unit includes a 36-month manufacturer warranty, providing three years of coverage against defects and failures.
How many devices can be connected to the APC Smart-UPS X 1000VA?
The UPS features 8x IEC C13 outlets plus 2x IEC jumper cables, allowing simultaneous connection of multiple devices. The actual number of devices depends on their individual power consumption and the UPS capacity.
