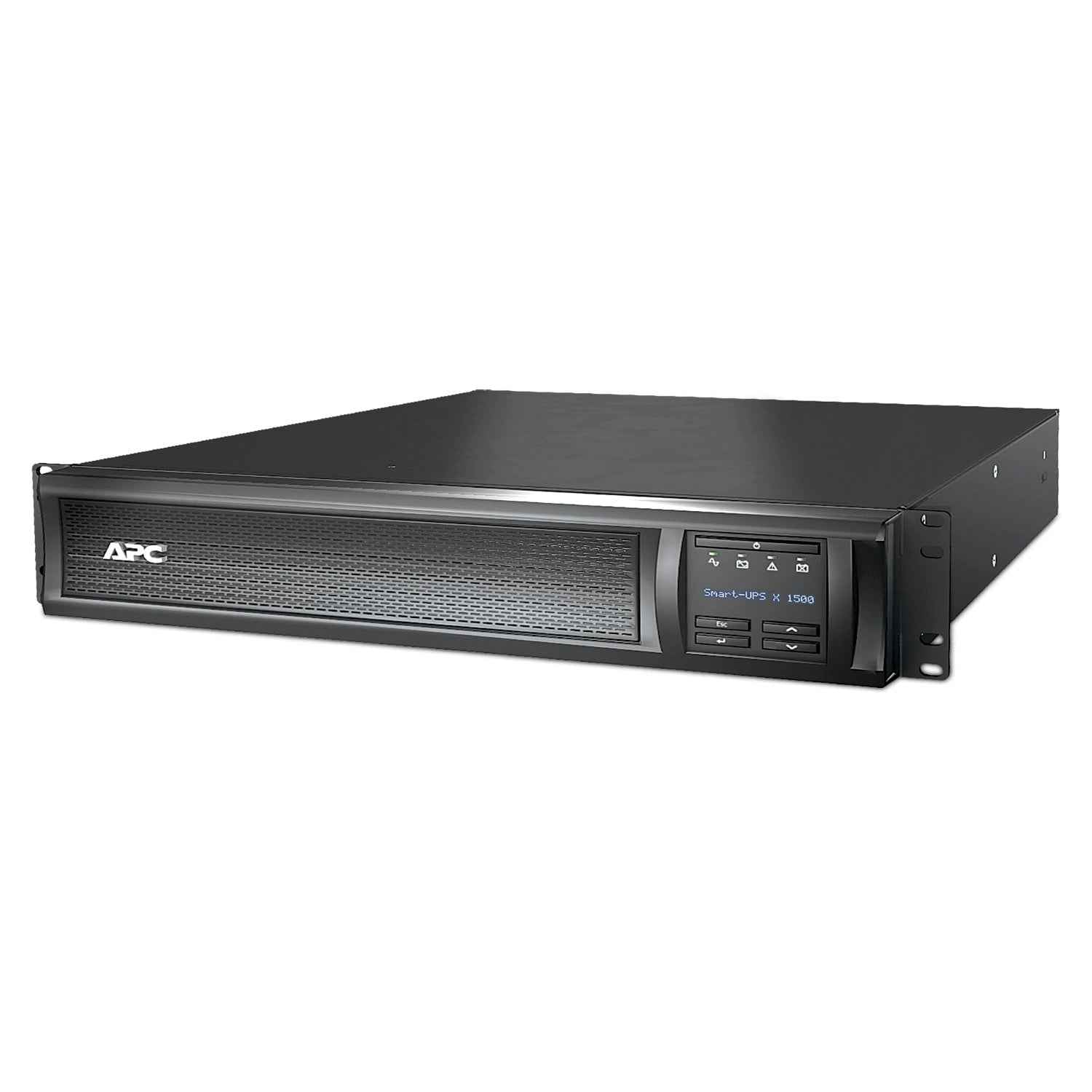

APC Smart-UPS X 1500VA 2U Rack/Tower UPS
APC Smart-UPS X 1500VA 2U Rack/Tower UPS
SKU:UPAPCSMX1500RMI
The APC Smart-UPS X SMX1500RMI2U is a 1500VA line-interactive UPS designed for critical business applications. Featuring rack/tower convertibility, pure sine wave output, extended runtime capability, and network management support, it delivers reliable power protection for IT infrastructure.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCSMX1500RMI |
| Availability | In Stock |
Overview
- The APC Smart-UPS X 1500VA is a premium line-interactive UPS designed to protect critical IT infrastructure from power disruptions. With 1200W of rated capacity and pure sine wave output, it ensures clean, stable power to sensitive equipment including servers, networking devices, and storage systems.
This 2U unit offers exceptional flexibility with both rack and tower mounting options, making it suitable for diverse deployment scenarios. The eight IEC C13 outlets provide ample connectivity for multiple devices, while the SmartSlot enables optional Network Management Cards for real-time monitoring and control across your network.
Built on APC's proven Smart-UPS platform, this model delivers scalable runtime protection with optional battery extensions. The included 36-month warranty and compatibility with PowerChute Business Edition software ensure comprehensive protection and unattended shutdown capabilities for mission-critical operations.
Specifications
| Capacity | 1500 VA / 1200 W |
|---|---|
| UPS Type | Line-interactive |
| Output Waveform | Pure sine wave |
| Input Voltage | 230 V |
| Output Voltage | 230 V |
| Input Connection | IEC 320 C14 |
| Output Connections | 8x IEC 320 C13, 2x IEC jumper cables |
| Runtime at Full Load (1200W) | 5 minutes 45 seconds |
| Load Range | 120–1200 W |
| Mounting | 2U rack/tower convertible |
| Rack Units | 2U |
| Battery Type | Lead-acid |
| Acoustic Level | 40 dBA |
| Heat Dissipation | 133 BTU/h |
| Operating Temperature | 0–45 °C |
| Storage Temperature | -15–45 °C |
| Operating Altitude | 0–10,000 ft |
| Relative Humidity | 0–95 % |
| Power Cord | 1.83 m IEC cable |
| Warranty | 36 months |
| Optional Accessories | Network Management Card (AP9613, AP9620, AP9640, AP9641, AP9643, AP9810) |
| Compatible Replacement Battery | APCRBC115 |
| Compatible Battery Modules | SMX039-2 |
Key Features
Ideal For
FAQs
What is the difference between line-interactive and online UPS?
Line-interactive UPS systems monitor mains voltage and switch to battery backup during power loss or voltage irregularities. They are cost-effective and suitable for most business applications. Online (double-conversion) UPS systems continuously process power through the inverter, offering superior conditioning but consuming more energy. The APC Smart-UPS X is line-interactive, ideal for protecting IT equipment in most office and data centre environments.
How long will the APC Smart-UPS X run at full load?
At maximum load (1200W), the SMX1500RMI2U provides approximately 5 minutes 45 seconds of runtime. This is sufficient for critical systems to shut down safely during extended outages. Extended runtime is available through optional battery modules (SMX039-2) for applications requiring longer backup periods.
Can the SMX1500RMI2U be used in both rack and tower configurations?
Yes. The APC Smart-UPS X is a 2U convertible design that supports both rack mounting (using optional mounting rails like AP9625 or AR201) and tower placement with removable support feet. This flexibility allows deployment in various IT environments without requiring separate units.
What monitoring and management options are available?
The unit includes an RS-232 connector for local monitoring. For network-based monitoring and remote management, install an optional Network Management Card in the SmartSlot (compatible cards: AP9613, AP9620, AP9640, AP9641, AP9643, AP9810). PowerChute Business Edition software enables scheduled and unattended shutdown across networked systems.
What cables and accessories are included?
The SMX1500RMI2U includes an IEC 320 C14 power input cable (1.83 m), RS-232 monitoring cable, USB cable, 2x IEC jumper cables, rack mounting rails, removable feet, and documentation. Software is provided on CD. Network Management Cards and extended batteries are sold separately.
What is the warranty period?
The APC Smart-UPS X SMX1500RMI2U includes a 36-month manufacturer warranty covering defects in materials and workmanship. Extended service options and support plans are available through APC authorised partners.
Is the APC Smart-UPS X suitable for small office environments?
Yes. With 1500VA capacity, eight outlets, and flexible mounting, the SMX1500RMI2U is well-suited for small to mid-sized offices protecting servers, network equipment, and storage systems. Its convertible design and pure sine wave output make it ideal for mixed IT loads.
