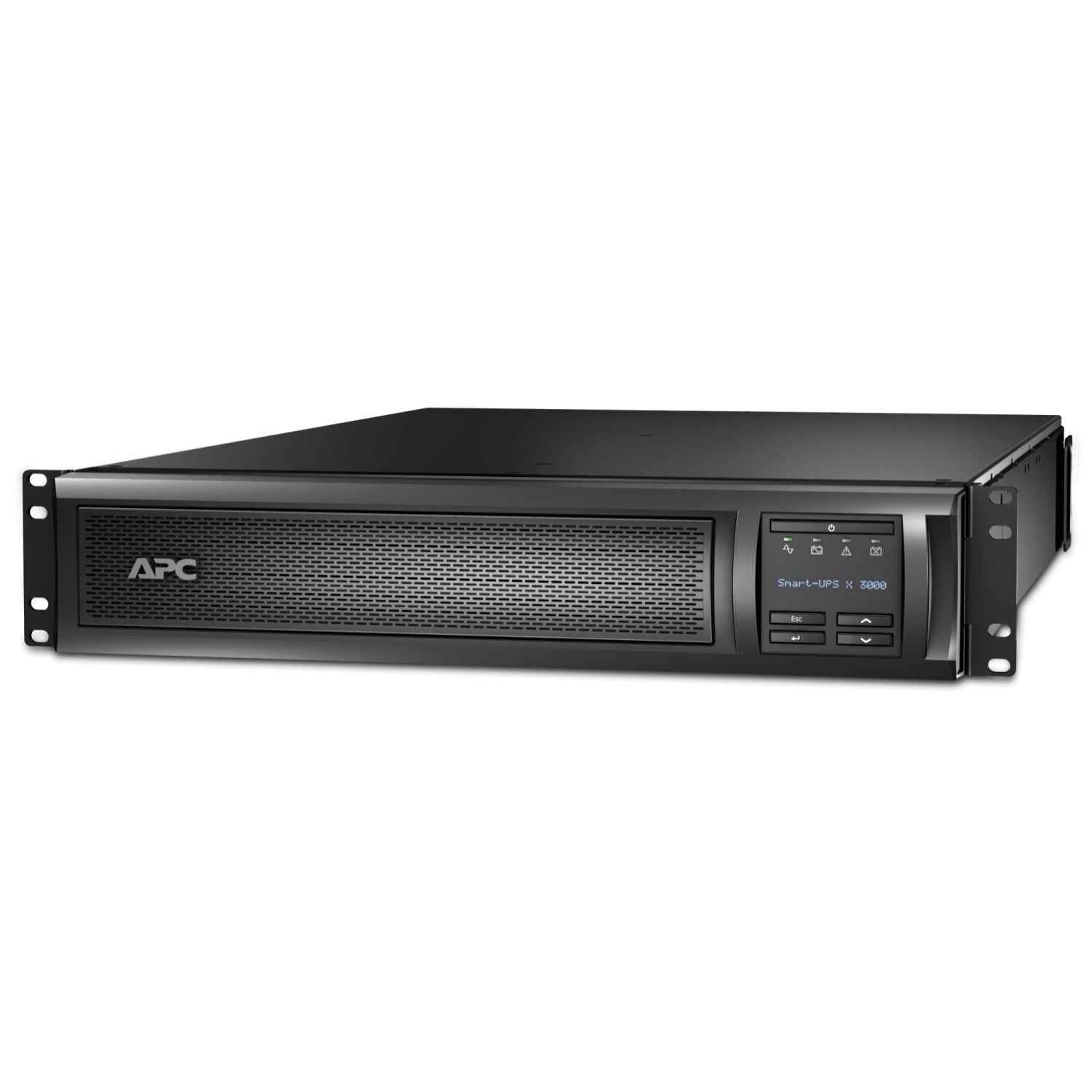

APC Smart-UPS X 3000VA/2700W Line Interactive UPS
APC Smart-UPS X 3000VA/2700W Line Interactive UPS
SKU:UPAPSMX3000RMHV2U
The APC Smart-UPS X 3000VA is a line interactive UPS designed for server and network protection. Featuring 2700W rated power, 9 IEC outlets, and lead-acid battery backup, it delivers reliable power continuity for critical business infrastructure.
Couldn't load pickup availability
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPSMX3000RMHV2U |
| Availability | In Stock |
Overview
- The APC Smart-UPS X 3000VA provides line interactive UPS protection for critical business infrastructure. With 2700W rated capacity and 9 IEC outlets, it delivers immediate backup power during outages whilst continuously conditioning power against surges and voltage fluctuations. The 2U rack/tower convertible design fits standard equipment racks or operates as a standalone tower, making it suitable for diverse deployment scenarios.
This UPS protects servers, network switches, and point-of-sale equipment with intelligent power management. Two switched outlet groups allow prioritised load shedding during extended outages, extending battery runtime for the most critical systems. The SmartSlot architecture enables integration of network management cards for remote monitoring, whilst USB and RS-232 connectivity provide local management options.
Lead-acid battery technology ensures reliable energy storage with proven performance. Compatibility with external battery packs allows runtime extension without replacing the UPS itself, providing a cost-effective path to increased autonomy as business requirements grow.
Specifications
| Input Specifications | {"Main Input Voltage"=>"208V, 230V", "Alternative Input Voltages"=>"220V, 240V", "Input Connection Type"=>"IEC 320 C20", "Input Current"=>"16A at 230V"} |
|---|---|
| Output Specifications | {"Rated Power"=>"2700W", "Rated Capacity"=>"3000VA", "Main Output Voltage"=>"230V", "Alternative Output Voltages"=>"208V, 220V, 240V", "Output Connections"=>"8x IEC 320 C13, 1x IEC 320 C19", "Outlet Groups"=>"2 switched outlet groups"} |
| Physical Specifications | {"Form Factor"=>"2U rack/tower convertible", "Mounting Options"=>"Rack mounted or standalone tower", "Dimensions"=>"2U rack unit", "Weight"=>"Not specified", "Acoustic Level"=>"55 dBA"} |
| Power and Environmental | {"Battery Type"=>"Lead-acid battery", "Heat Dissipation"=>"184 Btu/h", "Operating Temperature"=>"0°C to 40°C", "Storage Temperature"=>"-15°C to 45°C", "Operating Altitude"=>"0 to 10,000 ft", "Humidity (Operating)"=>"0% to 95%", "Humidity (Storage)"=>"0% to 95%"} |
| Connectivity and Management | {"SmartSlot"=>"Yes (network management card compatible)", "USB Cable"=>"Included", "RS-232 Cable"=>"Included", "Management Features"=>"Compatible with APC network management cards (AP9613, AP9620, AP9640, AP9641, AP9643, AP9810)"} |
| Compatibility | {"Replacement Battery"=>"APCRBC117", "Compatible Service Bypass Panels"=>"SBP3000RMHW, SBP3000RMI, SBP5000RMI2U", "Compatible PDUs"=>"AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW", "Compatible Racks"=>"ACF127, AP5717, AP5719, AP5808, AP5816", "Compatible Sensors"=>"AP9335T, AP9335TH"} |
Key Features
Ideal For
FAQs
What is the difference between the APC Smart-UPS X and other APC UPS models?
The Smart-UPS X line offers line interactive UPS technology with enhanced power conditioning, scalable runtime via external battery packs, and advanced management capabilities through SmartSlot integration. It's designed for mid-range business infrastructure requiring reliable power and monitoring.
Can the APC Smart-UPS X 3000VA be mounted in a standard server rack?
Yes. The 2U rack/tower convertible design allows installation in standard 19-inch equipment racks. Rack mounting brackets are included, and it's compatible with APC racks including ACF127, AP5717, AP5719, AP5808, and AP5816.
How long will battery backup last during a complete power outage?
Runtime depends on the connected load and battery capacity. The included lead-acid battery provides baseline protection. Extended runtime is available through compatible external battery packs (such as APCRBC117), allowing you to scale backup duration to your requirements.
Does the UPS include remote monitoring capability?
The Smart-UPS X features SmartSlot for network management card integration and includes USB and RS-232 connectivity for local management. Compatible network management cards (AP9613, AP9620, AP9640, AP9641, AP9643, AP9810) enable remote monitoring and alerting.
What outlets are included on the APC Smart-UPS X 3000VA?
The UPS provides 9 IEC outlets: 8x IEC C13 (standard equipment power) and 1x IEC C19 (higher amperage for switches and servers). Two outlet groups can be switched independently for load management during extended outages.
What is the warranty period?
The APC Smart-UPS X 3000VA includes a 36-month manufacturer warranty covering defects in material and workmanship.
Is the APC Smart-UPS X suitable for international use?
The UPS accepts multiple input voltages (208V, 220V, 230V, 240V) and can output across the same range, making it flexible for various regional power standards. Verify your specific voltage and connection requirements before purchase.
