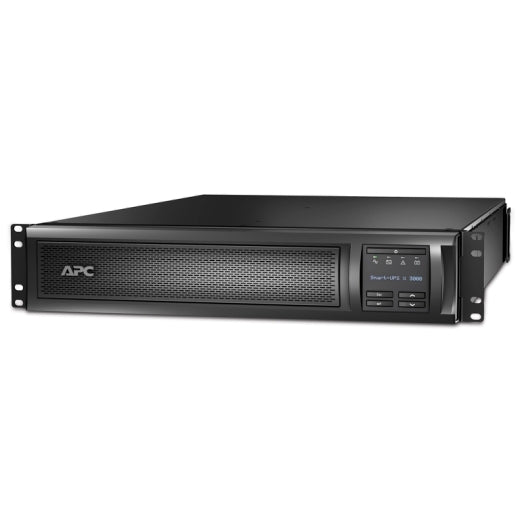

APC Smart-UPS X 3000VA 2700W Line Interactive UPS
APC Smart-UPS X 3000VA 2700W Line Interactive UPS
SKU:UPAPSMX3000RMHV2UNC
The APC Smart-UPS X 3000VA is a line interactive UPS designed for server rooms and network infrastructure. Featuring 3000VA/2700W capacity, 2U rack/tower convertibility, and integrated network management, it delivers reliable backup power and surge protection for critical business equipment.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPSMX3000RMHV2UNC |
| Availability | In Stock |
Overview
- The APC Smart-UPS X 3000VA is a robust line interactive UPS system designed to protect servers, network devices, and business-critical equipment from power outages and electrical fluctuations. With 3000VA/2700W capacity, it provides sufficient backup power for mid-range server environments and networking infrastructure.
This unit combines flexibility with reliability through its 2U rack-mountable design that also functions as a tower unit, making it suitable for various deployment scenarios. The integrated network management card enables remote monitoring and control via web interface or SNMP, allowing IT teams to manage power events across multiple locations.
The Smart-UPS X includes 8 standard outlets and 1 high-current outlet organised into 2 switched outlet groups, providing granular control over powered devices. Support for external battery packs allows organisations to scale runtime based on specific requirements without replacing the entire UPS system.
With auto-sensing input voltage (208–240V range), this UPS adapts to varied Australian electrical environments whilst maintaining stable 230V output. The included temperature probe, management software, and comprehensive cable set simplify installation and integration into existing IT infrastructure.
Specifications
| Power Rating | {"Capacity (VA)"=>"3000 VA", "Capacity (W)"=>"2700 W"} |
|---|---|
| Input | {"Voltage Range"=>"208–240V (208V, 220V, 230V, 240V)", "Input Connector Types"=>"BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P", "Input Current"=>"16A (at 230V)"} |
| Output | {"Voltage"=>"230V (208V, 220V, 240V available)", "Outlets"=>"8x IEC 320 C13 + 1x IEC 320 C19", "Switched Outlet Groups"=>"2"} |
| Physical | {"Form Factor"=>"2U Rack/Tower Convertible", "Cable Length"=>"2.44 m (1x cable supplied)", "Acoustic Level"=>"55 dBA", "Heat Dissipation"=>"184 BTU/h"} |
| Battery | {"Type"=>"Lead-acid", "Replacement Model"=>"APCRBC117"} |
| Environmental | {"Operating Temperature"=>"0–40°C", "Storage Temperature"=>"-15–45°C", "Humidity Range"=>"0–95% (non-condensing)", "Operating Altitude"=>"0–10,000 ft", "Storage Altitude"=>"0–15,240 m"} |
| Management | {"Network Card"=>"Web/SNMP management card included", "Compatible NMC Cards"=>"AP9613, AP9620, AP9640, AP9641, AP9643", "Signalling"=>"RS-232 cable included"} |
| Compatibility | {"Replacement Battery"=>"APCRBC117", "Service Bypass Panels"=>"SBP16KRMI4U, SBP6KRMI2U, SBP3000RMHW, SBP3000RMI, SBP5000RMI2U", "Compatible PDU"=>"AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW", "Compatible Racks"=>"ACF127, AP5717, AP5719, AP5808, AP5816", "Compatible Sensors"=>"AP9335T, AP9335TH", "Mounting Accessories"=>"AP9625, AR201, NBAC0302"} |
| Warranty | 36 months |
| Included Accessories | Software CD, rack mounting rails, RS-232 signalling cable, temperature probe, user manual |
Key Features
Ideal For
FAQs
What is the runtime of the APC Smart-UPS X 3000VA?
Runtime depends on the load connected to the UPS. At full load (2700W), runtime will be shorter; at partial loads, runtime extends significantly. For specific runtime requirements, you can add external battery packs (APCRBC117) to extend backup time. Contact Hyetech Australia for load-specific runtime calculations.
Can the Smart-UPS X 3000VA be mounted in a rack?
Yes. The unit is 2U in height and includes rack mounting rails. It can be deployed in a 19-inch server rack or used as a tower unit. This flexibility allows installation in various environments.
Does this UPS include network management?
Yes. The Smart-UPS X 3000VA includes an integrated network management card (Web/SNMP) that enables remote monitoring, shutdown management, and alert notifications via network. This allows IT teams to manage the UPS without physical access.
What input voltages does this UPS support?
The UPS accepts input voltages from 208–240V and automatically detects the input voltage. It outputs stable 230V regardless of input fluctuations, making it compatible with Australian electrical systems.
How many devices can I connect to this UPS?
The Smart-UPS X 3000VA features 9 outlets: 8x IEC C13 (standard outlets) and 1x IEC C19 (high-current outlet). Devices are organised into 2 switched outlet groups for granular power management.
What happens if I need longer runtime?
The UPS is compatible with external battery packs (model APCRBC117), which can be added to extend backup runtime without replacing the unit. This allows scalable battery capacity as needs grow.
Is replacement battery available?
Yes. The compatible replacement battery is model APCRBC117. Contact Hyetech Australia for availability and pricing.
What is included in the package?
The Smart-UPS X 3000VA includes management software on CD, rack mounting rails, RS-232 signalling cable, temperature probe, and user manual. Power cables are also supplied.
