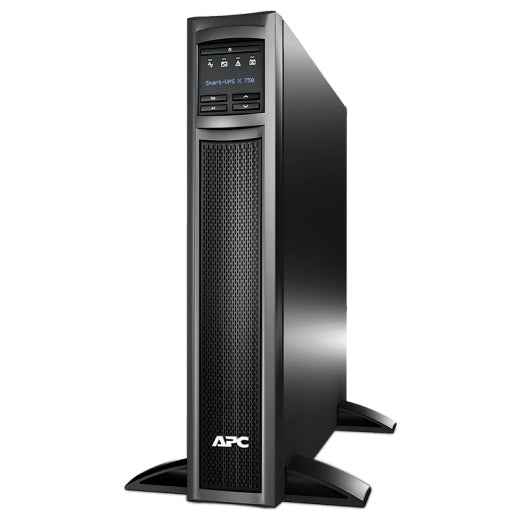

APC Smart-UPS X 750VA/600W Line Interactive UPS
APC Smart-UPS X 750VA/600W Line Interactive UPS
SKU:UPAPC-SMX750I
The APC Smart-UPS X 750VA is a line-interactive UPS designed for critical business applications. Featuring pure sine wave output, rack/tower convertibility, and extended runtime capability, it delivers reliable power protection for IT infrastructure and network equipment.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SMX750I |
| Availability | Out of Stock |
Overview
- The APC Smart-UPS X 750VA is a premium line-interactive UPS offering reliable power protection for critical business infrastructure. With 750VA/600W capacity and pure sine wave output, it safely protects sensitive network equipment, servers, and telecommunications systems from power disruptions, voltage fluctuations, and surges.
Designed for flexibility, the SMX750I operates in either rack-mounted or tower configuration, making it suitable for diverse IT environments. The 8x IEC C13 outlets provide connectivity for multiple devices, whilst the SmartSlot interface enables optional Network Management Cards for centralised monitoring and control across your network infrastructure.
Extendable battery architecture supports up to 10 battery modules, allowing organisations to scale runtime according to specific operational requirements during prolonged outages. The adjustable input voltage range (151–302V) provides automatic voltage regulation, protecting equipment whilst maintaining consistent output power delivery.
Typical deployment scenarios include server rooms, network closets, telecommunications facilities, and branch office environments where reliable, monitored power protection is essential for business continuity.
Specifications
| UPS Type | Line Interactive |
|---|---|
| Capacity (VA) | 750 |
| Capacity (W) | 600 |
| Output Waveform | Pure sine wave |
| Input Voltage (Main) | 230V |
| Input Voltage (Alternative) | 220V, 240V |
| Input Voltage Range | 151–302V adjustable (160–286V alternative range) |
| Output Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto-sensing) |
| Input Connection | IEC 320 C14 |
| Output Connections | 8x IEC 320 C13, 2x IEC jumper cables |
| Rack Units | 2U |
| Form Factor | Rack/tower convertible |
| Battery Type | Lead-acid |
| Battery Expandability | Up to 10 battery modules supported |
| Replacement Battery Model | APCRBC116 |
| Power Cable Length | 1.83 m |
| Acoustic Level | 40 dBA |
| Heat Dissipation | 69 Btu/h |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -15–45 °C |
| Operating Humidity | 0–95 % |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| SmartSlot Interface | Yes |
| Network Management Card Options | AP9613, AP9620, AP9640, AP9641, AP9643, AP9810 |
| Compatible PDUs | AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW |
| Compatible Bypass Panels | SBP16KRMI4U, SBP3000RMI, SBP5000RMI2U, SBP6KRMI2U, BP1500RMI |
| Compatible Sensors | AP9335T, AP9335TH |
| Compatible Mounting Accessories | NBAC0302 |
| Included Accessories | Installation guide, rack mounting brackets, removable support feet, RS-232 cable, software CD, documentation CD |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the difference between line-interactive and standby UPS?
Line-interactive UPS continuously regulates input voltage and switches to battery backup during outages, providing superior protection for sensitive equipment. Standby UPS only activates on power loss. The APC Smart-UPS X line-interactive design offers better voltage stability and faster response times, making it ideal for critical applications.
Can I expand the runtime of this UPS?
Yes. The APC Smart-UPS X 750VA supports up to 10 external battery modules via the SmartSlot interface, allowing you to significantly extend backup runtime during prolonged outages. The replacement battery model APCRBC116 is compatible with this system.
What devices can I connect to this UPS?
The SMX750I features 8x IEC C13 outlets suitable for servers, network switches, routers, telecommunications equipment, and other sensitive IT infrastructure. It produces pure sine wave output, making it safe for all types of computer and network devices.
Does this UPS support remote monitoring?
Yes. The SmartSlot interface supports optional Network Management Cards (NMC) such as the AP9613, AP9620, AP9640, and others, enabling network-based monitoring, management, and unattended shutdown via PowerChute Business Edition software.
What is the warranty coverage?
The APC Smart-UPS X SMX750I comes with a standard 36-month manufacturer warranty. Extended warranty options and battery coverage may be available through APC or your reseller.
Can this UPS be used in both rack and tower configurations?
Yes. The SMX750I is a 2U rack/tower convertible unit, allowing deployment in either a server rack or as a standalone tower system. Removable support feet and rack mounting brackets are included for flexible installation.
What input voltage does this UPS require?
The main input is 230V. It also accepts 220V and 240V inputs. The adjustable input voltage range (151–302V) provides automatic voltage regulation and protection against under/overvoltage conditions without requiring battery backup.
Is this UPS suitable for network environments?
Yes. The SmartSlot interface and compatible Network Management Cards allow integration into networked monitoring systems. Compatible PDUs and bypass panels enable enterprise-grade power distribution and management in data centres and server facilities.
