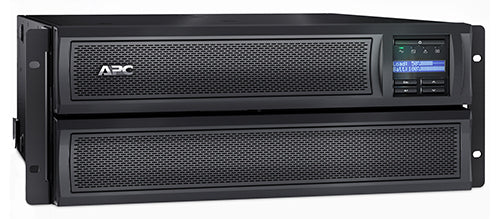

APC Smart-UPS X 2200VA/1980W Line Interactive UPS
APC Smart-UPS X 2200VA/1980W Line Interactive UPS
SKU:UPAPCSMX2200HV
The APC Smart-UPS X 2200VA/1980W is a line interactive UPS designed for server rooms and critical infrastructure. Featuring 12 outlets, rack/tower convertibility, and lead-acid battery backup, it delivers reliable power protection for business-critical equipment.
Couldn't load pickup availability
- See our return policy
- 36 months manufacturer warranty Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCSMX2200HV |
| Availability | In Stock |
Overview
- The APC Smart-UPS X 2200VA/1980W is a line interactive uninterruptible power supply designed to protect critical business equipment from power outages and voltage fluctuations. With 2200VA capacity and 1980W rated output, it delivers sufficient power for servers, networking devices, and point-of-sale systems, ensuring business continuity during mains failures.
The unit combines rack-mountable and tower configurations in a compact 4U form factor, making it suitable for both server rooms and office installations. Its 12 output outlets (8x C13 and 2x C19) accommodate diverse equipment types, whilst the wide input voltage window (140–280V) provides robust protection against unstable mains supplies common in many Australian locations.
Built-in power conditioning continuously regulates voltage and suppresses surges, protecting connected electronics from damage. The SmartSlot interface allows integration of network management cards for remote monitoring and management, enabling IT teams to respond quickly to power events. Lead-acid battery technology provides reliable backup, with options to extend runtime using compatible external battery modules.
With a 36-month manufacturer warranty and comprehensive included accessories such as USB and RS-232 cables, mounting rails, and software CD, the Smart-UPS X offers enterprise-grade reliability for mission-critical applications.
Specifications
| Manufacturer | APC |
|---|---|
| Model | SMX2200HV |
| Product Type | Line Interactive UPS |
| Capacity (VA) | 2200VA |
| Rated Output Power (W) | 1980W |
| Input Voltage (Primary) | 208V, 230V |
| Input Voltage (Alternative) | 220V, 240V |
| Input Voltage Range | 140–280V |
| Output Voltage | 208V, 220V, 230V, 240V |
| Input Connection | IEC 320 C20 |
| Output Outlets | 8x IEC 320 C13, 2x IEC 320 C19 |
| Network Frequency | 50/60Hz ±3Hz (auto-sensing) |
| Battery Type | Lead-acid |
| Form Factor | 4U rack/tower convertible |
| Depth | Short depth |
| Acoustic Level | 55dBA |
| Heat Dissipation | 150 BTU/h |
| Operating Temperature | 0–40°C |
| Storage Temperature | −15–45°C |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| Included Accessories | Software CD, documentation CD, rack mounting rails, RS-232 signalling cable, USB cable, user manual |
| Supply Cable | 2.0m (1x cable) |
| Warranty | 36 months manufacturer warranty |
| Compatible Replacement Battery | APCRBC143 |
| SmartSlot Compatibility | Network management cards (AP9613, AP9620, AP9640, AP9641, AP9643, AP9810) |
| Sensor Compatibility | AP9335T, AP9335TH |
| PDU Compatibility | AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW |
Key Features
Ideal For
FAQs
What is the runtime of the APC Smart-UPS X 2200VA?
Runtime varies depending on the connected load and battery age. Refer to the manufacturer's runtime charts or contact Hyetech Australia for specific runtime estimates based on your equipment configuration. Extended runtime is available using compatible external battery packs.
Can the APC Smart-UPS X be used in tower and rack configurations?
Yes, the Smart-UPS X 2200VA is a 4U rack/tower convertible unit. It can be mounted in a standard 19-inch rack or placed vertically on the floor beside equipment, making it flexible for different installation environments.
What voltage input does this UPS require?
The UPS accepts input voltages of 208V, 230V, 220V, and 240V, with an operating window of 140–280V. It automatically detects 50 or 60Hz frequency. This wide range suits Australian power conditions and international equipment.
Is remote monitoring available for this UPS?
Yes, the Smart-UPS X features a SmartSlot interface that supports optional network management cards (such as AP9613, AP9620, AP9640, AP9641, AP9643, and AP9810), enabling remote monitoring and management via network connection.
How many devices can be connected to the APC Smart-UPS X 2200VA?
The UPS provides 12 outlets: 8x IEC C13 (standard) and 2x IEC C19 (high-current). This allows simultaneous protection of multiple servers, switches, networking devices, and other IT equipment. Outlet load management is recommended to balance capacity.
What is included in the package?
The Smart-UPS X includes a 2.0m supply cable, software CD, documentation CD, rack mounting support rails, RS-232 signalling cable, USB cable, and user manual. Additional accessories such as PDUs and monitoring sensors are available separately.
What type of battery does this UPS use?
The Smart-UPS X 2200VA uses a lead-acid battery. The replacement battery model is APCRBC143. Battery life typically ranges from 3–5 years depending on operating temperature and charge cycles.
Is there a warranty on this UPS?
Yes, the APC Smart-UPS X 2200VA includes a 36-month manufacturer warranty covering defects in materials and workmanship. Warranty details and support are available from Hyetech Australia.
