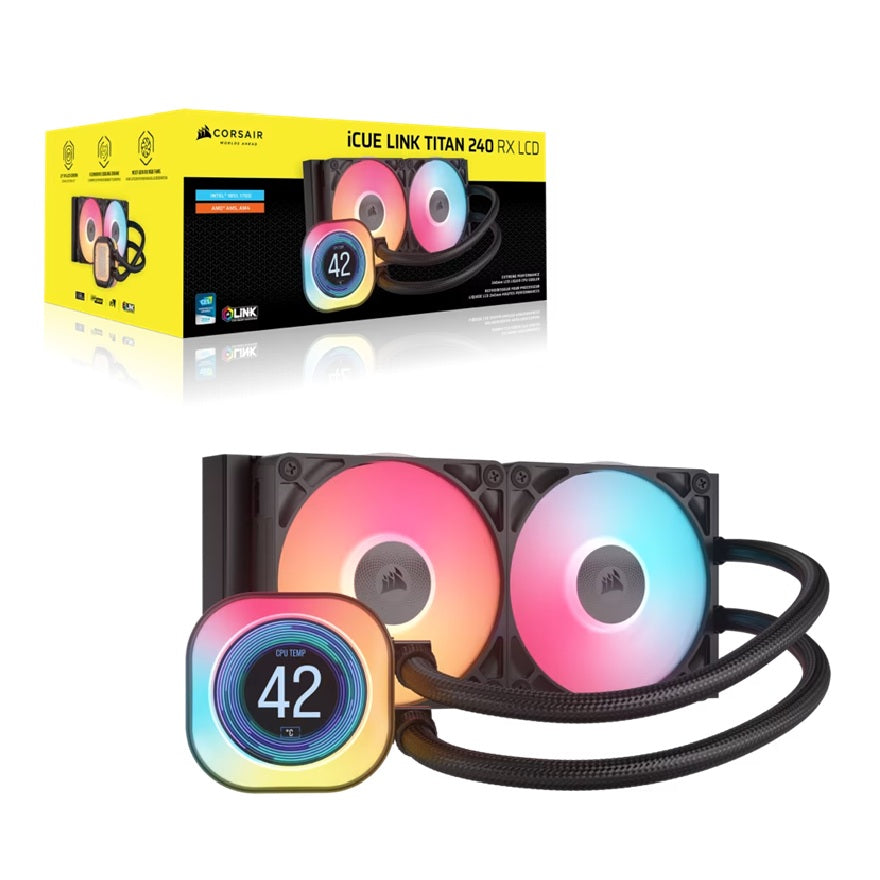

Corsair iCUE LINK TITAN 240 RX LCD Liquid CPU Cooler
Corsair iCUE LINK TITAN 240 RX LCD Liquid CPU Cooler
SKU:CFCW-TITAN240RXLCD-BK
The Corsair iCUE LINK TITAN 240 RX LCD is a high-performance all-in-one liquid CPU cooler designed for demanding workstations and gaming systems. Featuring a 2.1" customisable LCD display, FlowDrive three-phase pump, and dual RX120 RGB fans, it delivers exceptional cooling efficiency with ultra-quiet operation for Intel and AMD processors.
Couldn't load pickup availability
- See our return policy
- 6 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFCW-TITAN240RXLCD-BK |
| Availability | In Stock |
Overview
- The Corsair iCUE LINK TITAN 240 RX LCD is a flagship all-in-one liquid CPU cooler engineered for systems that demand both performance and visual appeal. Built around Corsair's proprietary FlowDrive cooling engine, it combines a three-phase pump with precision-engineered cold plate geometry to deliver consistently low CPU temperatures while maintaining whisper-quiet acoustics across all operating speeds.
The standout feature is the 2.1" IPS LCD pump cap, fully customisable through iCUE software. Display system temperatures, animated GIFs, custom graphics, or pre-defined data overlays—all with 16.7 million colour options and direct GIPHY integration. This transforms the cooler from a functional component into a visual centrepiece of your build.
With dual RX120 RGB fans, 44 individually addressable LEDs, and a modular CapSwap design, the TITAN 240 RX LCD offers extensive customisation without compromise. Compatibility spans modern Intel (LGA 1851, LGA 1700) and AMD (AM5, AM4) socket types, making it suitable for current-generation high-end processors. The 6-year warranty provides long-term protection for your investment.
Specifications
| Brand | Corsair |
|---|---|
| Model | iCUE LINK TITAN 240 RX LCD |
| Product Type | All-in-One Liquid CPU Cooler |
| Radiator Size | 240mm |
| Radiator Material | Aluminium |
| Radiator Dimensions | 277mm × 120mm × 27mm |
| Cold Plate Material | Copper |
| Number of Fans | 2 |
| Fan Model | RX120 RGB |
| Fan Dimensions | 120mm × 25mm |
| Fan Speed | 300–2100 RPM ±10% |
| Fan Airflow | 10.4–73.5 CFM |
| Fan Static Pressure | 0.12–4.33 mm-H₂O |
| Noise Level | 10–36 dBA |
| Tubing Material | Black sleeved low-permeation rubber |
| Tubing Length | 400mm |
| Pump Motor | Three-phase FlowDrive engine |
| Fan Control Method | Digital (iCUE software) |
| PWM Support | No |
| Lighting | RGB (44 LEDs on pump/cap + 8 per fan) |
| LCD Display | 2.1" IPS, 480×480 resolution, customisable via iCUE |
| Socket Compatibility | Intel LGA 1851, Intel LGA 1700, AMD AM5, AMD AM4 |
| Intel Processor Support | Core i9, Core i7, Core i5, Core i3, Pentium, Celeron |
| AMD Processor Support | Ryzen series |
| Modular Design | CapSwap tool-free pump cap swap |
| Dimensions (Overall) | 275mm (L) × 125mm (W) × 125mm (H) |
| Weight | 2.074 kg |
| Warranty | 6 years |
Key Features
Ideal For
FAQs
What socket types does the Corsair TITAN 240 RX LCD support?
The cooler is compatible with Intel LGA 1851, LGA 1700, AMD AM5, and AMD AM4 sockets. It supports Intel Core i9, i7, i5, i3, Pentium, and Celeron processors, as well as AMD Ryzen series processors.
Can I customise the LCD display?
Yes. The 2.1" IPS LCD screen is fully customisable via Corsair's iCUE software. You can display system temperatures, select from 16.7 million custom colours, choose pre-defined animations, or use integrated GIPHY to display your favourite memes and GIFs.
How quiet is this cooler?
The TITAN 240 RX LCD operates between 10 and 36 dBA depending on fan speed. The FlowDrive three-phase pump motor is engineered for exceptionally low noise without sacrificing thermal performance.
What is CapSwap and how does it work?
CapSwap is Corsair's modular pump cap design that allows you to swap the default cap with other compatible CapSwap modules in seconds without tools. This lets you change the cooler's look or functionality almost like upgrading to a new cooler (additional caps sold separately).
What is the warranty period?
The Corsair iCUE LINK TITAN 240 RX LCD comes with a 6-year cooling warranty, providing comprehensive protection for your investment.
Does this cooler require PWM control?
No. The TITAN 240 RX LCD uses digital fan control via iCUE software rather than traditional PWM. This provides precise speed and thermal management through the iCUE ecosystem.
How much airflow does this cooler deliver?
The dual RX120 RGB fans deliver between 10.4 and 73.5 CFM depending on speed setting, with static pressure ranging from 0.12 to 4.33 mm-H₂O for efficient radiator cooling.
