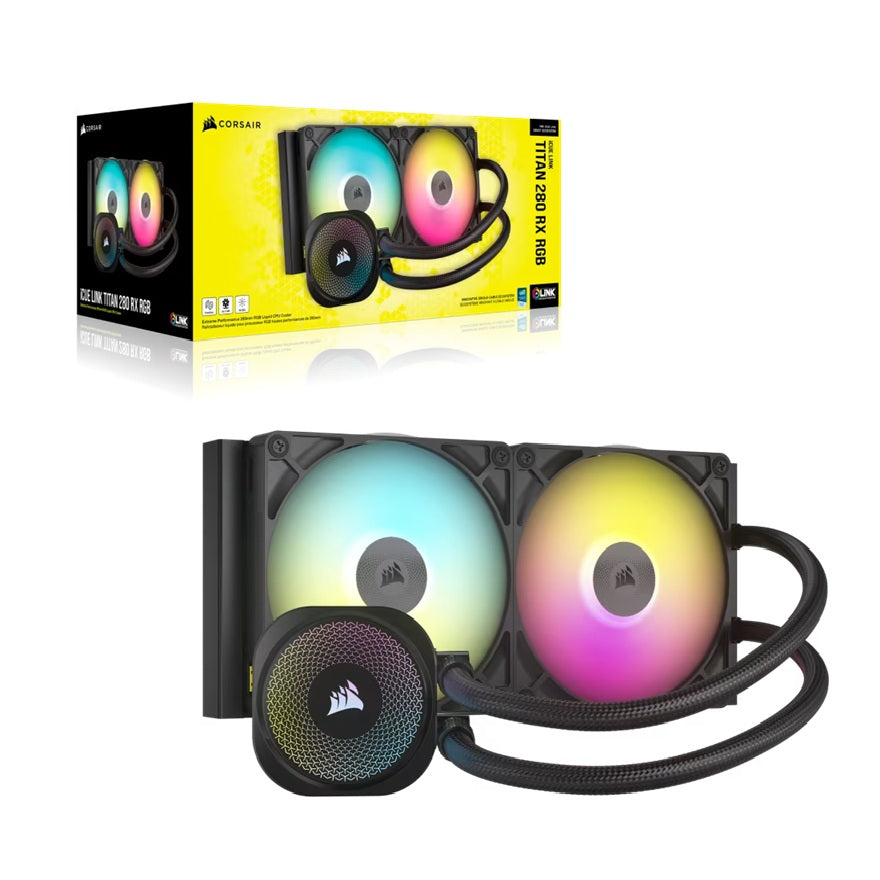

Corsair iCUE LINK TITAN 280 RX RGB AIO Liquid CPU Cooler
Corsair iCUE LINK TITAN 280 RX RGB AIO Liquid CPU Cooler
SKU:CFCW-TITAN280RXRGB
The Corsair iCUE LINK TITAN 280 RX RGB is an all-in-one liquid CPU cooler designed for high-performance gaming and workstation builds. Featuring a FlowDrive cooling engine, two RX140 RGB fans, and tool-free CapSwap modular design, it delivers peak thermal efficiency with ultra-quiet operation for Intel and AMD processors.
Couldn't load pickup availability
- See our return policy
- 6 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFCW-TITAN280RXRGB |
| Availability | In Stock |
Overview
- The Corsair iCUE LINK TITAN 280 RX RGB is a premium all-in-one liquid cooler built for high-performance systems that demand superior thermal management and visual customisation. Its proprietary FlowDrive cooling engine combines a three-phase motor, precision-engineered cold plate, and two high-airflow RX140 fans to deliver consistently lower CPU temperatures whilst maintaining impressively quiet acoustics across the full 300–1700 RPM speed range.
Designed with modular flexibility at its core, the TITAN 280 RX features a tool-free CapSwap system that lets you swap the pump cap in seconds—allowing complete aesthetic and functional customisation without tools or disassembly. The integrated iCUE LINK connectivity simplifies RGB synchronisation across your entire system, whilst the 28 programmable LEDs create dynamic lighting effects.
Installation is straightforward, with included mounting brackets and backplates supporting a wide range of modern Intel (LGA 1851/1700) and AMD (AM5/AM4) processors. The 400mm black sleeved tubing offers excellent cable management flexibility, and the six-year warranty provides confidence in long-term reliability and performance.
Specifications
| Radiator Size | 280mm |
|---|---|
| Radiator Material | Aluminium |
| Radiator Dimensions | 317mm × 140mm × 27mm |
| Number of Fans | 2 |
| Fan Model | RX140 RGB |
| Fan Dimensions | 140mm × 25mm |
| Fan Speed Range | 300–1700 RPM (±10%) |
| Fan Airflow | 17.9–94.7 CFM |
| Fan Static Pressure | 0.15–3.75mm-H2O |
| Cold Plate Material | Copper |
| Pump Design | FlowDrive three-phase motor |
| Tubing Material | Black sleeved low-permeation rubber |
| Tubing Length | 400mm |
| RGB Lighting | 28 total LEDs (20 on pump, 8 per fan) |
| Lighting Control | iCUE LINK digital control |
| Fan Control Method | Digital |
| PWM Support | No |
| Socket Support | Intel LGA 1851, Intel LGA 1700, AMD AM5, AMD AM4 |
| Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
| AMD Processors Supported | Ryzen |
| Product Dimensions | 312mm (L) × 137mm (W) × 145mm (H) |
| Weight | 2.275 kg |
| CapSwap Compatibility | Tool-free modular pump cap system (modules sold separately) |
| Warranty | 6 years |
Key Features
Ideal For
FAQs
Which Intel and AMD sockets does the TITAN 280 RX RGB support?
The cooler supports Intel LGA 1851, Intel LGA 1700, AMD AM5, and AMD AM4 sockets. Mounting brackets and backplates for all these socket types are included in the box.
What is CapSwap and how does it work?
CapSwap is Corsair's modular pump cap design that allows you to swap the default cap with alternative modules in seconds without tools. This lets you change the cooler's appearance and functionality without full disassembly.
Does this cooler require PWM support?
No, the TITAN 280 RX uses digital fan control and does not require PWM support. Fan speed is managed through iCUE LINK connectivity.
Can I control the RGB lighting independently from the fans?
Yes, the integrated iCUE LINK connectivity allows independent control of the 28 RGB LEDs across the pump and fans, enabling custom lighting synchronisation with your system.
What tubing length is included and what is its material?
The cooler includes 400mm of black sleeved low-permeation rubber tubing, providing flexible routing for most mid-tower cases whilst minimising fluid loss over time.
What is the warranty period?
The Corsair iCUE LINK TITAN 280 RX RGB includes a six-year manufacturer warranty covering the cooler and all components.
What are the noise levels at different fan speeds?
The cooler is designed for ultra-quiet operation across its full speed range of 300–1700 RPM, with the FlowDrive pump and RX140 fans engineered to minimise noise whilst maintaining peak thermal performance.
Is this compatible with compact case builds?
The 280mm radiator requires a case with adequate space for a 280mm radiator. Radiator dimensions are 317mm × 140mm × 27mm. Confirm your case compatibility before purchase.
