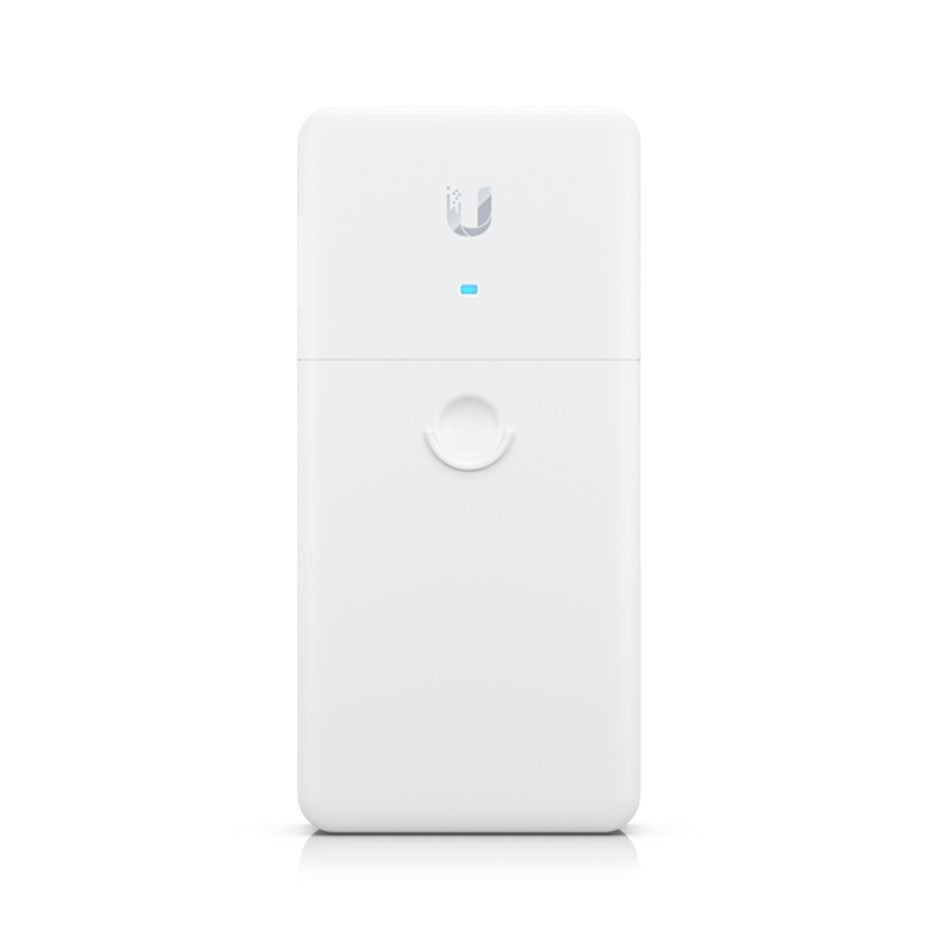

Ubiquiti UACC-LRE Long-Range Ethernet Repeater
Ubiquiti UACC-LRE Long-Range Ethernet Repeater
SKU:NHU-UACC-LRE
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UACC-LRE |
| Availability | In Stock |
Overview
- The Ubiquiti UACC-LRE is a Gigabit Ethernet repeater that overcomes the distance limitations of standard PoE switches, allowing you to extend network connections up to 1 km away from your primary infrastructure. By receiving PoE or PoE+ power and providing passthrough PoE output, the repeater eliminates the need for additional power supplies at distant endpoints.
Multiple UACC-LRE units can be daisy-chained together, making it ideal for campus networks, outdoor surveillance systems, and multi-building deployments. The unit is built for reliability with 10kA+ surge protection and extreme temperature tolerance, ensuring stable operation in harsh outdoor environments.
Designed for UniFi ecosystems, the UACC-LRE simplifies network expansion by maintaining consistent power delivery to devices like access points and IP cameras whilst maintaining network integrity over extended distances. It represents a cost-effective alternative to running long cable runs or installing additional PoE infrastructure.
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UACC-LRE |
| Product Type | Long-Range Ethernet Repeater |
| Ports | 2x Gigabit RJ45 (PoE/PoE+ input, Passthrough PoE output) |
| Maximum Range | 1 km (daisy-chained configuration) |
| Chaining Capability | Multiple units can be daisy-chained |
| Repeater Increment | 100 m spacing recommended |
| Surge Protection | 10kA+ |
| Operating Temperature | -40°C to 80°C |
| Power Method | PoE/PoE+ via pins 1, 2+; 3, 6- |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
How far can the UACC-LRE extend my network?
The UACC-LRE can extend connections up to 1 km when daisy-chained with other units. In a tested deployment, 9 daisy-chained units connected an endpoint device using 10 segments of 100 m cabling. Repeaters should be placed in 100 m increments for optimal performance.
Can I chain multiple UACC-LRE repeaters together?
Yes, multiple UACC-LRE units can be chained together to create longer-range connections. Each unit receives PoE/PoE+ power and provides passthrough PoE output to the next unit in the chain.
What is passthrough PoE output?
Passthrough PoE output allows the repeater to forward power from its input port to its output port, eliminating the need for a separate power supply at the remote device. This simplifies installation and reduces infrastructure costs.
Does the UACC-LRE work with non-UniFi PoE switches?
The UACC-LRE is powered using pins 1, 2+ and 3, 6-, which may not be supported by certain third-party switches. Ubiquiti recommends using a UniFi PoE+ switch for reliable operation.
Is the UACC-LRE suitable for outdoor installation?
Yes, the UACC-LRE is designed for indoor and outdoor use. It features 10kA+ surge protection and operates reliably in extreme temperatures from -40°C to 80°C, making it suitable for harsh outdoor environments.
What devices can I connect to the UACC-LRE?
The UACC-LRE can extend connections to any PoE-powered device, including UniFi access points, IP cameras, and other network equipment that support PoE/PoE+ power delivery.
