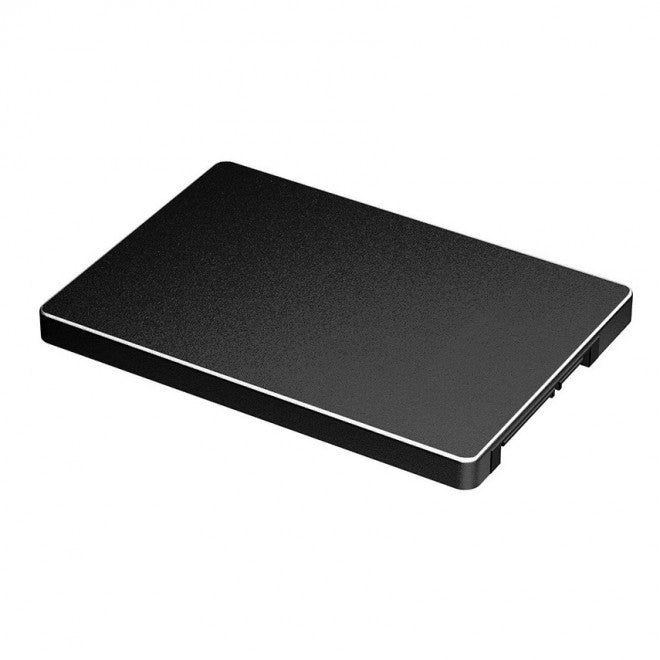

Simplecom SA102 M.2 to 2.5" SATA Converter Enclosure
Simplecom SA102 M.2 to 2.5" SATA Converter Enclosure
SKU:HXSI-SA102
The Simplecom SA102 is an M.2 to SATA converter enclosure that transforms your M.2 NGFF SSD into a standard 2.5" SATA drive. Featuring durable aluminium construction, support for multiple M.2 form factors, and effective heat dissipation, it enables seamless integration with legacy SATA systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SA102 |
| Availability | In Stock |
Overview
- The Simplecom SA102 is a practical M.2 to SATA converter enclosure that solves compatibility challenges when working with older systems. If you have an M.2 NGFF SATA drive but need to install it in a device with only 2.5" SATA bays, or want to use it with a standard USB enclosure, this adapter bridges that gap seamlessly.
Built from durable aluminium, the SA102 provides effective heat dissipation to keep your drive running cool during extended use. The compact 7mm profile matches the thickness of standard 2.5" laptop drives, ensuring it fits into existing mounting spaces without modification. Importantly, the conversion is purely mechanical—your drive's speed and performance characteristics remain unchanged.
Compatibility is straightforward but requires verification: the SA102 supports M.2 NGFF SATA drives with B Key or B+M Key connectors in three common sizes (2242, 2260, and 2280). It does not support M Key or NVMe drives. Before purchasing, confirm your M.2 SSD uses SATA protocol rather than PCI-E, as this determines whether the adapter will work with your specific drive.
Specifications
| Brand | Simplecom |
|---|---|
| Model | SA102 |
| Product Type | M.2 NGFF to 2.5" SATA Converter Enclosure |
| Interface | M.2 NGFF (SATA) to 2.5" SATA |
| Supported M.2 Key Types | B Key, B+M Key |
| Supported M.2 Form Factors | 2242 (42 x 22mm), 2260 (60 x 22mm), 2280 (80 x 22mm) |
| Output Form Factor | 2.5" SATA (7mm height) |
| Casing Material | Aluminium |
| Dimensions | 100 x 70 x 7mm |
| Performance | No change to drive speed or properties |
| Warranty | 12 months |
| Not Compatible With | M Key only SSDs, NVMe M.2 drives, PCI-E M.2 drives |
Key Features
Ideal For
FAQs
Will this converter work with my M.2 NVMe SSD?
No. The SA102 only supports M.2 NGFF SATA drives with B Key or B+M Key connectors. It is not compatible with NVMe or M Key only SSDs. Before purchasing, confirm your drive uses SATA protocol by checking the manufacturer's specifications.
Does the converter affect drive performance?
No. The SA102 is purely a form-factor adapter. Your drive's speed and performance characteristics remain unchanged. It only converts the physical interface from M.2 to 2.5" SATA.
Can I use this enclosure with a USB adapter?
Yes. Once converted to 2.5" SATA, your M.2 SSD can be installed into any standard 2.5" SATA to USB enclosure, allowing use as portable external storage.
What M.2 sizes does this support?
The SA102 supports three common M.2 form factors: 2242 (42mm length), 2260 (60mm length), and 2280 (80mm length). All must be SATA type with B or B+M key connectors.
How do I know if my M.2 SSD is SATA or NVMe?
Check your SSD's product specifications or the manufacturer's website. SATA M.2 drives use the B Key or B+M Key connector. NVMe drives use the M Key connector. The SA102 only works with SATA models.
Is the aluminium casing effective at cooling the drive?
Yes. The aluminium construction provides effective heat dissipation during operation, helping keep your M.2 SSD within safe operating temperatures.
Will this fit in a standard 2.5" drive bay?
Yes. The SA102 is 7mm thick, matching the standard height of 2.5" laptop drives, so it fits into existing 2.5" SATA mounting spaces without modification.
