Simplecom SD511 M.2 SSD Docking Station
Simplecom SD511 M.2 SSD Docking Station
SKU:HXSI-SD511
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SD511 |
| Availability | In Stock |
Overview

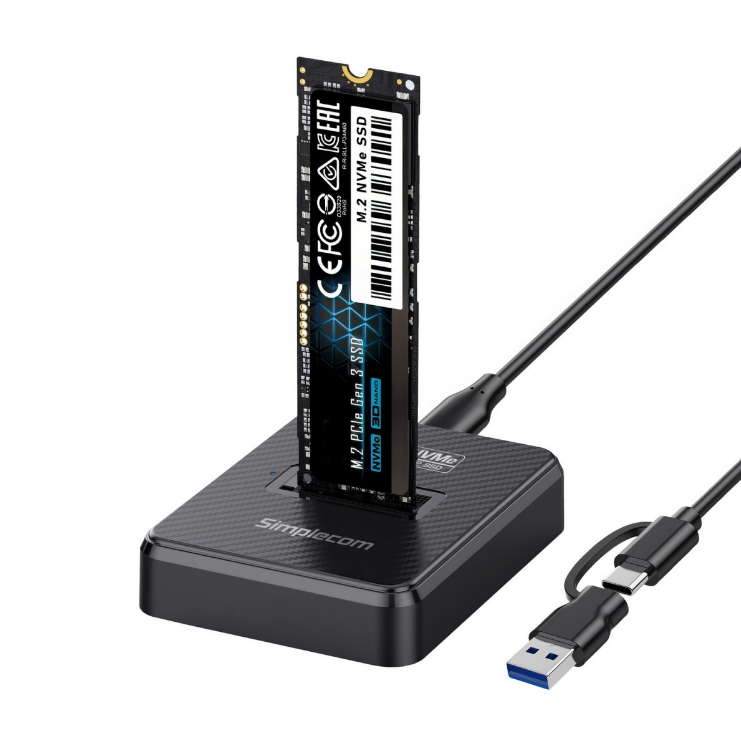

- The Simplecom SD511 is a high-speed docking station designed to simplify M.2 SSD access and management. Supporting both NVMe and SATA protocols, it eliminates the need for internal installation and provides instant external access to M.2 drives via USB.
With USB 3.2 Gen 2 technology, the SD511 delivers transfer speeds up to 10Gbps for NVMe drives and 6Gbps for SATA drives, enabling efficient data transfers and system migrations. Its compact design and plug-and-play operation make it ideal for IT professionals, system administrators, and businesses requiring flexible SSD connectivity.
The included USB-C and USB-A combo cable provides compatibility across modern computers and devices. UASP and TRIM support ensure optimised performance and extended drive lifespan, while the universal M.2 compatibility covers all standard sizes from 2230 to 22100.
Specifications
| model | SD511 |
|---|---|
| brand | Simplecom |
| product_type | M.2 SSD Docking Station |
| interface | USB-C (USB 3.2 Gen 2) |
| transfer_rate_nvme | Up to 10Gbps |
| transfer_rate_sata | Up to 6Gbps |
| compatible_m2_protocols | NVMe and SATA |
| compatible_m2_keys | M Key, B+M Key |
| compatible_m2_sizes | 2230, 2242, 2260, 2280, 22100 |
| material | ABS Plastic |
| dimensions | 66 x 51 x 13 mm (L x W x H) |
| weight | 40 g |
| power_source | USB powered (no external power required) |
| supported_features | UASP, TRIM command |
| operating_system_support | Windows 7 and later, macOS 10.8 and later, Linux |
| included_accessories | USB-C and USB-A combo cable, user manual |
| warranty | 12 months |
Key Features
Ideal For
FAQs
Does the SD511 support both NVMe and SATA M.2 SSDs?
Yes, the SD511 supports both NVMe and SATA M.2 SSDs. It is compatible with M Key and B+M Key configurations. However, SATA M.2 drives are limited to 6Gbps transfer speeds, whilst NVMe drives can achieve up to 10Gbps.
What M.2 sizes are compatible with the SD511?
The SD511 is compatible with M.2 drives in the following sizes: 2230, 2242, 2260, 2280, and 22100.
Do I need to install drivers to use the SD511?
No, the SD511 features plug-and-play operation and requires no driver installation. It will work immediately when connected to your computer.
What cables are included with the SD511?
The SD511 comes with a USB-C and USB-A combo cable, providing compatibility with both modern USB-C ports and traditional USB-A ports on various devices.
Does the SD511 require external power?
No, the SD511 is fully USB powered and does not require any external power adapters or connections.
What are UASP and TRIM, and why do they matter?
UASP (USB Attached SCSI Protocol) enables faster data transfer speeds, whilst TRIM optimises SSD performance and extends drive lifespan by improving data writing efficiency.
Is the SD511 suitable for data migration and system cloning?
Yes, the SD511's high transfer speeds and dual protocol support make it ideal for cloning and migrating data between M.2 SSDs, whether in system builds or data centre environments.
