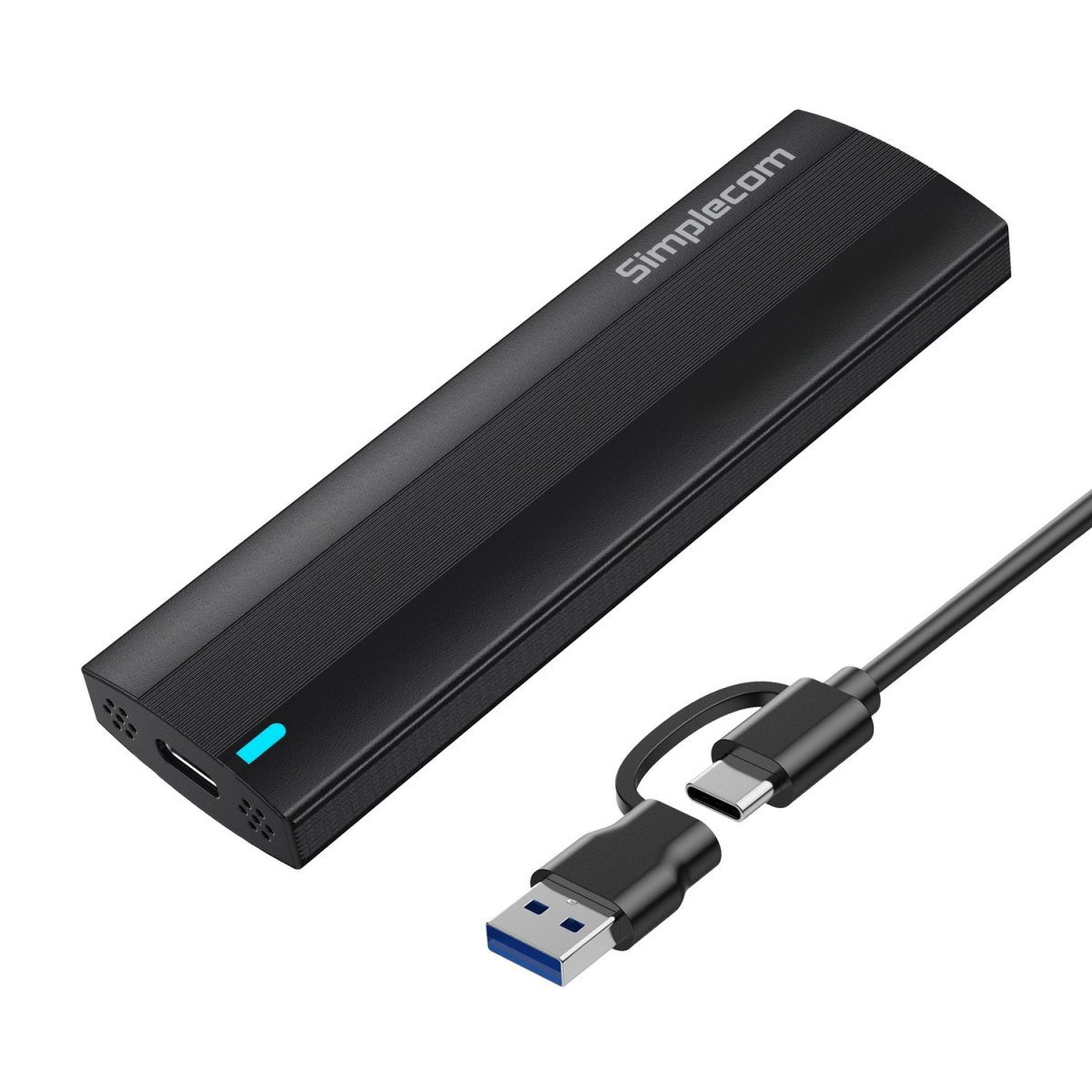

Simplecom SE517 Dual Protocol M.2 SSD Enclosure USB 3.2
Simplecom SE517 Dual Protocol M.2 SSD Enclosure USB 3.2
SKU:HXSI-SE517
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SE517 |
| Availability | In Stock |
Overview
- The Simplecom SE517 is a versatile M.2 SSD enclosure that bridges the gap between internal storage upgrades and portable external drives. Supporting both NVMe and SATA protocols, it accommodates a wide range of M.2 drives (2230, 2242, 2260, and 2280) without requiring proprietary tools or software—simply insert the drive and connect via USB-C.
Built for performance, the SE517 delivers up to 10Gbps transfer speeds on NVMe drives using the USB 3.2 Gen 2 interface, making it suitable for professionals handling large datasets, video production, and system migrations. The aluminium housing provides durability and effective heat management for extended operation.
With plug-and-play functionality and support for UASP and TRIM technologies, the enclosure ensures faster data transfer and extended SSD lifespan. The included USB-C to USB-A combo cable provides immediate compatibility with both modern and legacy systems, while the silicone thermal pad optimises temperature control during intensive use.
Specifications
| Model | SE517 |
|---|---|
| Brand | Simplecom |
| Product Type | M.2 SSD Enclosure |
| Host Interface | USB-C (USB 3.2 Gen 2) |
| Transfer Rate (NVMe) | Up to 10Gbps |
| Transfer Rate (SATA) | Up to 6Gbps |
| Supported M.2 Protocols | NVMe and SATA |
| Supported M.2 Key Types | M Key and B+M Key |
| Supported M.2 Sizes | 2230, 2242, 2260, 2280 |
| Enclosure Material | Aluminium and ABS plastic |
| Dimensions | 109 × 33 × 12 mm (L × W × H) |
| Operating Temperature Range | 0°C to 70°C |
| Operating Humidity Range | 10% to 85% RH |
| Compatible Operating Systems | Windows 7 or later; macOS 10.8 or later |
| Additional Features | Tool-free design, UASP support, TRIM support, LED indicator |
| Package Contents | SE517 enclosure, USB-C + USB-A combo cable, silicone thermal pad |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the SE517 work with both NVMe and SATA M.2 SSDs?
Yes, the SE517 supports both NVMe and SATA M.2 SSDs with M Key or B+M Key formats. However, SATA drives are limited to 6Gbps transfer speeds, which is the maximum bandwidth of the SATA interface.
What M.2 drive sizes are compatible?
The SE517 supports M.2 drives in 2230, 2242, 2260, and 2280 sizes, accommodating most modern SSDs.
Do I need any tools or software to install the drive?
No. The SE517 features a tool-free design for quick installation and plug-and-play operation. No driver installation is required for Windows 7+ or macOS 10.8+.
What cables and accessories are included?
The package includes a USB-C to USB-A combo cable for compatibility with both USB-C and USB-A ports, plus a silicone thermal pad for heat management.
What are the maximum transfer speeds?
NVMe drives achieve up to 10Gbps via USB 3.2 Gen 2. SATA drives are limited to 6Gbps due to the SATA interface specification.
Will the enclosure get too hot during extended use?
The aluminium housing provides excellent heat dissipation. The included silicone thermal pad further optimises temperature control during intensive operations.
Is the SE517 compatible with my Mac or older Windows systems?
Yes. The SE517 supports Windows 7 or later and macOS 10.8 or later, ensuring broad compatibility across modern and legacy systems.
