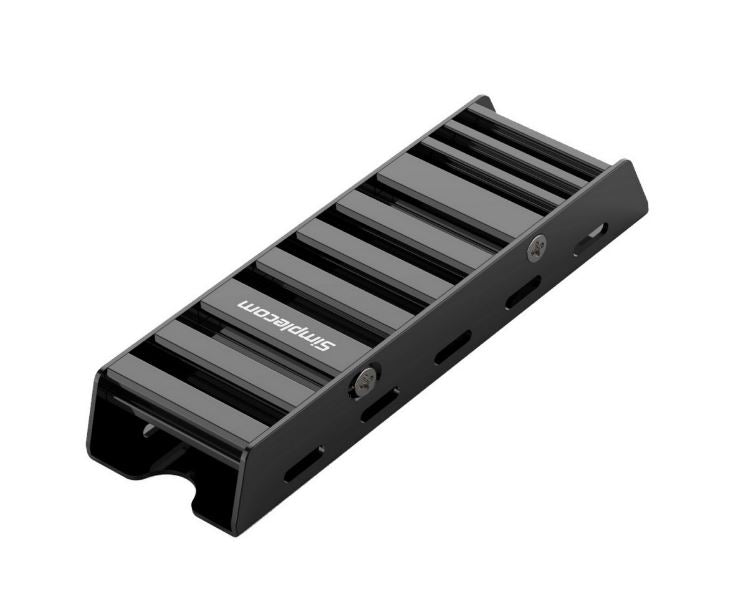

Simplecom SA110 M.2 SSD Aluminum Heatsink
Simplecom SA110 M.2 SSD Aluminum Heatsink
SKU:HXSI-SA110
The Simplecom SA110 is an aluminium M.2 SSD heatsink designed for M.2 2280 drives in desktop computers and PS5 consoles. Featuring dual thermal silicone pads, low-profile 11mm design, and proven 10–20°C temperature reduction, it delivers reliable thermal management and sustained SSD performance.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SA110 |
| Availability | In Stock |
Overview
- The Simplecom SA110 is a passive aluminium heatsink purpose-built for M.2 2280 SSDs in both consumer and gaming environments. By reducing operating temperatures by 10–20°C, it prevents thermal throttling and maintains full SSD performance during intensive use.
The heatsink features a grooved aluminium design that maximises surface area for efficient heat dissipation. Two pre-installed silicone thermal pads ensure optimal contact between the drive and heatsink, eliminating the need for additional thermal material.
With a slim 11mm profile, it integrates seamlessly into PS5 consoles without interfering with internal components, and works equally well in desktop systems with tight thermal budgets. The package includes all necessary mounting hardware and installation tools for both platforms.
Specifications
| Model | SA110 |
|---|---|
| Material | Aluminium |
| SSD Compatibility | M.2 2280 (single-sided) |
| System Compatibility | Desktop Computer, PlayStation 5 |
| Dimensions | 75(L) × 24(W) × 11(H) mm |
| Weight | 26g (heatsink only) |
| Operating Temperature | 0–70°C |
| Operating Humidity | 20–90% RH |
| Thermal Pads Included | 2 |
| Warranty | 12 months |
| Included Accessories | Heatsink, thermal pads (×2), heatsink screws (×4), PS5 mounting screw, desktop PC mounting screw, screwdriver, user manual |
Key Features
Ideal For
FAQs
Will the Simplecom SA110 fit my PS5?
Yes. The SA110 has a low-profile 11mm design specifically compatible with PS5 consoles. It includes dedicated PS5 mounting hardware and does not interfere with internal components.
What temperature reduction should I expect?
The SA110 typically reduces SSD temperatures by 10–20°C depending on ambient temperature, workload, and airflow. Actual results vary by environment.
Is this heatsink compatible with double-sided M.2 SSDs?
No. The SA110 is designed for single-sided M.2 2280 SSDs only. Double-sided drives may not fit correctly.
Are thermal pads included?
Yes. Two silicone thermal pads are pre-installed on the heatsink, providing immediate thermal conductivity without additional purchases.
Can I use this heatsink on a desktop computer?
Yes. The SA110 works with both PS5 consoles and desktop computers. Desktop-specific mounting hardware is included.
Do I need to replace the thermal pads?
The included thermal pads are designed for long-term use. Replacement is generally not necessary unless damaged or degraded over extended periods.
What tools do I need for installation?
A screwdriver is included in the package. No additional tools are required for installation on PS5 or desktop systems.
