Simplecom SD562 Dual-Bay M.2 SSD RAID Enclosure
Simplecom SD562 Dual-Bay M.2 SSD RAID Enclosure
SKU:HXSI-SD562

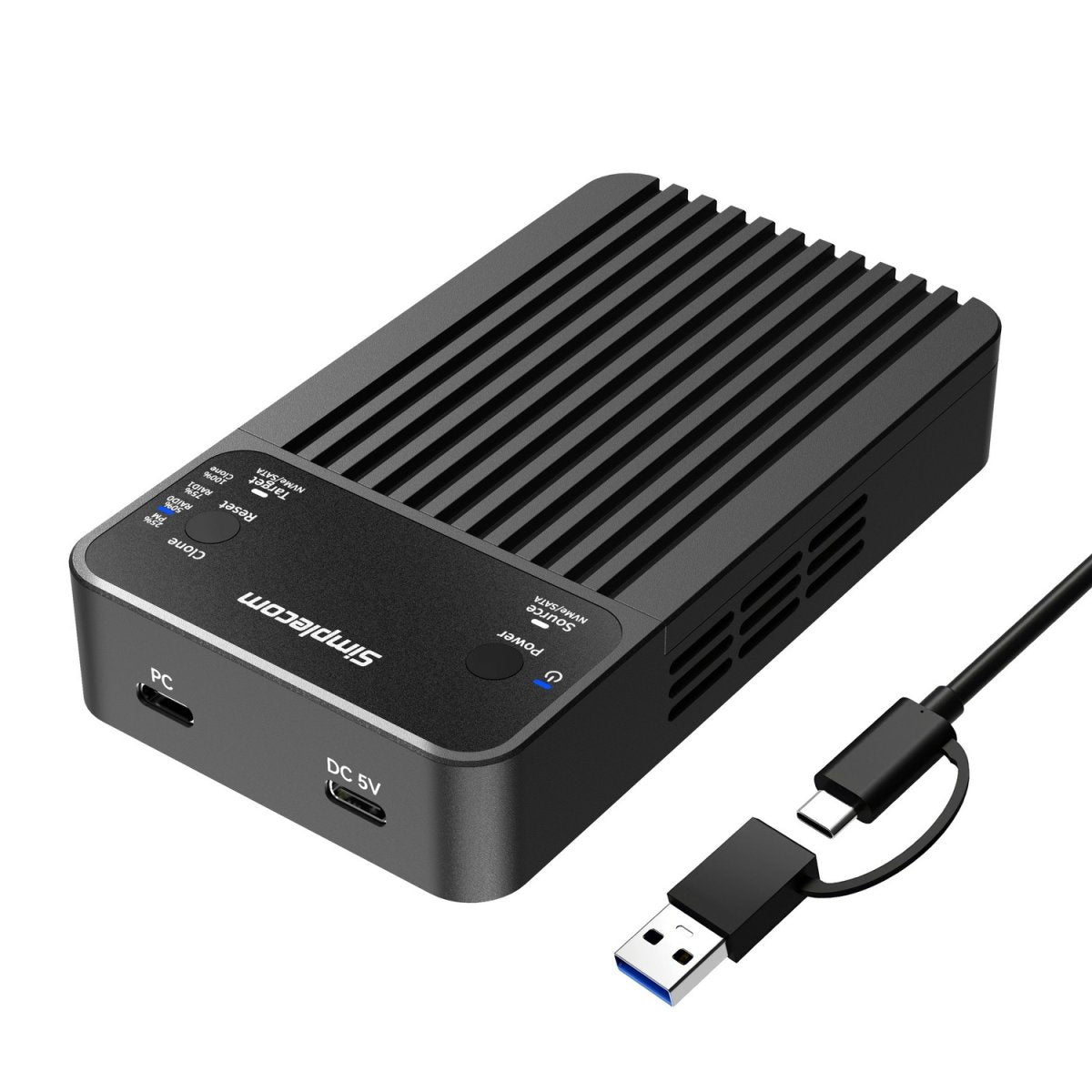

The Simplecom SD562 is a dual-bay M.2 SSD RAID enclosure supporting NVMe and SATA drives with RAID 0, RAID 1, clone, and partition modes. Featuring USB 3.2 Gen 2 connectivity and offline cloning capability, it delivers flexible storage expansion and data redundancy for IT professionals and content creators.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SD562 |
| Availability | In Stock |
Overview
- The Simplecom SD562 is a high-performance dual-bay M.2 SSD enclosure built for flexible storage expansion and efficient data management. Supporting both NVMe and SATA M.2 SSDs, it operates in multiple modes—RAID 0 for performance striping, RAID 1 for data redundancy, partition mode for independent drives, and offline clone mode for standalone drive duplication without a host computer.
With USB 3.2 Gen 2 connectivity delivering up to 10Gbps transfer speeds, the SD562 handles large files, system backups, and rapid data migration with ease. The durable aluminium chassis with integrated cooling fan maintains stable performance during intensive operations, whilst the tool-free design and magnetic top cover enable quick, hassle-free installation.
Offline cloning is a standout feature, allowing direct M.2 drive duplication without connecting to a PC—ideal for rapid deployment, data migration, and backup workflows. The enclosure is fully plug-and-play, requiring no additional drivers, and supports Windows 7 or later and macOS 10.8 or later.
Specifications
| Model | SD562 |
|---|---|
| Interface | USB-C (USB 3.2 Gen 2) |
| Data Transfer Rate | Up to 10Gbps |
| SSD Support | 2x NVMe M.2 or 2x SATA M.2 SSDs (not simultaneously) |
| M.2 Form Factor Support | 2230, 2242, 2260 (source slot only), 2280 |
| Operating Modes | RAID 0, RAID 1, clone, partition mode |
| Cooling | 20mm radial fan |
| Enclosure Material | Aluminium |
| Power Input | DC 5V/3A |
| Dimensions | 120 x 68 x 22 mm (L x W x H) |
| Weight | 208 g (without SSD) |
| Supported Operating Systems | Windows 7 or later, macOS 10.8 or later |
| Package Contents | SD562 enclosure, USB-C to USB-A cable, power adapter, 2x silicone thermal pads, 2x aluminium thermal pads, user manual |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Can I use an NVMe and SATA M.2 SSD together in the SD562?
No. The SD562 supports either 2x NVMe M.2 SSDs or 2x SATA M.2 SSDs, but not both types simultaneously in any of the four operating modes. Both drives must use the same protocol.
What is the advantage of offline clone mode?
Offline clone mode allows you to duplicate M.2 drives directly without connecting the enclosure to a computer. This is ideal for rapid data migration, drive replacement, and backup workflows, and is particularly useful in data centres and deployment scenarios.
Which RAID mode should I use for data protection?
RAID 1 (mirroring) provides data redundancy and fault tolerance. If one drive fails, your data is safely replicated on the second drive. RAID 0 (striping) increases speed but offers no redundancy and will result in total data loss if one drive fails.
What thermal pads are included and how do I use them?
The package includes 2x silicone thermal pads and 2x aluminium thermal pads to improve heat transfer between your SSDs and the enclosure. Apply them to the SSDs before installation to ensure optimal cooling during intensive operations.
Does the SD562 require drivers or special software?
No. The SD562 is fully plug-and-play and requires no additional drivers. It works natively with Windows 7 or later and macOS 10.8 or later.
Will switching operating modes erase my data?
Yes. Switching between modes will format both SSDs. Always back up important data before changing modes to avoid data loss.
What power supply does the SD562 require?
The enclosure requires DC 5V/3A power input. A power adapter is included in the package.
What M.2 form factors does the SD562 support?
The SD562 supports 2230, 2242, 2260, and 2280 M.2 form factors. Note: the 2260 form factor is supported in the source slot only.
