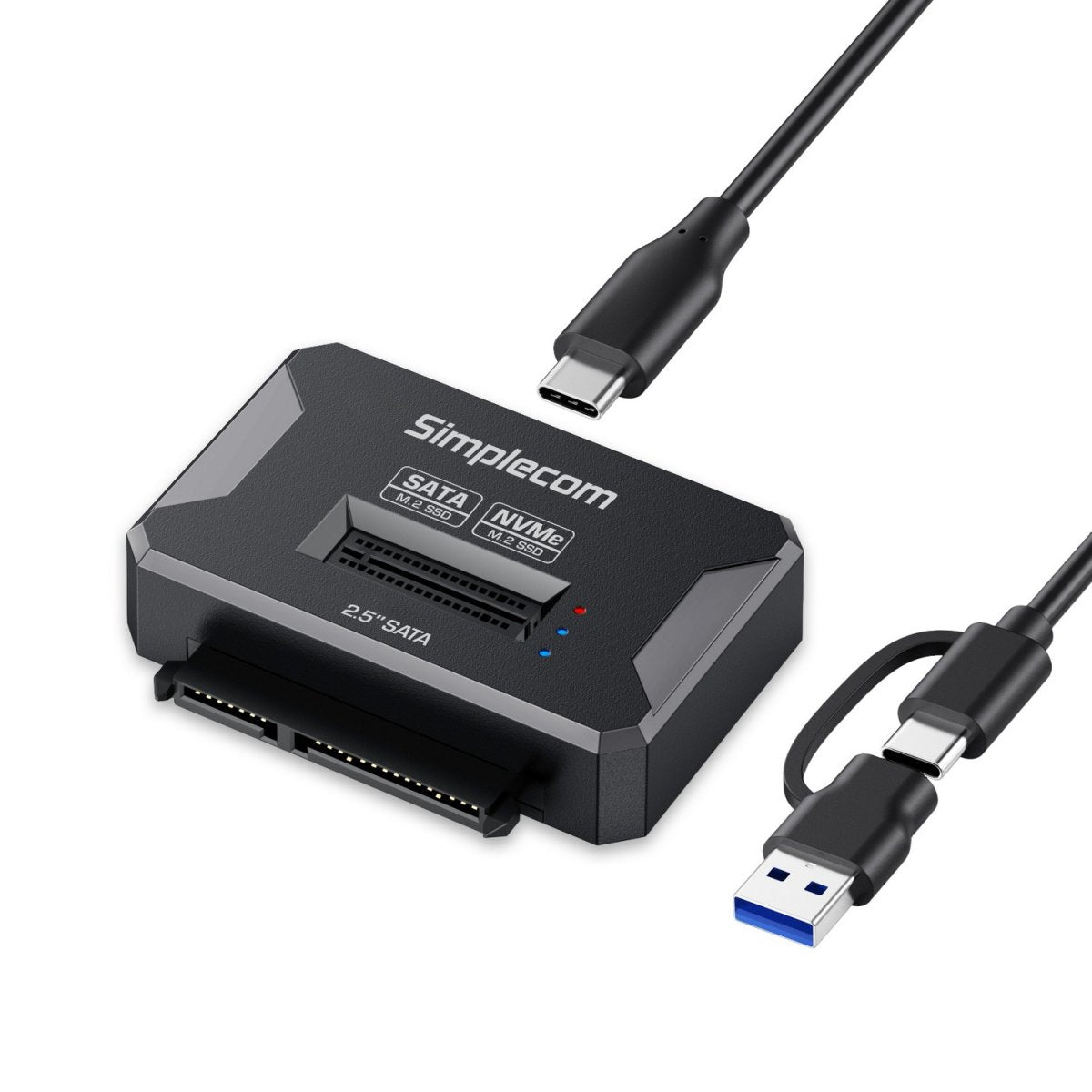

Simplecom SA516 NVMe/SATA Dual Slot M.2 SSD USB Adapter
Simplecom SA516 NVMe/SATA Dual Slot M.2 SSD USB Adapter
SKU:CBSI-SA516
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-SA516 |
| Availability | In Stock |
Overview
- The Simplecom SA516 is a practical dual-slot storage adapter that bridges the gap between legacy SATA and modern NVMe storage technologies. It allows users to connect both M.2 NVMe SSDs and 2.5" SATA drives via a single USB-C interface, making it ideal for organisations managing mixed storage environments.
With USB 3.2 Gen 2 compliance, the adapter delivers up to 10Gbps speeds when paired with NVMe drives, ensuring efficient data transfer and backup operations. The included USB-C to USB-A combo cable provides flexibility across Windows, macOS, and Linux systems without requiring external power or driver installation.
Designed for convenience and reliability, the SA516 supports broad M.2 form factors and includes UASP and TRIM functionality for optimal performance. It is best suited for IT managers, system administrators, and professionals requiring rapid access to multiple storage device types.
Specifications
| Model | SA516 |
|---|---|
| Brand | Simplecom |
| Interface | USB-C (USB 3.2 Gen 2) |
| M.2 Slot Protocol Support | NVMe and SATA |
| M.2 Form Factors Supported | 2230, 2242, 2260, 2280, 22110 |
| M.2 Key Types Supported | M Key or B+M Key |
| SATA Slot Support | 2.5" SATA HDDs and SSDs only |
| NVMe Transfer Speed | Up to 10Gbps |
| SATA Transfer Speed | Up to 6Gbps |
| Material | ABS plastic |
| Dimensions | 60 × 40 × 14 mm (L × W × H) |
| Weight | Approximately 37g |
| Power Source | USB powered (no external power required) |
| Included Cable | USB-C to USB-C and USB-A combo cable |
| Operating System Compatibility | Windows 7 or later, macOS 10.8 or later, Linux |
| Additional Features | UASP support, TRIM command support, plug-and-play |
| Warranty | 12 months |
| Package Contents | SA516 adapter, USB combo cable, user manual |
Key Features
Ideal For
FAQs
Can I use both the M.2 and SATA slots simultaneously?
No. The M.2 and SATA ports cannot be used at the same time. You must connect either an M.2 drive or a 2.5" SATA drive, not both.
Does the SA516 support 3.5" SATA hard drives?
No. The SATA slot supports 2.5" SATA drives only. 3.5" SATA hard drives are not compatible with this adapter.
What is the difference in speed between NVMe and SATA drives on this adapter?
NVMe M.2 drives achieve up to 10Gbps transfer speeds via USB 3.2 Gen 2. SATA-based M.2 and 2.5" SATA drives are limited to 6Gbps, which is the maximum speed of the SATA interface.
Do I need to install drivers to use the SA516?
No. The SA516 is plug-and-play and requires no driver installation. It works immediately across Windows, macOS, and Linux systems.
Does the adapter support hot-swapping?
No. You must unplug the USB cable before connecting or disconnecting an SSD or SATA drive. Hot-swapping is not supported.
What USB cable is included with the SA516?
The adapter includes a USB-C to USB-C and USB-A combo cable, providing flexibility for use with various devices and older USB-A ports.
Which M.2 form factors are compatible?
The SA516 supports M.2 drives in 2230, 2242, 2260, 2280, and 22110 form factors, covering most common consumer and professional M.2 SSDs.
Does the adapter require external power?
No. The SA516 is USB-powered and draws power directly from the USB connection. No external power supply is needed.
