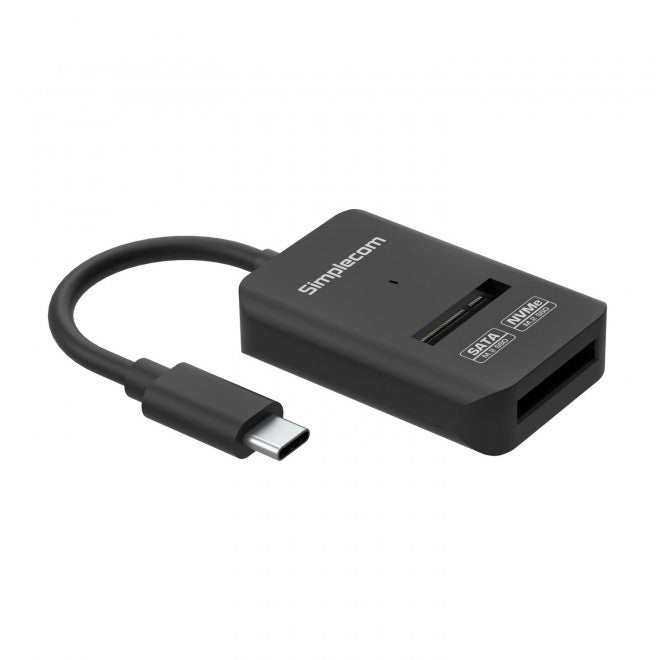

Simplecom SA506 M.2 SSD to USB-C Adapter
Simplecom SA506 M.2 SSD to USB-C Adapter
SKU:HXSI-SA506
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-SA506 |
| Availability | In Stock |
Overview
- The Simplecom SA506 is a versatile M.2 SSD to USB-C adapter that eliminates the need to install SSDs directly into your computer. It supports both NVMe and SATA protocol M.2 drives, making it a flexible solution for any M.2 storage device. With USB 3.2 Gen 2 speeds reaching 10Gbps for NVMe drives (6Gbps for SATA), this adapter delivers fast data access and transfer rates suitable for demanding workflows.
Designed as a cable-style adapter, the SA506 allows quick hot-swapping of multiple M.2 SSDs without opening your PC or using an external enclosure. Its plug-and-play design requires no driver installation or external power, making setup immediate and hassle-free. The adapter supports UASP for maximum performance and TRIM commands to maintain SSD health and longevity.
Ideal for data migration, system cloning, and backup tasks, the SA506 provides IT professionals and business users with a practical tool for managing M.2 storage. Compatible with Windows 7 and later, plus macOS 10.8 and later, it integrates seamlessly into mixed-OS environments. The included LED indicators provide real-time feedback on power and drive activity.
Specifications
| Model | SA506 |
|---|---|
| Brand | Simplecom |
| Product Type | M.2 SSD to USB-C Adapter |
| Interface | USB-C (USB 3.2 Gen 2) |
| Transfer Rate (NVMe) | Up to 10Gbps |
| Transfer Rate (SATA) | Up to 6Gbps |
| Compatible M.2 Protocols | NVMe (M Key), SATA (B+M Key) |
| Compatible M.2 Sizes | 2230, 2242, 2260, 2280, 22110 |
| Material | ABS Plastic |
| Dimensions | 158 × 37 × 12 mm (L × W × H) |
| Operating Temperature | 0–45°C |
| Power Source | USB powered (no external power required) |
| Supported Operating Systems | Windows 7 and above, macOS 10.8 and above |
| Features | Plug-and-play, no drivers required, UASP support, TRIM command support, LED indicators |
| Package Contents | SA506 adapter, user manual |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the Simplecom SA506 work with both NVMe and SATA M.2 SSDs?
Yes. The SA506 supports both NVMe and SATA protocol M.2 SSDs with M Key or B+M Key connectors. Transfer rates vary: NVMe drives achieve up to 10Gbps, while SATA drives are limited to 6Gbps due to the SATA protocol's maximum bandwidth.
What M.2 drive sizes does the SA506 support?
The adapter is compatible with M.2 drives in sizes 2230, 2242, 2260, 2280, and 22110, covering most common M.2 SSD form factors.
Does the SA506 require external power or driver installation?
No. The adapter is USB powered and operates on a plug-and-play basis with no driver installation required. It draws power directly from the USB-C port.
What operating systems are supported?
The SA506 is compatible with Windows 7 and later versions, and macOS 10.8 and later.
Can I use the SA506 for data migration and backup?
Yes. The cable-style design makes it ideal for data migration, drive cloning, and backup operations. You can access and transfer data from M.2 SSDs without installing them into your computer.
What is the transfer speed difference between NVMe and SATA M.2 drives?
NVMe M.2 drives utilise the full USB 3.2 Gen 2 bandwidth, achieving up to 10Gbps transfer rates. SATA M.2 drives are limited to 6Gbps due to SATA protocol constraints.
Does the SA506 support hot-swapping?
Yes. The cable-style design allows easy hot-swapping of multiple M.2 SSDs without opening your computer or using an external enclosure.
