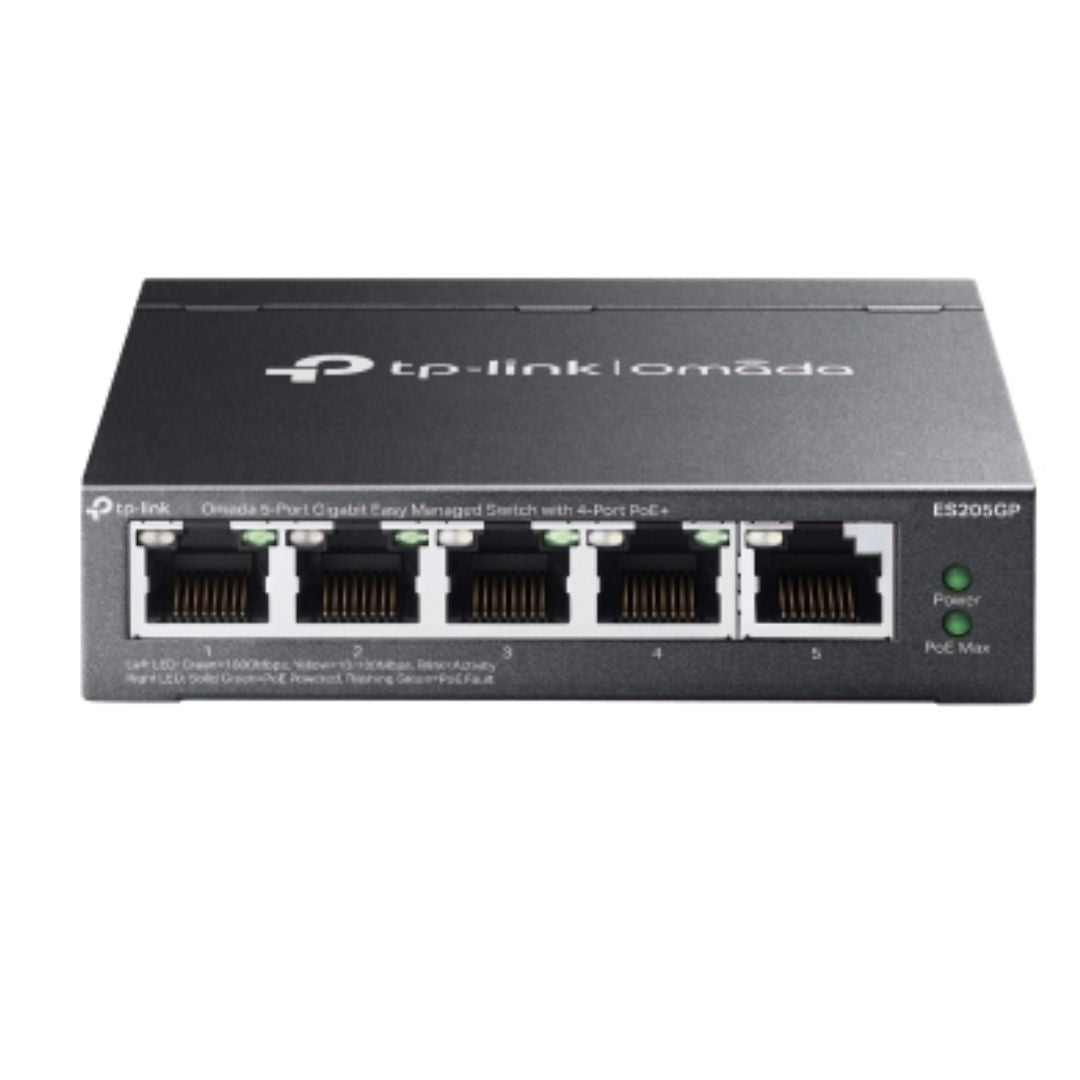

TP-Link ES205GP 5-Port Gigabit Managed Switch with PoE+
TP-Link ES205GP 5-Port Gigabit Managed Switch with PoE+
SKU:NWTL-ES205GP
The TP-Link ES205GP is a 5-port Gigabit managed switch with 4-port PoE+ support, designed for small business networks and surveillance deployments. Featuring centralised cloud management, automatic loop prevention, and a fanless design, it delivers reliable networking with simplified administration.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-ES205GP |
| Availability | In Stock |
Overview
- The TP-Link ES205GP is a compact, easy-to-manage 5-port Gigabit switch built for small business and surveillance networks. With four PoE+ ports delivering up to 30W each and a 65W total power budget, it can power IP cameras, wireless access points, and other PoE devices across distances up to 250m—eliminating the need for separate power infrastructure.
Designed for simplicity, the ES205GP supports plug-and-play connectivity while offering enterprise-grade features including VLAN segmentation, QoS traffic prioritisation, automatic loop prevention, and IGMP snooping. Centralised management is handled via the Omada cloud platform, accessible through a web interface or mobile app, making it ideal for remote administration.
The fanless metal construction ensures silent, reliable operation in office and outdoor surveillance environments. With a 5-year warranty and wall or desktop mounting flexibility, the ES205GP is a cost-effective choice for organisations looking to expand their network infrastructure without complexity.
Specifications
| Ports | 5× 10/100/1000 Mbps RJ45 Ethernet |
|---|---|
| PoE Ports | 4× 802.3at/af PoE+ |
| Power Budget | 65W total |
| PoE Power Per Port | Up to 30W per port |
| PoE Reach | Up to 250m |
| Management | Centralised cloud management (web and Omada app) |
| Network Features | VLAN, QoS, IGMP Snooping, Automatic Loop Prevention, Port Isolation, PoE Auto Recovery |
| Cooling | Fanless design |
| Casing | Metal |
| Mounting | Desktop or wall-mounted |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
What devices can the PoE+ ports power?
The four PoE+ ports can power IP cameras, wireless access points, VoIP phones, and other PoE-compatible devices rated up to 30W per port, with a combined budget of 65W.
Can I manage the switch remotely?
Yes. The ES205GP supports centralised cloud management through the Omada platform, accessible via a web browser or the Omada mobile app from anywhere.
What is the maximum distance PoE can reach?
The PoE+ ports support extended range up to 250m, allowing flexible placement of powered devices beyond standard Ethernet distances.
Does the switch require a fan?
No. The ES205GP features a fanless design for silent, maintenance-free operation, making it suitable for quiet office and surveillance environments.
What is loop prevention, and why is it important?
Automatic loop prevention detects and blocks redundant network paths that could cause traffic loops and network instability, protecting your network from downtime.
Can I segment traffic using VLAN?
Yes. The switch supports VLAN configuration for network segmentation, allowing you to isolate traffic between different departments or device types.
What warranty is included?
The TP-Link ES205GP includes a comprehensive 5-year warranty, providing long-term support and peace of mind.
