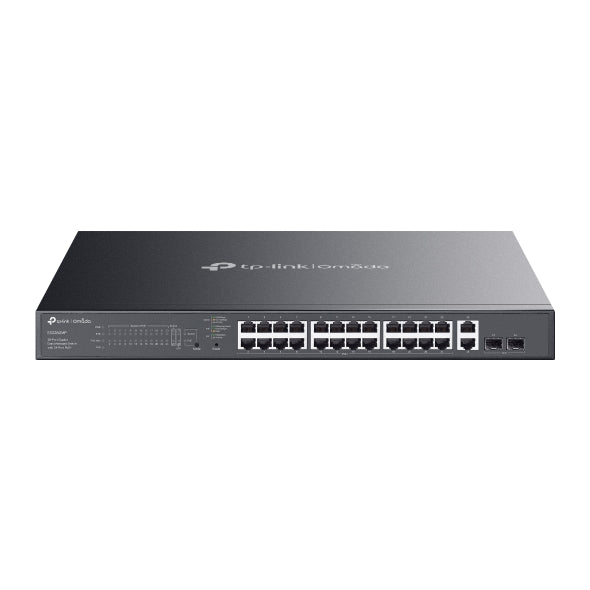

TP-Link ES228GMP Omada 28-Port Gigabit Managed Switch
TP-Link ES228GMP Omada 28-Port Gigabit Managed Switch
SKU:NWTL-ES228GMP
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-ES228GMP |
| Availability | In Stock |
Overview
- The TP-Link ES228GMP Omada is a 28-port Gigabit managed switch purpose-built for business networks requiring Power over Ethernet (PoE) capabilities. With 24 PoE+ ports delivering up to 30W each and a total 384W power budget, it simplifies the deployment of IP cameras, access points, and other PoE devices across your network.
The switch supports extended PoE delivery up to 250m, eliminating the need for additional power infrastructure in distant locations. Centralised cloud management through the Omada app or web interface allows IT teams to monitor and configure the network remotely, reducing on-site visits and administrative overhead.
Built for reliability, the ES228GMP includes automatic loop prevention, VLAN support, and IGMP snooping to ensure network stability. The durable metal casing and rack-mountable design make it suitable for both server rooms and distributed network installations. With a 5-year warranty and plug-and-play operation, it offers cost-effective network management for growing businesses.
Specifications
| Ports | 26 × 10/100/1000Mbps RJ45, 2 × Gigabit SFP |
|---|---|
| PoE Support | 24 × 802.3af/at-compliant PoE+ |
| Maximum PoE Power per Port | 30W |
| Total Power Budget | 384W |
| PoE Reach | Up to 250m |
| Management | Cloud-based via web interface and Omada app |
| Network Features | Automatic loop prevention, VLAN, IGMP Snooping, QoS, PoE Auto Recovery, Port Isolation, Flow Control |
| Physical Design | Rack-mountable, metal casing |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
How many PoE devices can this switch support?
The ES228GMP has 24 PoE+ ports, each capable of delivering up to 30W. The total power budget is 384W, so the number of simultaneous devices depends on their individual power requirements. For example, it can support 12-13 typical IP cameras (30W each) or more lower-power devices.
What is the extended PoE reach feature, and how is it useful?
The ES228GMP supports PoE delivery up to 250m, compared to the standard 100m limit. This allows you to place PoE devices further from the switch without requiring additional power supplies or injectors, reducing installation costs and cable clutter in distributed network setups.
Can I manage this switch remotely?
Yes. The switch includes centralised cloud management via the TP-Link Omada app and web interface, allowing you to monitor, configure, and troubleshoot the switch from anywhere. This is ideal for managing multiple switches across different locations.
What are the SFP ports used for?
The 2 × Gigabit SFP ports allow you to connect fibre optic cables for longer-distance connections or to link to other network equipment. This provides flexibility for future upgrades or special networking requirements.
Is this switch suitable for video surveillance installations?
Yes. With 24 PoE+ ports, extended 250m PoE reach, automatic loop prevention, and port isolation features, the ES228GMP is purpose-built for IP camera deployments. It simplifies camera power and data connectivity while ensuring network stability.
What does the automatic loop prevention feature do?
Automatic loop prevention detects and prevents network loops that can cause broadcast storms and network slowdowns. This ensures stable operation when switches are connected in redundant or ring topologies.
What warranty does this switch come with?
The TP-Link ES228GMP includes a 5-year warranty, providing peace of mind and long-term coverage for your network infrastructure investment.
