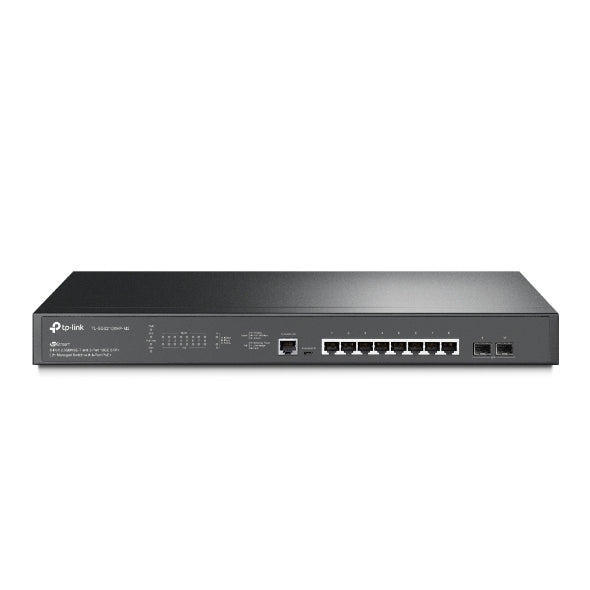

TP-Link SG3210XHP-M2 JetStream 8-Port 2.5G Managed Switch
TP-Link SG3210XHP-M2 JetStream 8-Port 2.5G Managed Switch
SKU:NWTL-SG3210XHP-M2
The TP-Link SG3210XHP-M2 is a managed network switch designed for small to medium businesses requiring high-performance connectivity. Featuring 8× 2.5 Gbps PoE+ ports, 2× 10 Gbps SFP+ uplinks, and 240 W PoE budget, it delivers reliable power and data distribution for WiFi 6 access points and network infrastructure.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SG3210XHP-M2 |
| Availability | Out of Stock |
Overview
- The TP-Link SG3210XHP-M2 JetStream is a purpose-built managed switch for modern business networks. With eight 2.5 Gbps PoE+ ports and dual 10 Gbps SFP+ uplinks, it provides the bandwidth and power delivery needed to support contemporary WiFi 6 deployments and core network infrastructure.
Integration with TP-Link's Omada Software-Defined Networking (SDN) platform enables centralised cloud-based management, Zero-Touch Provisioning for rapid deployment, and intelligent monitoring across distributed locations. This reduces operational overhead and accelerates network scaling.
The switch delivers enterprise-grade security controls including IP-MAC-Port Binding, Access Control Lists, DHCP Snooping, and RADIUS authentication. Advanced traffic management via L2/L3/L4 QoS and IGMP snooping ensures optimal performance for business-critical voice and video applications.
Designed for professional installations, the switch is rack-mountable with dual cooling fans and supports a maximum PoE budget of 240 W, allowing simultaneous powering of multiple high-demand devices from a single unit.
Specifications
| Ports (Data) | 8× 100/1000/2500 Mbps RJ45 ports |
|---|---|
| Ports (Uplink) | 2× 10G SFP+ slots |
| Console Ports | 1× RJ45 console port, 1× Micro-USB console port |
| PoE Support | 8× 802.3at/af-compliant PoE+ ports, 240 W total budget |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16 K entries |
| Jumbo Frame Support | 9 KB |
| Power Input | 100-240 V AC, 50/60 Hz |
| Power Consumption (idle) | 17.24 W (110V/60Hz, no PoE) |
| Power Consumption (max) | 291.49 W (110V/60Hz, with 240 W PoE) |
| Heat Dissipation (idle) | 58.82 BTU/h |
| Heat Dissipation (max) | 994.56 BTU/h |
| Cooling | 2 fans |
| Mounting | Rack-mountable (1U) |
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) |
| Management | Omada SDN, cloud-based, centralised control |
| Security Features | IP-MAC-Port Binding, ACL, Port Security, DoS protection, Storm control, DHCP Snooping, 802.1X, RADIUS authentication |
| QoS | L2/L3/L4 QoS, IGMP snooping |
| Routing | Static routing |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Can this switch power WiFi 6 access points?
Yes. The SG3210XHP-M2 is designed for WiFi 6 deployments. Its 8× 2.5 Gbps PoE+ ports provide both the high-speed connectivity and reliable power delivery (up to 240 W total) required to support multiple WiFi 6 access points from a single switch.
What is the difference between the 2.5G ports and 10G SFP+ ports?
The 8× 2.5 Gbps RJ45 ports are for connecting end devices like access points and PCs using standard Ethernet cables. The 2× 10 Gbps SFP+ slots are for ultra-high-speed uplinks to core network equipment or backbone infrastructure, offering non-blocking switching capacity.
Does this switch require Omada cloud management?
No. The switch can operate standalone with local management via console or web interface. However, integration with Omada SDN provides cloud-based centralised management, Zero-Touch Provisioning, and intelligent monitoring, which is optional and recommended for multi-site deployments.
What security features are included?
The switch includes comprehensive security controls: IP-MAC-Port Binding, Access Control Lists (ACL), Port Security, DoS protection, Storm control, DHCP Snooping, 802.1X authentication, and RADIUS support for enterprise-grade network access control.
Is this switch suitable for small office environments?
Yes. The SG3210XHP-M2 is ideal for SMBs. Its compact 1U rack-mountable design, manageable port count, cloud management capabilities, and 60-month warranty make it cost-effective for small to medium-sized business networks.
What is the PoE power budget and how many devices can it support?
The switch provides 240 W total PoE budget across 8 ports. This allows simultaneous powering of multiple high-power devices. The exact number depends on device power requirements; for example, standard WiFi 6 APs typically consume 30–60 W each, allowing 4–8 devices to be powered simultaneously.
What is the warranty period?
The TP-Link SG3210XHP-M2 includes a 60-month (5-year) manufacturer warranty, providing extended peace of mind for business-critical deployments.
Can this switch handle jumbo frames?
Yes. The switch supports jumbo frames up to 9 KB, which can improve performance for high-bandwidth applications and certain network protocols that benefit from larger packet sizes.
