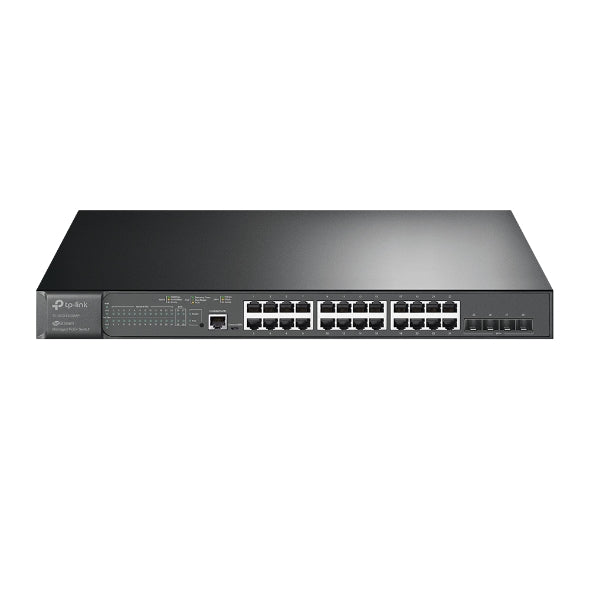

TP-Link SG3428XMP 24-Port PoE+ Gigabit Managed Switch
TP-Link SG3428XMP 24-Port PoE+ Gigabit Managed Switch
SKU:NWTL-SG3428XMP
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SG3428XMP |
| Availability | In Stock |
Overview
- The TP-Link SG3428XMP JetStream is a carrier-grade managed switch engineered for mid-market and enterprise deployments. With 24 Gigabit PoE+ ports and 4 × 10GE SFP+ uplink slots, it provides the density and performance required for converged networks running IP telephony, wireless, and video surveillance simultaneously.
Omada SDN integration transforms network management through Zero-Touch Provisioning, centralised cloud access, and intelligent monitoring. Network teams gain visibility and control across distributed sites without on-premises management infrastructure. The 384W PoE budget powers modern devices at scale while maintaining cost efficiency.
Advanced L2+ features including 802.1X authentication, IP-MAC-Port Binding, DoS Defence, and intelligent QoS ensure security and performance isolation between business-critical applications. Static routing capabilities optimise internal traffic flows, reducing bandwidth waste and improving end-user experience.
Specifications
| Gigabit Ports | 24 × 10/100/1000 Mbps RJ45 |
|---|---|
| 10 Gigabit Ports | 4 × 10G SFP+ |
| Console Ports | 1 × RJ45 + 1 × Micro-USB |
| PoE+ Ports | 24 ports (802.3at/af compliant) |
| Maximum PoE Budget | 384W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16,000 entries |
| Jumbo Frame Support | Up to 9 KB |
| QoS Priority Queues | 8 |
| Power Supply | 100-240V AC, 50/60 Hz |
| Maximum Power Consumption (no PoE) | 34.4W (110V/60Hz) |
| Maximum Power Consumption (with PoE) | 465.8W (110V/60Hz) |
| Maximum Heat Dissipation (no PoE) | 117.38 BTU/h |
| Maximum Heat Dissipation (with PoE) | 1589.31 BTU/h |
| Dimensions | 440 × 330 × 44 mm (W × D × H) |
| Mounting | Rack mountable |
| Cooling | 2 × fans |
| Management Interface | Web UI, CLI, SNMP, RMON |
| Console Access | Telnet, SSH |
| Network Management | Omada SDN Controller, Omada Mobile App |
| Provisioning | Zero-Touch Provisioning (ZTP) |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is PoE+ and how much power does the SG3428XMP deliver?
Power over Ethernet Plus (PoE+) delivers power and data over a single Ethernet cable. The SG3428XMP provides a total PoE budget of 384W across all 24 ports, sufficient to power IP phones, wireless access points, cameras, and other networked devices simultaneously.
What are the 10GE SFP+ ports used for?
The four 10 Gigabit SFP+ slots provide high-speed uplink connections to core network infrastructure, servers, or other switches. This enables non-blocking throughput and future-proofs your network for bandwidth growth.
How does Omada SDN integration benefit network management?
Omada SDN provides cloud-based centralised management, Zero-Touch Provisioning for rapid deployments, real-time monitoring across multiple locations, and simplified policy enforcement—reducing operational overhead and enabling better security control.
What security features does this switch offer?
Security features include IP-MAC-Port Binding, Access Control Lists (ACL), port security, DoS Defence, storm control, DHCP Snooping, 802.1X authentication, and RADIUS support—providing defence against common network threats.
Is this switch suitable for small businesses or only enterprises?
The SG3428XMP is purpose-built for mid-size to enterprise networks. Smaller businesses with fewer networked devices may prefer entry-level PoE switches, but this model is ideal for growing organisations needing scalable, managed infrastructure.
How does QoS improve network performance?
Quality of Service prioritises business-critical traffic (voice, video, data) based on Layer 2/3/4 criteria. The switch's 8 priority queues and intelligent scheduling ensure applications like VoIP and video conferencing perform reliably even under heavy network load.
What console port options are available for management?
The switch includes both a traditional RJ45 console port and a Micro-USB console port, providing flexibility for different management scenarios and device compatibility.
What is the warranty period for the SG3428XMP?
TP-Link provides a 60-month (5-year) manufacturer's warranty covering hardware defects and failures.
