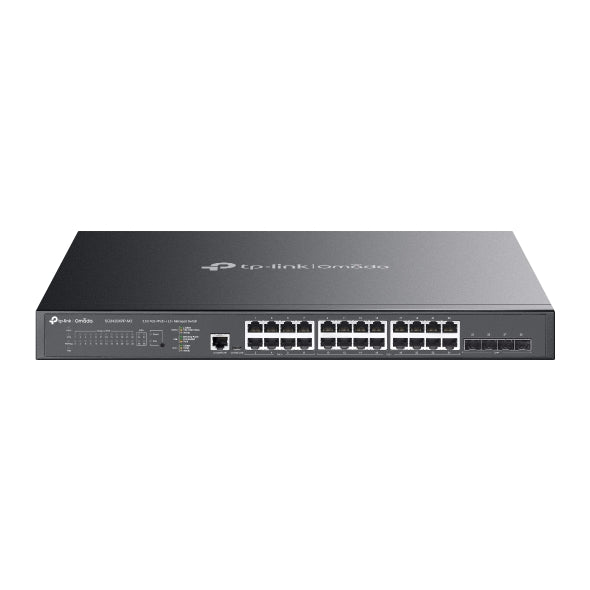

TP-Link SG3428XPP-M2 Omada 28-Port Managed Switch
TP-Link SG3428XPP-M2 Omada 28-Port Managed Switch
SKU:NWTL-SG3428XPP-M2
The TP-Link SG3428XPP-M2 is a 28-port managed network switch designed for growing businesses and WiFi 7/6E deployments. Featuring 24× 2.5G PoE ports, 4× 10G SFP+ uplinks, and 500W PoE budget, it delivers high-performance connectivity and centralised management via Omada SDN for IT teams.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SG3428XPP-M2 |
| Availability | In Stock |
Overview
- The TP-Link SG3428XPP-M2 is a powerful L2+ managed switch purpose-built for modern business networks. With 24 ports of 2.5 Gbps connectivity and 4 dedicated 10 Gbps uplink ports, it provides the bandwidth and PoE capacity needed to support next-generation WiFi infrastructure and demanding applications.
Integration with TP-Link's Omada SDN ecosystem enables Zero-Touch Provisioning, centralised cloud-based management, and intelligent monitoring across your entire network. IT teams can deploy, configure, and troubleshoot devices from a single dashboard, significantly reducing operational overhead.
The 500W PoE budget supports up to 24 devices simultaneously, making it ideal for organisations deploying large numbers of access points, IP cameras, or other PoE-powered equipment. Advanced QoS, static routing, and IGMP snooping ensure optimised performance for business-critical voice and video applications.
With comprehensive security features including 802.1X authentication, DHCP Snooping, DoS defence, and port-level access controls, the SG3428XPP-M2 protects your network infrastructure while maintaining performance.
Specifications
| ports_2_5g_poe | 24× 2.5 Gbps (16× PoE++, 8× PoE+) |
|---|---|
| ports_10g_uplink | 4× 10 Gbps SFP+ |
| poe_budget | 500W (802.3bt/at/af compliant) |
| switching_capacity | Non-blocking |
| switching_layer | L2+ |
| management | Cloud-based via Omada SDN, centralised app, Zero-Touch Provisioning |
| routing | Static routing |
| qos | L2/L3/L4 QoS |
| multicast | IGMP snooping |
| security_features | IP-MAC-Port Binding, ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, RADIUS Authentication |
| warranty | 60 months |
Key Features
Ideal For
FAQs
What is the difference between PoE++ and PoE+?
PoE++ (802.3bt) delivers up to 90W per port, while PoE+ (802.3at) delivers up to 30W per port. The SG3428XPP-M2 features 16 PoE++ ports for high-power devices and 8 PoE+ ports, allowing you to power diverse endpoint types simultaneously within the 500W total budget.
Can this switch support WiFi 6E and WiFi 7 access points?
Yes. The 24× 2.5 Gbps ports are designed to unlock the full potential of WiFi 6E and WiFi 7 access points, delivering the bandwidth these high-performance APs require to achieve advertised throughput.
What is Zero-Touch Provisioning?
Zero-Touch Provisioning (ZTP) is an Omada feature that automatically configures switches when they connect to the network, eliminating manual setup. New devices can be deployed and integrated into your management dashboard with minimal IT intervention.
Is this switch suitable for small businesses?
The SG3428XPP-M2 is designed for medium to large enterprises and growing networks. Small businesses may find a more compact managed switch better suited to their needs and budget.
How does Omada SDN management work?
Omada SDN provides centralised, cloud-based management of your TP-Link network infrastructure. You can monitor, configure, and troubleshoot all connected devices from a single dashboard via web browser or mobile app, regardless of location.
What security features does this switch provide?
The SG3428XPP-M2 includes enterprise-grade security: 802.1X port authentication, DHCP Snooping, IP-MAC-Port Binding, DoS Defence, storm control, and ACL-based access policies. RADIUS authentication enables integration with existing directory services.
What is the warranty period?
The TP-Link SG3428XPP-M2 includes a 5-year manufacturer warranty, providing extended peace of mind and support.
