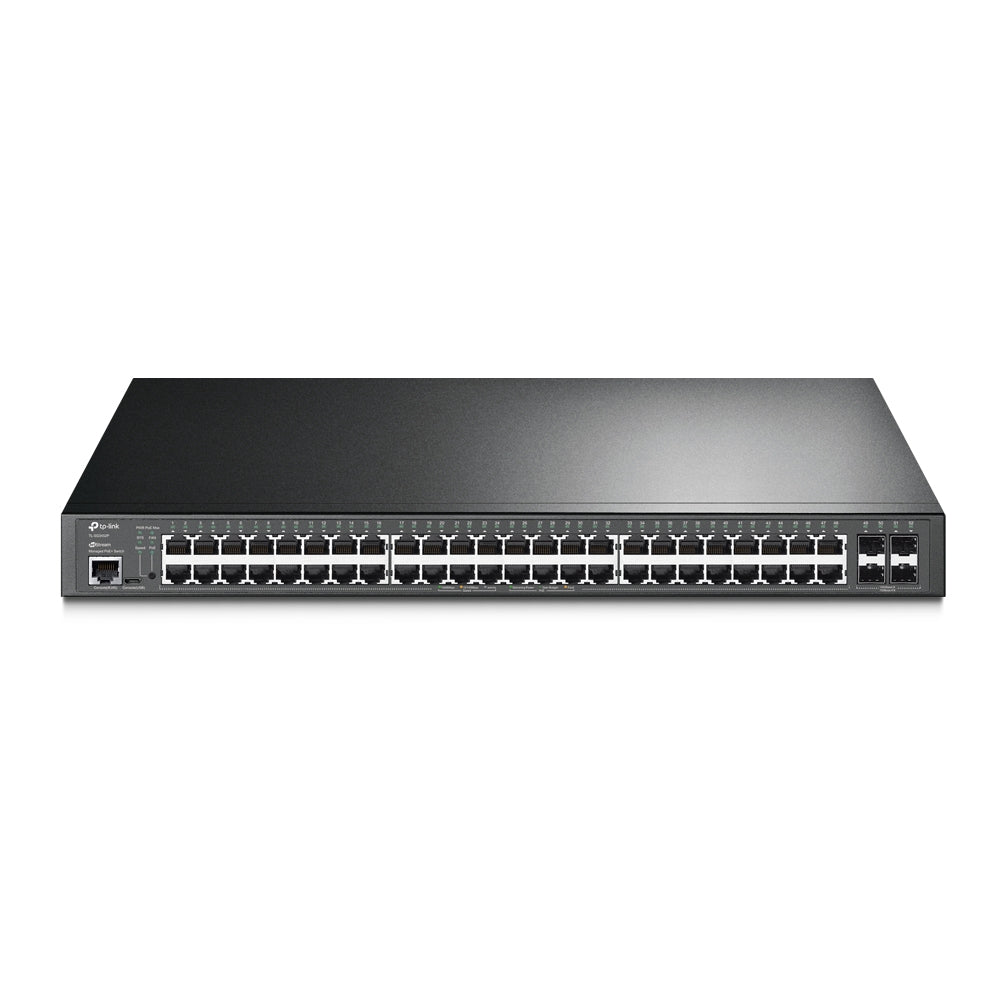

TP-Link SG3452P 52-Port Gigabit Managed Switch with PoE+
TP-Link SG3452P 52-Port Gigabit Managed Switch with PoE+
SKU:NWTL-SG3452P
The TP-Link SG3452P is a 52-port Gigabit L2+ managed switch designed for small to medium businesses requiring centralised network control. Featuring 48 PoE+ ports with 384W power budget, Omada SDN integration, and comprehensive security controls, it delivers efficient power distribution and simplified network management for growing enterprises.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SG3452P |
| Availability | In Stock |
Overview
- The TP-Link SG3452P is a 52-port Gigabit L2+ managed switch built for businesses seeking a balance between performance, power delivery, and operational simplicity. With 48 PoE+ ports offering up to 384W total power budget, it can simultaneously power and connect dozens of network devices such as security cameras, wireless access points, and IP phones—eliminating the need for separate power injectors.
Integration with Omada SDN delivers enterprise-grade management capabilities at SMB-friendly pricing. Zero-Touch Provisioning streamlines deployment, while cloud-based monitoring and centralised controller access reduce on-site administration overhead. Static routing, VLAN support, and QinQ tagging enable sophisticated network segmentation and traffic optimisation.
Security-conscious organisations will appreciate the comprehensive feature set: IP-MAC-Port Binding prevents unauthorised device access, ACLs and port security limit traffic flow, DoS defence and storm control protect against malicious traffic, and 802.1X with RADIUS authentication enforces user-based access control.
With 104 Gbps switching capacity, advanced QoS with 8 priority queues, and IGMP snooping for efficient multicast delivery, the SG3452P handles latency-sensitive applications such as video conferencing and streaming without congestion. Its compact 1U rack-mountable form factor fits standard server cabinets, making it ideal for growing businesses expanding their network infrastructure.
Specifications
| Brand | TP-Link |
|---|---|
| Model | SG3452P |
| Product Type | L2+ Managed Gigabit Switch |
| Ports | 48× 10/100/1000 Mbps RJ45 + 4× Gigabit SFP Slots + 1× Console RJ45 + 1× Micro-USB Console |
| PoE+ Ports | 48 ports, 802.3at/af compliant |
| PoE+ Power per Port | Up to 30W |
| Total PoE+ Budget | 384W |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.4 Mpps |
| MAC Address Table | 16K |
| Maximum Frame Size | 9KB (Jumbo Frame) |
| QoS | 8 priority queues, 802.1p CoS/DSCP, port/flow-based rate limiting, SP/WRR/SP+WRR scheduling |
| Management | Web GUI, CLI (Console, Telnet, SSH), SNMP, RMON, Omada SDN Controller |
| Omada Features | Zero-Touch Provisioning, cloud management, centralised monitoring |
| Security Features | IP-MAC-Port Binding, ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, RADIUS Authentication |
| VLAN Support | 802.1Q VLAN, QinQ |
| Routing | Static routing |
| Multicast | IGMP Snooping |
| Dimensions | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) |
| Mounting | Rack mountable (1U) |
| Power Input | 100-240V AC, 50/60 Hz |
| Power Consumption (No PoE) | 52.53W (110V/60 Hz) |
| Power Consumption (Full PoE) | 485.4W (110V/60 Hz) |
| Heat Dissipation (No PoE) | 179.13 BTU/hr |
| Heat Dissipation (Full PoE) | 1656.19 BTU/hr |
| Cooling | 3 fans |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Can the TP-Link SG3452P power IP cameras and wireless access points?
Yes. The switch has 48 PoE+ ports compliant with 802.3at/af standards, each delivering up to 30W. With a total 384W budget, it can simultaneously power dozens of PoE-compatible devices such as IP security cameras, wireless access points, VoIP phones, and access controllers.
What is Omada SDN and how does it help manage the switch?
Omada is TP-Link's Software Defined Network platform. It provides centralised cloud-based management, Zero-Touch Provisioning for rapid deployment, and intelligent monitoring dashboards. You can manage the SG3452P remotely via web browser or mobile app without needing on-site administration.
Does this switch support VLANs and traffic segmentation?
Yes. The SG3452P supports 802.1Q VLAN and QinQ for advanced network segmentation. Combined with static routing, ACLs, and port security, you can isolate traffic between departments, guest networks, and critical systems.
What security features are included?
The switch includes IP-MAC-Port Binding to prevent unauthorised device access, ACLs and port security for traffic control, DoS defence and storm control to mitigate malicious traffic, DHCP Snooping to prevent rogue DHCP servers, and 802.1X with RADIUS authentication for user-based access control.
Is the SG3452P suitable for voice and video applications?
Yes. Advanced QoS with 8 priority queues, 802.1p CoS/DSCP prioritisation, and multiple scheduling modes (SP, WRR, SP+WRR) optimise latency-sensitive traffic. IGMP snooping ensures efficient multicast delivery for video streaming and conferencing.
Can the switch be installed in a standard server cabinet?
Yes. The SG3452P is rack-mountable in a 1U form factor (440 × 330 × 44 mm), making it compatible with standard 19-inch server racks and network cabinets.
What happens if the switch loses power to the PoE ports?
PoE delivery is dependent on continuous AC power. The switch has a maximum power consumption of 485.4W when all PoE ports are delivering full 30W. If AC power is interrupted, PoE delivery to connected devices will also stop. Consider UPS backup for mission-critical deployments.
Does the SG3452P require specialised training to configure?
The Omada SDN controller simplifies management for most users, but the switch also supports traditional CLI, SNMP, and web-based management. IT professionals familiar with managed switches will find the interface intuitive; however, advanced features like static routing and ACLs may benefit from networking expertise.
