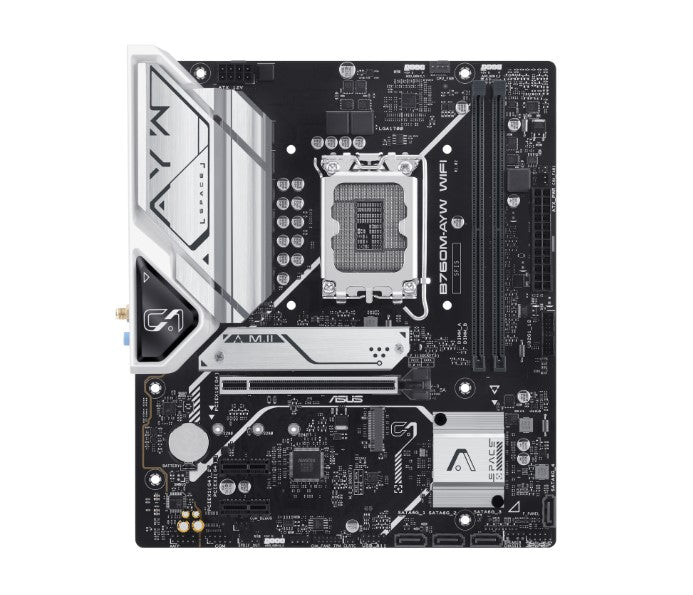

ASUS B760M-AYW WIFI mATX Motherboard LGA1700
ASUS B760M-AYW WIFI mATX Motherboard LGA1700
SKU:MBA-B760M-AYW-WF
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B760M-AYW-WF |
| Availability | Out of Stock |
Overview
- The ASUS B760M-AYW WIFI is a compact mATX motherboard designed for Intel 12th, 13th, and 14th generation processors. Built on the Intel B760 chipset, it combines modern features with practical space efficiency, making it ideal for office builds, workstations, and small-form-factor systems.
Connectivity is a key strength, with WiFi 6 (802.11ax), 2.5GbE Ethernet, and Bluetooth 5.3 ensuring reliable wired and wireless network access. The motherboard supports DDR5 memory up to 96GB with multiple overclocking profiles, delivering the performance headroom needed for multitasking and demanding applications.
Storage flexibility comes from two PCIe 4.0 M.2 slots and four SATA ports, supporting both NVMe and traditional drives. Intel Rapid Storage Technology enables RAID configurations for data redundancy. The comprehensive cooling system with dedicated heatsinks on the VRM, M.2 slots, and chipset maintains thermal stability under load.
With 36 months warranty and support for Windows 11 and Windows 10 64-bit, this motherboard is a solid foundation for professional and productivity-focused builds.
Specifications
| Brand | ASUS |
|---|---|
| Model | B760M-AYW WIFI |
| Form Factor | mATX |
| Physical Dimensions | 24.4cm x 21.1cm (9.6" x 8.3") |
| CPU Socket | Intel LGA1700 |
| Supported Processors | Intel Core 14th, 13th, 12th Gen; Pentium Gold; Celeron |
| Chipset | Intel B760 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 96GB |
| Memory Type | DDR5 |
| Memory Speed Support | DDR5 8000(OC) to DDR5 4800 MHz |
| Memory Features | Dual Channel, XMP support, On-Die ECC |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| M.2 Slots | 2 x M.2 (both PCIe 4.0 x4) |
| M.2 Supported Types | 2242, 2260, 2280 |
| SATA Ports | 4 x SATA 6Gb/s |
| Storage Features | Intel Rapid Storage Technology, RAID 0/1/5/10 support |
| Ethernet | 1 x Realtek 2.5Gb with LANGuard |
| WiFi | WiFi 6 (802.11 a/b/g/n/ac/ax), 2.4GHz/5GHz |
| Bluetooth | Bluetooth 5.3 |
| Video Output | 1 x HDMI 2.1 (4K@60Hz) |
| BIOS | 128 Mb Flash ROM, UEFI AMI |
| Operating Systems | Windows 11, Windows 10 64-bit |
| CPU Features | Supports Intel Turbo Boost Technology 2.0 and 3.0 |
| RGB Lighting | Onboard Addressable Gen 2 headers, Aura Sync |
| Cooling | VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, Fan Xpert 2+ |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with the ASUS B760M-AYW WIFI?
This motherboard supports Intel Core 14th, 13th, and 12th generation processors, as well as Pentium Gold and Celeron processors with LGA1700 socket. For a full list of compatible CPUs, refer to the ASUS support page.
What is the maximum DDR5 memory supported?
The B760M-AYW WIFI supports up to 96GB of DDR5 memory across two DIMM slots. It is compatible with overclocked profiles up to DDR5-8000 and supports Intel XMP for easy configuration.
Does this motherboard have NVMe storage support?
Yes, there are two PCIe 4.0 M.2 slots supporting 2242, 2260, and 2280 form factor drives. Both slots operate at full PCIe 4.0 x4 speeds for fast NVMe storage.
What networking options are available?
The motherboard includes WiFi 6 (802.11ax) supporting 2.4GHz and 5GHz bands, Bluetooth 5.3, and a 2.5Gb Ethernet port with ASUS LANGuard protection.
Can I use RAID with this motherboard?
Yes, Intel Rapid Storage Technology enables RAID 0, 1, 5, and 10 configurations across the SATA ports, providing data redundancy and performance options.
Is RGB lighting customizable?
The motherboard features onboard Addressable Gen 2 RGB headers that can be synced with compatible hardware using ASUS Aura Sync software for unified lighting control.
What video output options does it have?
The B760M-AYW WIFI has one HDMI 2.1 port supporting 4K resolution at 60Hz, suitable for integrated graphics output on compatible processors.
What is the warranty period?
This motherboard comes with a 36-month manufacturer warranty covering defects in materials and workmanship.
