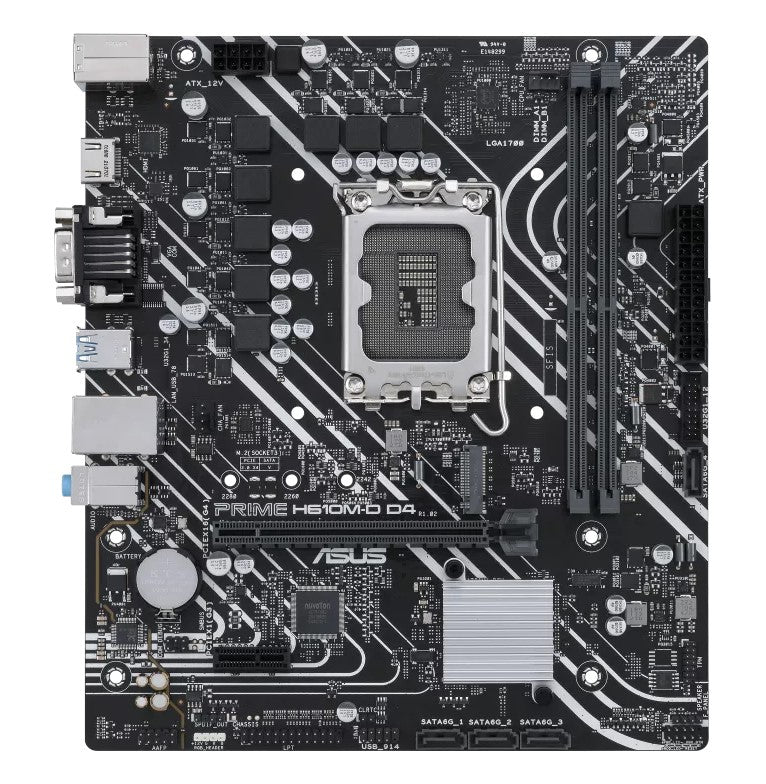

ASUS PRIME H610M-D D4-CSM Intel LGA 1700 mATX Motherboard
ASUS PRIME H610M-D D4-CSM Intel LGA 1700 mATX Motherboard
SKU:MBA-H610M-PD-D4CSM
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-H610M-PD-D4CSM |
| Availability | In Stock |
Overview
- The ASUS PRIME H610M-D D4-CSM is a compact mATX motherboard built for 12th Gen Intel Core processors, making it ideal for space-conscious office and business environments. The board supports up to 64GB of DDR4 memory and includes modern connectivity features such as PCIe 4.0, M.2 NVMe storage, and 1Gb Ethernet.
Designed with business stability in mind, the motherboard includes ASUS Control Centre Express (ACCE) for centralized IT endpoint management, allowing administrators to monitor and control multiple systems across the organisation. The 5X Protection III suite provides comprehensive hardware safeguards, protecting critical components from electrical stress and system faults.
With multiple video output options (HDMI and D-Sub), USB 3.2 Gen 1 ports, and SATA 6Gbps connectivity, the H610M-D D4-CSM offers the essential features required for reliable business computing without unnecessary cost. Comprehensive cooling solutions, including PCH heatsink management and Fan Xpert technology, ensure consistent thermal performance.
Specifications
| processor_socket | Intel LGA 1700 |
|---|---|
| supported_processors | 12th Gen Intel Core processors |
| chipset | Intel H610 |
| form_factor | mATX |
| memory_slots | 2 x DIMM |
| maximum_memory | 64GB |
| memory_type | DDR4 Non-ECC, Unbuffered |
| memory_speeds_supported | DDR4-3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz |
| memory_architecture | Dual Channel |
| xmp_support | Intel Extreme Memory Profile (XMP) |
| pcie_x16_slots | 1 x PCIe 4.0 x16 |
| pcie_x1_slots | 1 x PCIe 3.0 x1 |
| m2_slots | 1 x M.2 (32Gbps) |
| sata_ports | SATA 6Gbps |
| video_outputs | 1 x HDMI, 1 x D-Sub |
| ethernet | 1 x 1Gb Realtek Ethernet |
| usb_ports | USB 3.2 Gen 1 |
| legacy_headers | COM port, LPT header |
| rgb_header | Yes |
| cooling_features | PCH heatsink, Fan Xpert |
| protection_suite | 5X Protection III |
| management_tools | ASUS Control Center Express (ACCE) |
| warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the ASUS PRIME H610M-D D4-CSM?
This motherboard is designed for Intel 12th Gen Core processors (Alder Lake) that use the LGA 1700 socket. It is not compatible with earlier generation processors or AMD systems.
What is the maximum amount of memory this motherboard supports?
The H610M-D D4-CSM supports up to 64GB of DDR4 memory across two DIMM slots. Memory speeds supported include DDR4-3200, 3000, 2933, 2800, 2666, 2400, and 2133 MHz.
Does this motherboard support NVMe storage?
Yes, the motherboard includes one M.2 slot that supports NVMe SSDs at 32Gbps PCIe speeds, providing fast storage performance.
What video outputs does the H610M-D D4-CSM provide?
The motherboard offers two video output options: one HDMI port and one D-Sub (VGA) port, allowing connection to modern displays or legacy monitors.
Is this motherboard suitable for business deployments?
Yes, the H610M-D D4-CSM includes ASUS Control Centre Express (ACCE) for centralised IT endpoint management, making it well-suited for business environments where multiple systems need to be monitored and controlled.
What is the warranty period?
The ASUS PRIME H610M-D D4-CSM comes with a 36-month manufacturer warranty covering defects in materials and workmanship.
What cooling solutions does this motherboard include?
The motherboard features a PCH heatsink for chipset cooling and Fan Xpert technology for intelligent fan control, ensuring stable thermal performance under normal business workloads.
