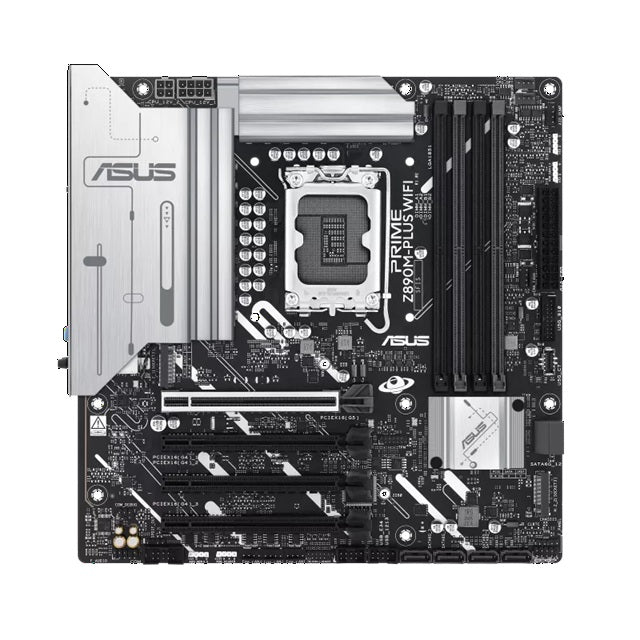

ASUS PRIME Z890M-PLUS WIFI-CSM mATX Motherboard
ASUS PRIME Z890M-PLUS WIFI-CSM mATX Motherboard
SKU:MBA-Z890M-PLUS-WFCSM
The ASUS PRIME Z890M-PLUS WIFI-CSM is a compact mATX motherboard built for Intel Core Ultra Processors (Series 2). Featuring DDR5 support up to 256GB, PCIe 5.0, Wi-Fi 7, and advanced cooling solutions, it delivers reliable performance for DIY builders and business PC configurations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-Z890M-PLUS-WFCSM |
| Availability | Out of Stock |
Overview
- The ASUS PRIME Z890M-PLUS WIFI-CSM is a feature-rich mATX motherboard engineered for Intel's latest Core Ultra Processors (Series 2). Despite its compact 9.6" × 9.6" form factor, it delivers enterprise-grade connectivity and power delivery, making it ideal for both DIY builders and business system integrators.
This motherboard supports up to 256GB of DDR5 memory and includes PCIe 5.0 for next-generation storage and graphics. The integrated Wi-Fi 7 and 2.5GbE Ethernet with ASUS LANGuard ensure reliable, high-speed networking for demanding workloads. Its ASUS 5X PROTECTION III architecture protects critical components with digital power design, overvoltage protection, and advanced thermal management.
Built with ease of use in mind, the PRIME Z890M-PLUS WIFI-CSM includes BIOS FlashBack for hassle-free BIOS updates, a pre-mounted I/O shield, and intuitive Q-Design features. The motherboard is certified for Windows 11 (22H2 & later) and carries a three-year warranty, providing long-term reliability for business and consumer deployments.
Specifications
| Brand | ASUS |
|---|---|
| Model | PRIME Z890M-PLUS WIFI-CSM |
| Motherboard Form Factor | mATX |
| Motherboard Dimensions | 9.6 inch × 9.6 inch (24.4 cm × 24.4 cm) |
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Memory Slots | 4× DIMM |
| Memory Type | DDR5 |
| Maximum Memory | 256GB |
| Memory Speed Support | Up to 8666+ MT/s (OC), Non-ECC, Unbuffered DIMM (CUDIMM) |
| Memory Architecture | Dual Channel |
| Memory Profiles | Intel XMP, ASUS Enhanced Memory Profile III (AEMPIII) |
| M.2 Slots | 3× |
| PCIe Generation | PCIe 5.0 |
| Graphics Outputs | 1× DisplayPort, 1× HDMI, 1× USB 20Gbps Type-C (DisplayPort) |
| DisplayPort Support | 4K@60Hz (DisplayPort 1.4) |
| HDMI Support | 4K@60Hz (HDMI 2.1) |
| USB Type-C Video Support | 4K@120Hz (DisplayPort 1.4) |
| Ethernet | 1× Realtek 2.5Gb Ethernet |
| Ethernet Protection | ASUS LANGuard |
| Wireless | Wi-Fi 7 |
| BIOS Type | UEFI AMI BIOS |
| BIOS Storage | 256 Mb Flash ROM (128+128) |
| Protection Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O) |
| Thermal Design | VRM heatsink design |
| Special Features | ASUS Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot), Aura Sync RGB, BIOS FlashBack |
| Pre-Installed Features | Pre-mounted I/O shield, ProCool |
| Operating System Support | Windows 11 (22H2 & later) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the ASUS PRIME Z890M-PLUS WIFI-CSM support?
This motherboard supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket. For a complete list of compatible CPUs, refer to the ASUS support centre.
What is the maximum amount of RAM this motherboard can support?
The PRIME Z890M-PLUS WIFI-CSM supports up to 256GB of DDR5 memory across 4 DIMM slots, with speeds up to 8666+ MT/s in overclocked configurations.
Does this motherboard have Wi-Fi connectivity?
Yes, it includes integrated Wi-Fi 7 connectivity along with a 2.5GbE Ethernet port with ASUS LANGuard protection for wired connections.
How many M.2 slots does this motherboard have?
The PRIME Z890M-PLUS WIFI-CSM includes 3 M.2 slots for NVMe storage expansion, supporting PCIe 5.0 for high-speed performance.
What video output options are available?
The motherboard provides 1× DisplayPort, 1× HDMI, and 1× USB 20Gbps Type-C with DisplayPort support, enabling multi-monitor configurations up to 4K resolution.
Is this motherboard suitable for small form factor builds?
Yes, the mATX form factor (9.6" × 9.6") is ideal for compact builds whilst retaining full-featured connectivity and power delivery.
What warranty period is included?
The ASUS PRIME Z890M-PLUS WIFI-CSM comes with a 36-month warranty.
Does it support memory overclocking?
Yes, the motherboard supports Intel XMP and ASUS Enhanced Memory Profile III (AEMPIII) for optimised overclocking profiles.
