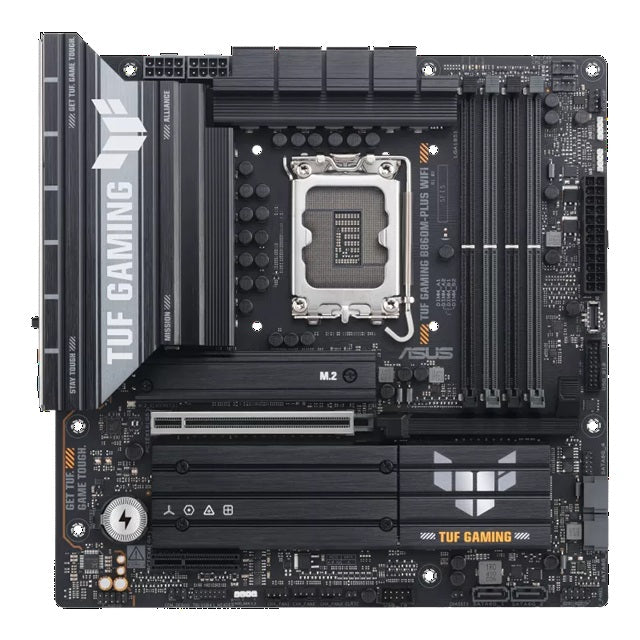

ASUS TUF GAMING B860M-PLUS WIFI mATX Motherboard
ASUS TUF GAMING B860M-PLUS WIFI mATX Motherboard
SKU:MBA-B860M-PLUS-TUFW
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B860M-PLUS-TUFW |
| Availability | Out of Stock |
Overview
- The ASUS TUF GAMING B860M-PLUS WIFI is built on Intel's B860 chipset and supports the latest Intel Core Ultra Processors (Series 2) via the LGA1851 socket. It combines military-grade components with advanced cooling systems to deliver rock-solid performance for gaming, content creation, and AI applications.
With DDR5 memory support up to 256GB and PCIe 5.0 connectivity, this motherboard is engineered for future-proofing. The triple M.2 configuration and SATA ports provide flexible storage options, whilst WiFi 7 ensures the latest wireless standards. TUF motherboards undergo rigorous endurance testing to handle demanding conditions where other platforms may fail.
The mATX form factor (24.4 x 24.4 cm) makes this ideal for compact builds without sacrificing expansion capabilities. Dual display outputs, enhanced power delivery, and comprehensive thermal solutions round out a feature-rich platform suitable for professionals and enthusiasts alike.
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B860M-PLUS WIFI |
| Product Type | mATX Motherboard |
| Chipset | Intel B860 |
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Form Factor | mATX |
| Motherboard Dimensions | 24.4 cm x 24.4 cm (9.6 inch x 9.6 inch) |
| BIOS | 2 x 128 MB Flash ROM, UEFI AMI BIOS |
| Memory Slots | 4 x DIMM slots |
| Maximum Memory | 256GB DDR5 |
| Memory Type | DDR5 Non-ECC, Unbuffered |
| Memory Speed Support | Up to 8800+ MT/s (OC) |
| Memory Profiles | Intel XMP, ASUS AEMPIII |
| Memory Architecture | Dual Channel |
| PCIe Slot 1 | 1 x PCIe 5.0 x16 slot |
| PCIe Slot 2 | 1 x PCIe 4.0 x4 slot |
| M.2 Slot 1 | Type 2280, PCIe 5.0 x4 |
| M.2 Slot 2 | Type 2242/2260/2280, PCIe 4.0 x4 |
| M.2 Slot 3 | Type 2280, PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s ports with RAID 0/1/5/10 |
| Video Outputs | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB-C with DisplayPort output |
| Maximum Video Resolution | 4K@60Hz via DisplayPort or HDMI |
| Ethernet | 1 x Realtek 2.5Gb with TUF LANGuard |
| Wireless | WiFi 7 (802.11be) 2x2 |
| WiFi Frequency Bands | 2.4GHz, 5GHz, 6GHz |
| WiFi Bandwidth | 160MHz, up to 2.9Gbps transfer rate |
| Bluetooth | Bluetooth v5.4 |
| Operating System Support | Windows 11 (22H2 or later) |
| System Management | WOL by PME, PXE |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors does this motherboard support?
The TUF GAMING B860M-PLUS WIFI supports Intel Core Ultra Processors (Series 2) via the LGA1851 socket. For a complete CPU support list, refer to the ASUS support download centre.
How much DDR5 memory can this motherboard support?
This motherboard supports up to 256GB of DDR5 memory across 4 DIMM slots, with speeds up to 8800+ MT/s (overclocked). Memory compatibility depends on CPU and configuration—check the CPU/Memory support list for details.
Does this motherboard have PCIe 5.0 support?
Yes, it features 1 x PCIe 5.0 x16 slot powered by the CPU for next-generation graphics cards and expansion devices. An additional PCIe 4.0 x4 slot is provided by the chipset.
What storage options are available?
The motherboard includes 3 x M.2 NVMe slots (supporting PCIe 5.0, 4.0, and 4.0) and 4 x SATA 6Gb/s ports. SATA storage supports RAID 0/1/5/10 via Intel Rapid Storage Technology.
What are the WiFi 7 capabilities?
The WiFi 7 module (802.11be) supports 2.4GHz, 5GHz, and 6GHz frequency bands with 160MHz bandwidth and up to 2.9Gbps transfer rate. Full WiFi 7 functionality on Windows 11 requires version 24H2 or later.
What video outputs does this motherboard provide?
The motherboard has 1 x DisplayPort 1.4, 1 x HDMI 2.1, and 1 x USB Type-C with DisplayPort support. All outputs support 4K@60Hz resolution.
Is this motherboard suitable for compact builds?
Yes, the mATX form factor (24.4 x 24.4 cm) is designed for compact cases whilst maintaining expansion capabilities including PCIe 5.0, multiple M.2 slots, and full feature set.
What warranty is included?
This motherboard includes a 36-month manufacturer's warranty covering defects in materials and workmanship.
