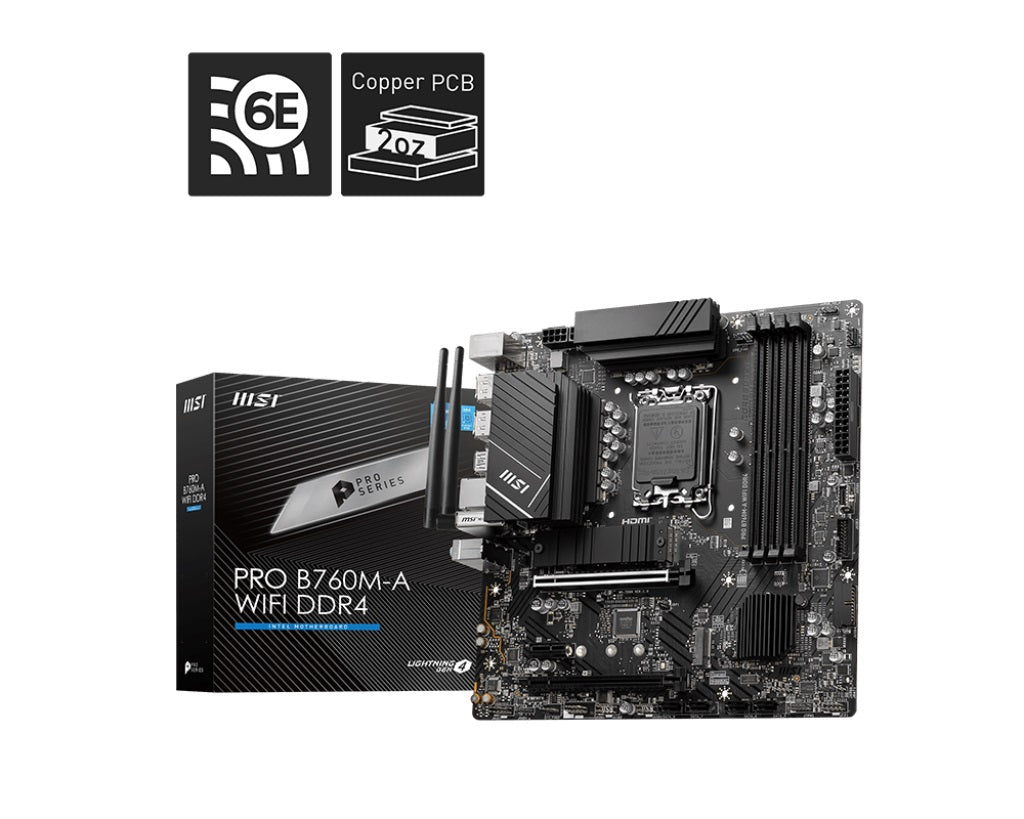

MSI PRO B760M-A WIFI DDR4 mATX Motherboard
MSI PRO B760M-A WIFI DDR4 mATX Motherboard
SKU:MBM-PROB760M-AWIFID4
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-PROB760M-AWIFID4 |
| Availability | In Stock |
Overview
- The MSI PRO B760M-A WIFI DDR4 motherboard brings Intel 13th Gen processing power to compact builds. Built on the B760 chipset, it supports both 12th and 13th Gen Intel processors while maintaining a practical mATX form factor ideal for space-constrained environments.
This board excels in business and office computing scenarios. The dual-channel DDR4 memory support extends to 128GB, while PCIe 4.0 M.2 slots deliver rapid storage performance. Built-in Wi-Fi eliminates the need for additional network cards, and the enhanced power design ensures stable operation under demanding workloads.
With comprehensive I/O connectivity including USB 3.2 Gen1 and Gen2 ports, dual video outputs, and support for multiple storage drives, the B760M-A WIFI provides the flexibility needed for modern business computing without consuming desktop space.
Specifications
| Chipset | Intel B760 |
|---|---|
| Socket | LGA 1700 |
| CPU Support | 12th and 13th Gen Intel Core, Pentium Gold, Celeron |
| Memory Slots | 4x DDR4 |
| Max Memory | 128GB |
| Memory Speed | DDR4 5333+MHz (OC) |
| Form Factor | mATX (243.84 x 243.84mm) |
| PCI-E Slots | 2x PCI-E x16 (1x PCIe 4.0 from CPU, 1x PCIe 3.0 from Chipset), 1x PCI-E x1 (PCIe 4.0 from Chipset x4) |
| M.2 Slots | 2x (M.2_1: PCIe 4.0 x4 from CPU, M.2_2: PCIe 4.0 x4/SATA from Chipset) |
| M.2 Compatibility | 2280, 2260, 2242 devices |
| SATA Ports | 4x SATA 6G |
| Video Outputs | 2x HDMI 2.1, 2x DisplayPort 1.4 (4K 60Hz) |
| USB Rear | 2x USB 2.0, 2x USB 3.2 Gen1 Type A, 2x USB 3.2 Gen2 Type A |
| USB Front | 4x USB 2.0, 4x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| Power Connectors | 1x ATX_PWR, 2x CPU_PWR (8-pin + 4-pin) |
| Internal Connectors | 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 2x Addressable RGB LED (V2), 1x RGB LED, 1x TPM 2.0 header |
| Networking | Wi-Fi integrated |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the MSI PRO B760M-A WIFI DDR4?
This motherboard supports 12th and 13th Gen Intel Core processors, as well as Pentium Gold and Celeron processors with LGA 1700 socket compatibility.
How much RAM can this motherboard support?
The board features 4 DDR4 slots with a maximum capacity of 128GB. It supports dual-channel DDR4 memory up to 5333+MHz (overclocked).
Does this motherboard have Wi-Fi?
Yes, the MSI PRO B760M-A WIFI DDR4 includes integrated Wi-Fi connectivity, eliminating the need for a separate network card.
What storage options does this motherboard offer?
It provides 2x M.2 slots (both PCIe 4.0 capable) supporting NVMe drives, and 4x SATA 6G ports for traditional drives. M.2 slots support 2280, 2260, and 2242 form factors.
Can I use this motherboard for 4K video output?
Yes, with integrated graphics CPUs, the board supports 4K 60Hz output via HDMI 2.1 or DisplayPort 1.4. Actual capability depends on your processor's integrated graphics.
Is this motherboard suitable for compact builds?
Yes, the mATX form factor (243.84 x 243.84mm) makes it ideal for smaller cases and space-constrained environments while maintaining full connectivity.
What warranty is included?
The MSI PRO B760M-A WIFI DDR4 comes with a 36-month manufacturer's warranty.
