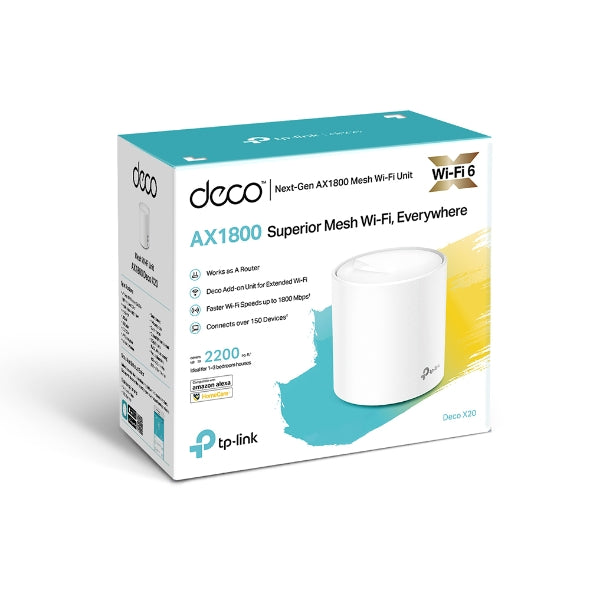

TP-Link Deco X20 AX1800 Mesh Wi-Fi 6 System
TP-Link Deco X20 AX1800 Mesh Wi-Fi 6 System
SKU:NWTL-DECOX20-1
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-DECOX20-1 |
| Availability | In Stock |
Overview
- The TP-Link Deco X20 is a single-unit AX1800 mesh Wi-Fi 6 system designed to deliver seamless whole-home coverage across properties up to 200 sqm. It combines Wi-Fi 6 technology with advanced features including OFDMA and MU-MIMO transmission, enabling simultaneous connectivity to multiple devices without performance degradation.
The system prioritises ease of use and security. Setup is guided through the Deco mobile app, and management can be performed locally or remotely. WPA3 encryption and TP-Link HomeCare provide layered security, including antivirus, parental controls, and quality of service (QoS) management to prioritise critical traffic.
With a Qualcomm quad-core processor, two Gigabit Ethernet ports, and internal antenna arrays, the Deco X20 operates in router or access point mode. Optional Ethernet backhaul and band steering optimise connection quality as devices move throughout the coverage area. The self-healing mesh technology maintains network stability and automatically selects the best path for data transmission.
This unit is suitable for households and small offices seeking straightforward, secure Wi-Fi 6 coverage without the complexity of traditional networking hardware.
Specifications
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6), 802.11ac, 802.11n, 802.11a (5 GHz); IEEE 802.11ax, 802.11n, 802.11g, 802.11b (2.4 GHz) |
|---|---|
| Frequency Bands | 5 GHz and 2.4 GHz dual-band |
| Total Data Rate | 1,800 Mbps (AX1800) |
| 5 GHz Data Rate | 1,201 Mbps |
| 2.4 GHz Data Rate | 574 Mbps |
| Modulation | 1024-QAM |
| Advanced Features | OFDMA, MU-MIMO, beamforming, band steering, AP steering, BSS colour, auto path selection, self-healing |
| Security Protocols | WPA3, WPA2-PSK, WPA-PSK |
| Encryption | WPA3 |
| Firewall | SPI firewall with access control blacklist |
| Processor | Qualcomm 1 GHz quad-core CPU |
| Ethernet Ports | 2 × Gigabit Ethernet (LAN/WAN) |
| Antennas | 4 internal antennas per unit |
| Coverage Area | Up to 200 sqm |
| Operating Modes | Router mode, access point mode |
| Backhaul | Optional Ethernet backhaul support |
| Management | Local management, remote management via mobile app |
| DHCP | Server and client support |
| WAN Type | Dynamic IP, static IP, PPPoE |
| Quality of Service | WMM (Wi-Fi Multimedia) |
| IPv6 | Supported |
| Port Forwarding | Supported |
| Transmit Power | FCC: <30 dBm; CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Physical Dimensions | Φ110 mm × 114 mm (Φ4.33 in. × 4.49 in.) |
| Reset Button | Yes (underside) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is Wi-Fi 6 and how does it benefit my network?
Wi-Fi 6 (802.11ax) is the latest wireless standard offering faster speeds, reduced latency, and improved efficiency when handling multiple devices simultaneously. The Deco X20 supports Wi-Fi 6 with OFDMA and MU-MIMO technology, allowing devices to connect at full speed without queuing.
Can I expand the Deco X20 system if I need more coverage?
This single-unit pack provides coverage up to 200 sqm. Additional Deco units can be purchased separately to expand coverage. They form a unified mesh network automatically, enabling seamless roaming throughout your property.
What makes WPA3 security better than WPA2?
WPA3 is the latest Wi-Fi security standard providing stronger encryption and protection against brute-force attacks. Combined with TP-Link HomeCare features including antivirus and network scanning, it delivers comprehensive protection against online threats.
Does the Deco X20 support both 2.4 GHz and 5 GHz bands?
Yes, the Deco X20 is a dual-band system operating on both 2.4 GHz (574 Mbps) and 5 GHz (1,201 Mbps). Band steering automatically directs devices to the optimal frequency for best performance.
Is the Deco X20 easy to set up?
Yes. Setup is guided through the Deco mobile app with step-by-step instructions. No advanced technical knowledge is required. Once configured, the system manages itself with automatic band steering and self-healing mesh technology.
Can I use the Deco X20 in access point mode?
Yes, the Deco X20 supports both router and access point modes, giving you flexibility in network topology. This allows integration with existing network infrastructure if required.
What is Ethernet backhaul and why might I need it?
Ethernet backhaul uses a physical cable connection between mesh units instead of wireless, improving stability and throughput. This is optional and beneficial in larger properties or areas with wireless interference.
What is the warranty period?
The TP-Link Deco X20 includes a 3-year manufacturer's warranty covering hardware defects and malfunctions.
