DeepCool MACUBE 110 Micro-ATX PC Case
DeepCool MACUBE 110 Micro-ATX PC Case
SKU:CAD-MACUBE110-BK

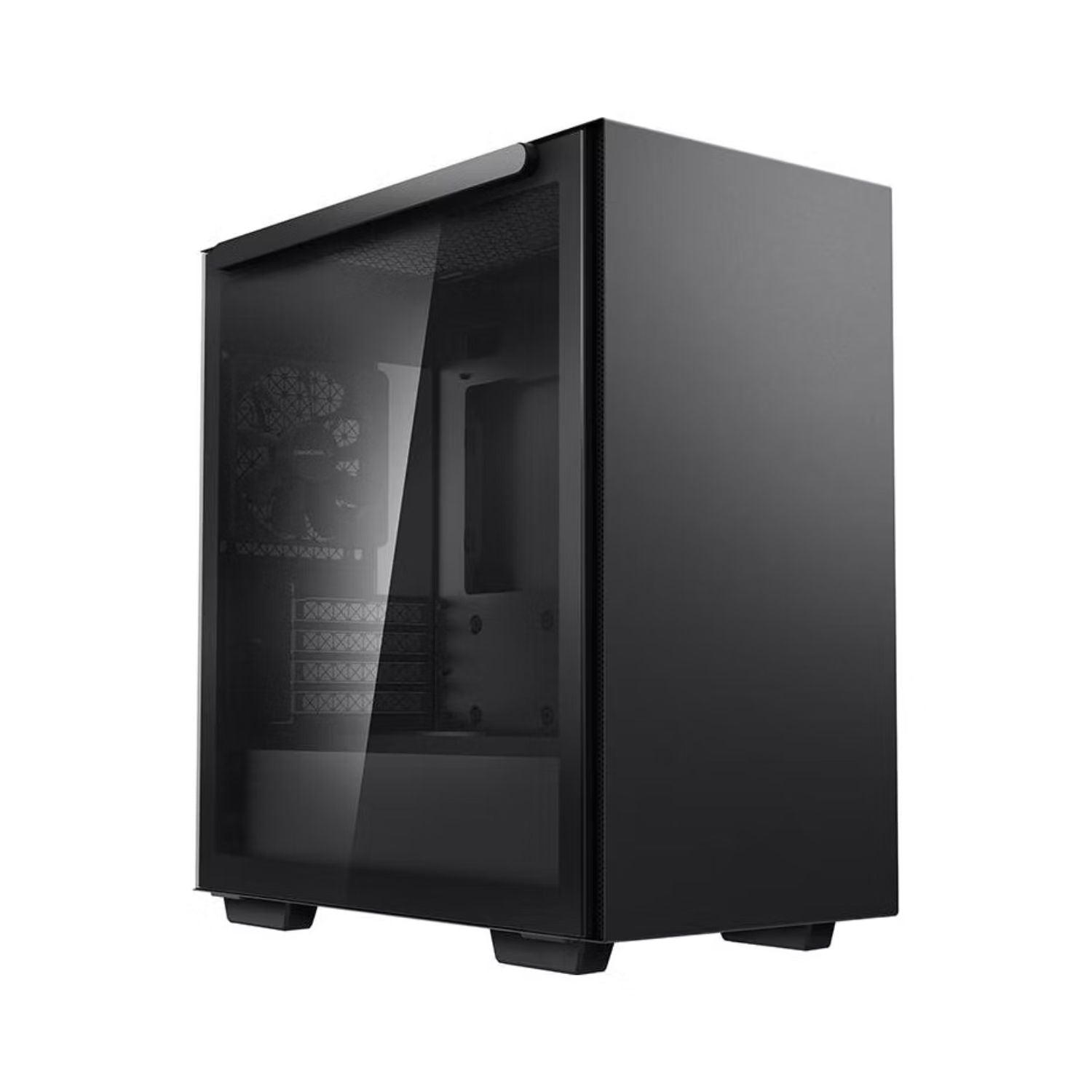

The DeepCool MACUBE 110 is a minimalistic Micro-ATX case designed for compact system builds. Featuring a magnetic tempered glass panel, removable drive cage, and adjustable GPU holder, it delivers clean aesthetics and practical functionality for IT professionals and system builders.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Cases & Accessories |
| SKU | CAD-MACUBE110-BK |
| Availability | In Stock |
Overview
- The DeepCool MACUBE 110 is a well-engineered Micro-ATX case that combines minimalist design with practical build flexibility. The magnetic tempered glass panel provides an elegant showcase for internal components whilst maintaining the case's refined aesthetic. Its compact dimensions (400mm × 225mm × 431mm) make it ideal for desk setups and space-conscious environments without compromising cooling or component compatibility.
The case supports extensive cooling options, accommodating radiators up to 280mm on the front and top panels, plus up to six 120mm or four 140mm case fans. The removable drive cage and adjustable GPU holder give builders flexibility in system configuration, whilst the included rear 120mm fan provides immediate functionality out of the box. Internal cable management features a 20mm clearance zone, enabling clean routing and improved airflow.
Designed for Mini-ITX and Micro-ATX motherboards, the MACUBE 110 supports ATX PSUs up to 160mm in length and accommodates GPU cards up to 320mm. With four expansion slots and dual 2.5-inch and 3.5-inch drive bays, it offers solid expandability for business and professional computing needs.
Specifications
| Motherboard Compatibility | Mini-ITX, Micro-ATX |
|---|---|
| External Dimensions | 400mm (L) × 225mm (W) × 431mm (H) |
| Internal Materials | ABS, SPCC steel, tempered glass |
| Colour | Black |
| Weight (Net) | 6.2 kg |
| Weight (Gross) | 7.3 kg |
| 3.5-inch Drive Bays | 2 |
| 2.5-inch Drive Bays | 2 |
| Expansion Slots | 4 |
| Power Supply Support | ATX PS2 (max length 160mm) |
| I/O Ports | 2× USB 3.0, 1× 3.5mm audio jack |
| CPU Cooler Height Limit | 165mm |
| GPU Length Limit | 320mm |
| Pre-installed Cooling | 1× 120mm rear fan |
| Front Fan Configuration | 3× 120mm or 2× 140mm |
| Top Fan Configuration | 2× 120mm or 2× 140mm |
| Liquid Cooler Support | Front: 120/140/240/280mm; Top: 120/140/240/280mm; Rear: 120mm |
| Cable Management Clearance | 20mm |
| Special Features | Magnetic tempered glass panel, removable drive cage, adjustable GPU holder, mesh top panel |
| Warranty | 12 months |
| EAN Code | 6933412714385 |
Key Features
Ideal For
FAQs
What motherboard sizes does the MACUBE 110 support?
The MACUBE 110 supports Mini-ITX and Micro-ATX motherboards, making it ideal for compact system builds whilst maintaining excellent component compatibility.
Can I fit a large graphics card in this case?
Yes, the case accommodates GPU cards up to 320mm in length. The adjustable GPU holder helps secure larger graphics cards and distributes weight evenly.
What cooling options are available?
The case supports up to six 120mm or four 140mm fans, plus liquid coolers up to 280mm on the front and top panels. A 120mm rear fan comes pre-installed.
How much storage capacity does the case offer?
The MACUBE 110 includes two 3.5-inch drive bays and two 2.5-inch drive bays, providing flexibility for HDD and SSD configurations in compact builds.
Is the tempered glass panel removable and easy to clean?
Yes, the magnetic tempered glass side panel is easily removable for access to internal components and cleaning without requiring tools.
What power supply size is compatible with this case?
The case supports ATX PS2 power supplies with a maximum length of 160mm, which covers most standard PSUs suitable for Micro-ATX builds.
