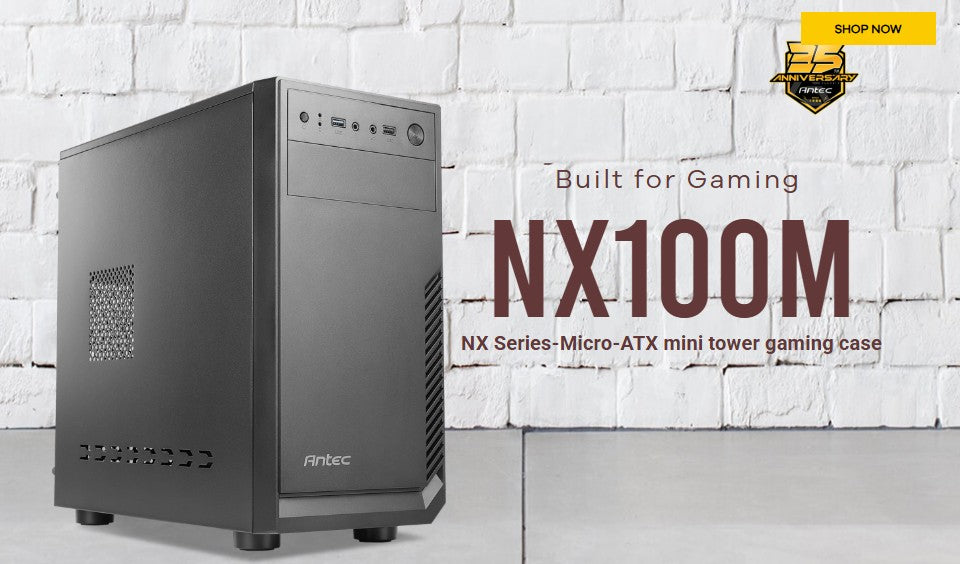

Antec NX100M Micro-ATX Case with 450W Power Supply
Antec NX100M Micro-ATX Case with 450W Power Supply
SKU:CAA-NX100M450
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | CAA-NX100M450 |
| Availability | In Stock |
Overview
- The Antec NX100M is a space-efficient micro-ATX case purpose-built for business and office environments. It combines a compact footprint with a 450W continuous power supply, eliminating the need for separate PSU procurement and reducing setup complexity for IT teams and system integrators.
Designed with business users in mind, the NX100M offers practical connectivity options including front-panel USB 3.0 for modern peripherals, alongside traditional USB 2.0 support. The case accommodates standard micro-ATX motherboards whilst providing sufficient expansion options for business-class storage and peripheral cards.
Thermal management is handled through a pre-installed 80mm rear fan and modular fan support, allowing IT departments to balance performance and noise levels. The compact dimensions make it ideal for office environments where desk and rack space is limited, whilst the included power supply ensures immediate usability without additional component sourcing.
Specifications
| Form Factor | Micro-ATX Mini Tower |
|---|---|
| Dimensions (D × W × H) | 380 × 173 × 367 mm |
| Motherboard Support | Micro-ATX |
| Materials | SPCC steel, ABS plastic |
| Expansion Slots | 4 PCI |
| Drive Bays | {"5.25\" ODD"=>"1", "3.5\" HDD"=>"2", "2.5\" SSD"=>"2"} |
| Fan Support | {"Front"=>"1 × 120 mm", "Side Panel"=>"1 × 80 mm", "Rear"=>"1 × 80 mm"} |
| Pre-installed Fans | 1 × 80 mm rear fan |
| Front Panel Connectors | Power, Reset, 1 × USB 3.0, 1 × USB 2.0, Mic/HD-Audio |
| GPU Clearance | ≤ 310 mm |
| CPU Cooler Clearance | ≤ 130 mm |
| Power Supply Clearance | ≤ 200 mm |
| Power Supply | 450W continuous (included) |
| Power Connectors | 8-pin EPS, 2 × PCIe |
| Side Panel | Solid |
| Net Weight | 3 kg |
| Gross Weight | 3.6 kg |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
Does the Antec NX100M case include a power supply?
Yes, the NX100M bundle includes a 450W continuous power supply. No additional PSU purchase is required.
What motherboard types are compatible with this case?
The NX100M supports micro-ATX motherboards only. It is not compatible with full-size ATX or mini-ITX boards.
Can I install a high-end graphics card in this case?
The case supports graphics cards up to 310mm in length. Verify your GPU specifications before purchase to ensure compatibility.
How many fans are included and can I add more?
One 80mm rear fan is pre-installed. The case supports additional fans in the front (120mm) and side panel (80mm) positions for enhanced cooling.
Is the NX100M suitable for server applications?
The NX100M is designed primarily for business office and small workstation builds. For dedicated server applications, consider larger, purpose-built server chassis.
What USB connectivity options are available on the front panel?
The front panel includes 1 × USB 3.0 port and 1 × USB 2.0 port, plus audio connectors for microphone and headphones.
What is the warranty period for this case?
The Antec NX100M includes a 24-month manufacturer's warranty covering defects in materials and workmanship.
