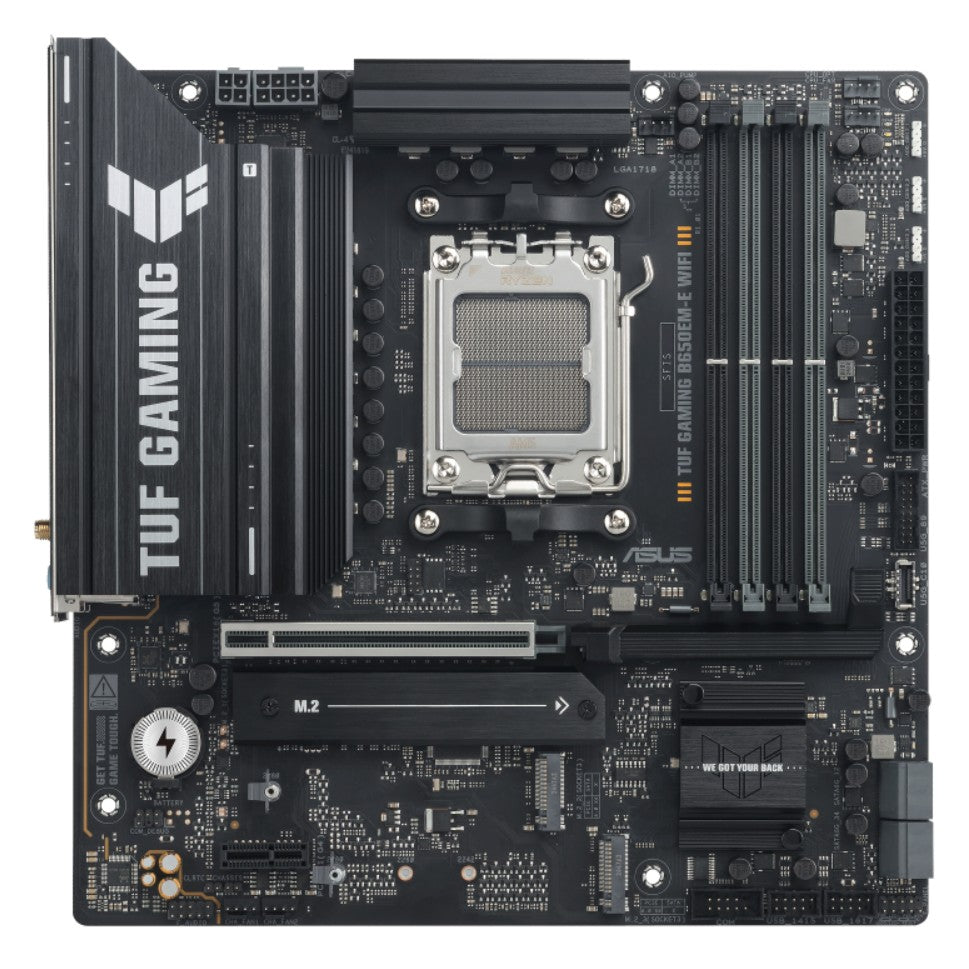

ASUS TUF GAMING B650EM-E WIFI Micro-ATX Motherboard
ASUS TUF GAMING B650EM-E WIFI Micro-ATX Motherboard
SKU:MBA-B650EM-E-TUFWF
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B650EM-E-TUFWF |
| Availability | Out of Stock |
Overview
- The ASUS TUF GAMING B650EM-E WIFI motherboard combines cutting-edge AMD B650 chipset features with legendary TUF durability. Engineered with military-grade components and an upgraded power solution, this micro-ATX board supports AMD Ryzen 9000, 8000, and 7000 Series processors with PCIe 5.0 performance and comprehensive cooling.
Designed for builders who demand both performance and reliability, the B650EM-E WIFI delivers next-generation storage speeds via PCIe 5.0 M.2 slots and modern connectivity through Wi-Fi 6E, 2.5Gb Ethernet, and multiple USB standards. The board undergoes rigorous endurance testing to ensure stability under demanding workloads, from intensive gaming marathons to AI-driven applications.
With four DIMM slots supporting up to 256GB DDR5, advanced overclocking profiles (EXPO and AEMP), and a comprehensive audio system with 7.1 Surround Sound, this motherboard provides the foundation for premium computing experiences. The micro-ATX form factor makes it ideal for compact builds without sacrificing features or expansion options.
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B650EM-E WIFI |
| Product Type | Micro-ATX Motherboard |
| Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| CPU Compatibility | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB DDR5 |
| Memory Speed Support | Up to 8000+ MT/s (OC) with Ryzen 9000, 8000, 7000 Series |
| Memory Features | ECC and Non-ECC support, Dual Channel, EXPO, OptiMem II, AEMP |
| PCIe Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x1 |
| M.2 Slots | 3 x M.2 slots (varies by CPU: up to PCIe 5.0 x4 on M.2_1) |
| SATA Ports | 4 x SATA 6Gb/s |
| Storage RAID | RAID 0/1/5/10 support (varies by processor generation) |
| Display Outputs | 2 x DisplayPort, 1 x HDMI |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz bands |
| Bluetooth | Bluetooth 5.2 |
| Rear USB Ports | 2 x USB 10Gbps (1 Type-A + 1 Type-C), 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| Front USB Headers | 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header (2 additional ports), 2 x USB 2.0 headers (4 additional ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC, 24-Bit/192 kHz playback |
| Audio Features | Audio shielding, Premium audio capacitors, Dedicated audio PCB layers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | Wake-on-LAN (WOL) by PME, PXE |
| Operating System Support | Windows 11, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is this motherboard compatible with AMD Ryzen 9000 series processors?
Yes, the ASUS TUF GAMING B650EM-E WIFI fully supports AMD Ryzen 9000 Series processors on Socket AM5. It also supports Ryzen 8000 and 7000 Series processors, with varying feature support (such as PCIe 5.0 availability).
What is the maximum amount of RAM this motherboard supports?
The motherboard supports up to 256GB of DDR5 memory across its 4 DIMM slots. Memory speeds support up to 8000+ MT/s (overclock) with compatible Ryzen processors.
Does this motherboard have PCIe 5.0 support?
Yes, the primary M.2_1 slot and PCIe x16 slot support PCIe 5.0 on Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series support PCIe 4.0 on these slots.
What wireless connectivity options are available?
The motherboard features Wi-Fi 6 (802.11ax) with 1x1 configuration supporting 2.4/5GHz bands, plus Bluetooth 5.2 for wireless peripheral connectivity.
How many M.2 drives can I install?
The motherboard has 3 x M.2 slots. The primary M.2_1 slot supports up to PCIe 5.0 x4 (Ryzen 9000/7000), while M.2_2 and M.2_3 support PCIe 4.0 x4, accommodating up to three NVMe SSDs.
What overclocking features does this motherboard offer?
The B650EM-E WIFI supports AMD EXPO for optimised memory overclocking profiles, AEMP (ASUS Enhanced Memory Profile), and OptiMem II technology for enhanced stability during overclocking.
Is this a full-size ATX motherboard?
No, this is a micro-ATX motherboard (24.4 cm x 24.4 cm), making it more compact than standard ATX boards while retaining four DIMM slots and comprehensive expansion options.
What is the warranty period?
The ASUS TUF GAMING B650EM-E WIFI includes a 36-month manufacturer warranty.
