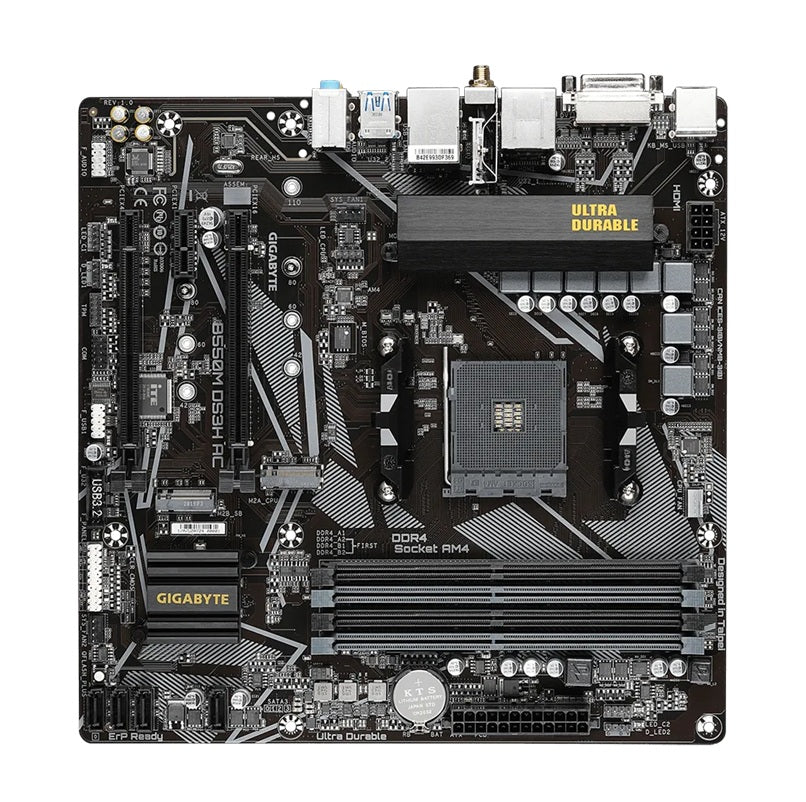

Gigabyte B550M DS3H AC AM4 Micro ATX Motherboard

Gigabyte B550M DS3H AC AM4 Micro ATX Motherboard

MBG-B550MDS3HAC-R2

The Gigabyte B550M DS3H AC is a compact AM4 micro ATX motherboard designed for AMD Ryzen builds. Featuring Wi-Fi AC connectivity, M.2 NVMe support, and comprehensive USB 3.2 ports, it delivers reliable performance and expansion for budget-conscious system builders and small fo...
$149.27 AUD
$149.27 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandGigabyte
CategoryMotherboards
SKUMBG-B550MDS3HAC-R2
AvailabilityOut of Stock
Gigabyte B550M DS3H AC AM4 Micro ATX Motherboard$149.27
$149.27
Overview
  • The Gigabyte B550M DS3H AC is a feature-rich micro ATX motherboard purpose-built for AMD Ryzen processors on the AM4 socket. Designed for builders prioritising compact form factors without compromising connectivity, it combines the B550 chipset's stability with integrated Wi-Fi AC, dual M.2 NVMe support, and extensive USB 3.2 ports for modern peripherals and storage devices.

    This motherboard excels in space-constrained builds where case size matters but performance and expansion capability cannot be sacrificed. The 4x DDR4 slot configuration supports up to 128 GB of memory, making it suitable for multitasking workstations and content creation systems. Gigabyte's RAID support (0/1/10) enables redundancy for critical data applications.

    With Windows 11 64-bit support, AMI UEFI BIOS, and a solid 36-month warranty, the B550M DS3H AC provides confidence for both new builders and experienced system integrators. The integrated Realtek GbE LAN and Wi-Fi AC reduce the need for additional networking cards, streamlining builds and reducing overall system cost.
Specifications
BrandGigabyte
ModelB550M DS3H AC
Form FactorMicro ATX
Dimensions244mm x 244mm
CPU SocketAMD AM4
ChipsetAMD B550
Supported ProcessorsAMD Ryzen
Memory TypeDDR4
Memory Slots4x DIMM
Maximum Memory128 GB
Maximum Single DIMM32 GB
Expansion Slots1x PCI Express x16 slot
M.2 Connectors2x (M2A_CPU Socket 3)
SATA Ports4x SATA III
RAID SupportRAID 0, RAID 1, RAID 10
Rear USB 3.2 Ports4x Gen 1
Internal USB 3.2 Headers2x Gen 1
Rear USB 2.0 Ports4x
Internal USB 2.0 Headers2x
Total USB Ports10x USB 3.2 and USB 2.0
Audio CodecRealtek Audio CODEC
LAN ControllerRealtek GbE (10/100/1000 Mbit)
Wireless ModuleIntel Wi-Fi AC 3168
I/O ControlleriTE I/O Controller Chip
BIOS TypeAMI UEFI
BIOS Size256 Mbit Flash
BIOS StandardsPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating SystemsWindows 11 64-bit, Windows 10 64-bit
Warranty36 months
Key Features
AMD B550 chipset with full AM4 socket support for Ryzen processors
Integrated Intel Wi-Fi AC 3168 for wireless connectivity
4x DDR4 DIMM slots supporting up to 128 GB of memory
2x M.2 connectors for NVMe SSD expansion
4x USB 3.2 Gen 1 ports plus additional USB 2.0 connectivity
Micro ATX form factor (24.4cm x 24.4cm) ideal for compact builds
RAID 0/1/10 support for storage redundancy and performance
36-month warranty with AMI UEFI BIOS and Windows 11 support
Ideal For
Budget-conscious builders creating compact AMD Ryzen systems
Small form factor PC builds requiring reliable AM4 platform support
Systems requiring Wi-Fi connectivity without additional expansion cards
Workstations needing fast NVMe storage and DDR4 memory expansion
IT professionals assembling standardised office or gaming PCs
FAQs
What AMD Ryzen processors are compatible with the Gigabyte B550M DS3H AC?

The motherboard supports all AMD Ryzen processors with AM4 socket compatibility, including Ryzen 5000, 3000, and earlier generations. Refer to AMD's official compatibility list and Gigabyte's BIOS release notes for your specific processor model.

Can I use this motherboard in a small form factor case?

Yes. The Micro ATX form factor (244mm x 244mm) fits in most standard ATX and micro ATX cases, as well as many compact cases that support Micro ATX. Always verify your case specifications before purchasing.

How much memory can this motherboard support?

The B550M DS3H AC has 4 DDR4 DIMM slots supporting up to 128 GB of total memory (32 GB per DIMM). Speed and compatibility depend on your chosen modules and BIOS version.

Does this motherboard have Wi-Fi built-in?

Yes. The B550M DS3H AC includes integrated Intel Wi-Fi AC 3168 (802.11ac) for wireless connectivity without requiring a separate expansion card.

What storage options does this motherboard support?

The motherboard features 4x SATA III ports for traditional drives and 2x M.2 connectors supporting NVMe SSDs. It also supports RAID 0, 1, and 10 configurations for storage redundancy.

Is this motherboard compatible with Windows 11?

Yes. The B550M DS3H AC officially supports Windows 11 64-bit and Windows 10 64-bit with the latest BIOS updates.

What is the warranty period?

The Gigabyte B550M DS3H AC includes a 36-month manufacturer warranty covering defects in materials and workmanship.
