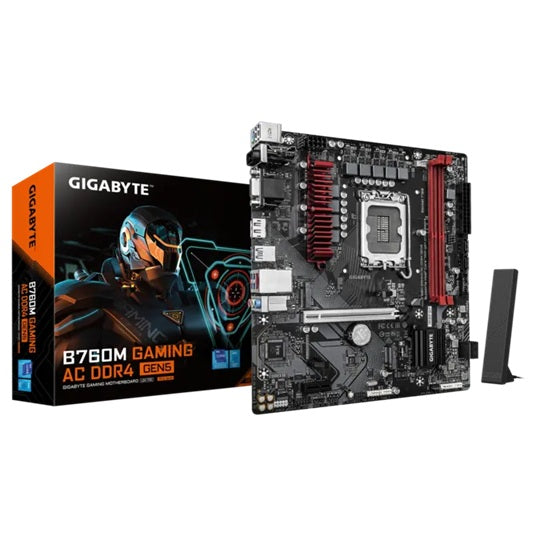

Gigabyte B760M GAMING AC DDR4 GEN5 Motherboard
Gigabyte B760M GAMING AC DDR4 GEN5 Motherboard
SKU:MBG-B760MGACD4GEN5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B760MGACD4GEN5 |
| Availability | Out of Stock |
Overview
- The Gigabyte B760M GAMING AC DDR4 GEN5 is a compact yet feature-rich Micro ATX motherboard built around the Intel B760 chipset. It fully supports 12th, 13th, and 14th Generation Intel Core processors via the LGA1700 socket, making it an ideal choice for modern gaming and productivity builds where size and performance matter.
This motherboard excels with its PCIe 5.0 x16 slot, enabling future-ready graphics cards and NVMe SSDs to reach peak speeds. The dual M.2 connectors both support PCIe 4.0, and the combination of 4 SATA ports with RAID capabilities provides flexible storage options. Memory-wise, it supports up to 64GB of DDR4 across two DIMM slots, with XMP profiles for optimised overclocking.
Connectivity is well covered with integrated 2.5GbE Realtek LAN, Wi-Fi AC, and multiple video outputs (D-Sub, HDMI 2.1, DisplayPort 1.2). The on-board Realtek audio codec supports up to 7.1-channel surround sound. Bundled software includes Norton Internet Security (OEM version) and Gigabyte's Control Center for system management and Q-Flash BIOS updates.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B760M GAMING AC DDR4 GEN5 |
| Form Factor | Micro ATX |
| Board Dimensions | 24.4cm x 22.5cm |
| Chipset | Intel B760 Express |
| CPU Socket | LGA1700 |
| Supported Processors | 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron |
| Memory Type | DDR4 |
| Memory Slots | 2 x DDR4 DIMM |
| Maximum Memory | 64GB |
| Memory Speeds | DDR4 5333, 5133, 5000, 4933, 4800, 4700, 4600, 4500, 4400, 4300, 4266, 4133, 4000, 3866, 3800, 3733, 3666, 3600, 3466, 3400, 3333, 3300, 3200, 3000, 2933, 2666, 2400, 2133 MT/s |
| XMP Support | Yes |
| ECC Memory Support | Un-buffered DIMM (non-ECC mode) |
| Memory Architecture | Dual channel |
| Primary M.2 Slot | 1 x M.2 Socket 3, type 2280, PCIe 4.0 x4/x2 (CPU-connected) |
| Secondary M.2 Slot | 1 x M.2 Socket 3, type 2280, PCIe 4.0 x4/x2 (Chipset-connected) |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| RAID Support | RAID 0, 1, 5, 10 for SATA devices |
| Primary PCIe Slot | 1 x PCI Express x16, PCIe 5.0, running at x16 |
| Secondary PCIe Slot | 1 x PCI Express x1, PCIe 3.0, running at x1 |
| D-Sub Output | 1 x D-Sub, maximum 1920x1200@60Hz |
| HDMI Output | 1 x HDMI 2.1, maximum 4096x2160@60Hz, HDCP 2.3 |
| DisplayPort Output | 1 x DisplayPort 1.2, maximum 4096x2304@60Hz, HDCP 2.3 |
| LAN Chipset | Realtek 2.5GbE |
| LAN Speed | 2.5 Gbps / 1 Gbps / 100 Mbps |
| Wireless | Wi-Fi AC |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2, 4, 5.1, 7.1-channel |
| S/PDIF Output | Yes |
| I/O Controller | iTE I/O Controller Chip |
| Software | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup, Norton Internet Security (OEM) |
| Supported OS | Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which Intel processors are compatible with the B760M GAMING AC DDR4 GEN5?
This motherboard supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket. All modern Intel processors in these generations are compatible.
Can I use DDR5 memory with this board?
No. The B760M GAMING AC DDR4 GEN5 is designed exclusively for DDR4 memory. It supports DDR4 modules up to 64GB across two DIMM slots.
What is the maximum storage capacity supported?
The motherboard includes 4 x SATA 6Gb/s ports and 2 x M.2 slots (both PCIe 4.0). Maximum capacity depends on your chosen drives. RAID support (0, 1, 5, 10) is available for SATA devices.
Does this motherboard support PCIe 5.0 graphics cards?
Yes. The primary PCIe x16 slot supports PCIe 5.0 and can accommodate PCIe 5.0 graphics cards running at full x16 speeds.
What wireless connectivity options does it have?
The board includes integrated Wi-Fi AC and a Realtek 2.5GbE LAN port for wired connectivity. Both provide modern connectivity for gaming and productivity.
Can I connect multiple monitors to this motherboard?
Yes. The on-board graphics offer three video outputs: D-Sub (max 1920x1200@60Hz), HDMI 2.1 (max 4096x2160@60Hz), and DisplayPort 1.2 (max 4096x2304@60Hz). You can use multiple outputs simultaneously.
Is overclocking supported?
Yes. The motherboard supports XMP memory profiles for optimised overclocking. Gigabyte's Control Center software provides overclocking tools and monitoring.
What is the warranty period?
The Gigabyte B760M GAMING AC DDR4 GEN5 includes a 3-year manufacturer warranty.
