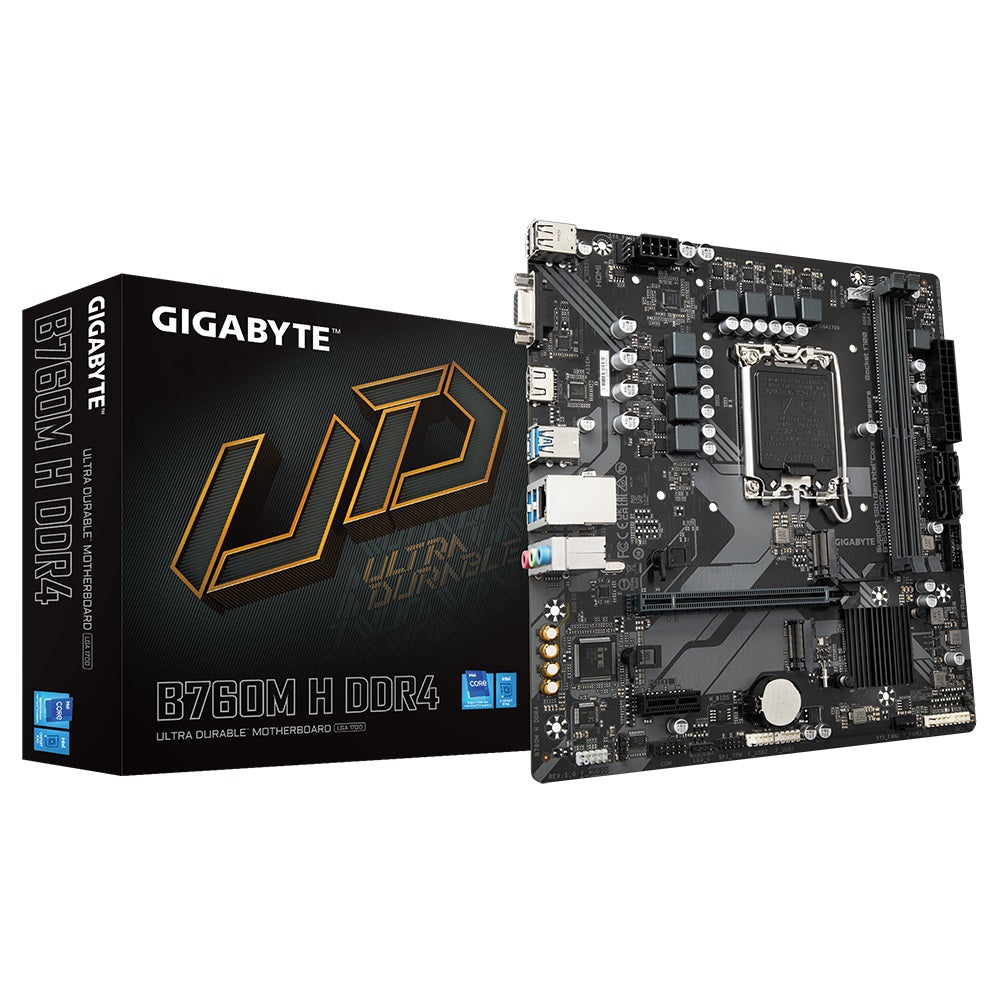

Gigabyte B760M H DDR4 Micro-ATX Motherboard
Gigabyte B760M H DDR4 Micro-ATX Motherboard
SKU:MBG-B760MHDDR4
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B760MHDDR4 |
| Availability | In Stock |
Overview
- The Gigabyte B760M H DDR4 is a compact Micro-ATX motherboard built on the Intel B760 chipset, supporting 12th and 13th generation Intel Core processors. With its dual DDR4 memory slots, PCIe 4.0 support, and dual M.2 connectors, it provides a solid foundation for business systems, workstations, and custom builds where space efficiency matters.
This motherboard combines practical connectivity with modern storage options. The dual M.2 slots enable fast NVMe SSD configuration, while four SATA ports support traditional storage. The rear I/O includes four USB 3.2 Gen 1 ports, integrated graphics output, and Gigabit Ethernet, making it suitable for both office environments and specialist applications.
Designed for reliability, the B760M H DDR4 supports up to 64GB of DDR4 memory and includes features such as XMP profile support for optimised performance. Its compact Micro-ATX form factor (23.0cm x 21.5cm) fits smaller chassis without compromising expandability, making it an efficient choice for organisations seeking cost-effective system upgrades.
Specifications
| Processor Socket | Intel LGA1700 |
|---|---|
| Supported Processors | 12th and 13th generation Intel Core, Pentium Gold, and Celeron |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX (23.0cm x 21.5cm) |
| Memory Type | DDR4 |
| Memory Sockets | 2x DDR4 DIMM |
| Maximum Memory | 64GB (32GB per DIMM) |
| Memory Speeds Supported | DDR4-3200, DDR4-3000, DDR4-2933, DDR4-2666, DDR4-2400, DDR4-2133 MT/s |
| Memory Features | Dual channel architecture, XMP support, ECC Un-buffered and non-ECC Un-buffered support |
| PCIe Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) |
| Storage Interfaces | 2x M.2 Socket 3 (NVMe), 4x SATA 6Gb/s |
| Integrated Graphics | Intel HD Graphics with HDMI 2.0 and D-Sub support |
| Graphics Output | 1x HDMI (up to 4096x2160@60Hz), 1x D-Sub (up to 1920x1200@60Hz) |
| USB 3.2 Gen 1 Ports | 4x rear panel |
| USB 2.0 Ports | 2x rear panel |
| USB Headers | 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers |
| Network | 1x Gigabit Ethernet (RJ-45) |
| Audio | 3x audio jacks, S/PDIF Out header |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin ATX 12V |
| Fan Headers | 1x CPU fan, 2x system fan headers |
| Additional Headers | 1x RGB LED strip, 1x TPM, 1x serial port, Clear CMOS jumper |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with the Gigabyte B760M H DDR4?
This motherboard supports 12th and 13th generation Intel Core processors, including Pentium Gold and Celeron models, all using the LGA1700 socket.
What is the maximum amount of RAM this motherboard supports?
The B760M H DDR4 supports up to 64GB of DDR4 memory across its two DIMM sockets, with a maximum of 32GB per module. It supports speeds from DDR4-2133 to DDR4-3200 MT/s.
Can I use this motherboard with NVMe SSDs?
Yes, the motherboard includes two M.2 Socket 3 connectors for NVMe SSDs, both supporting PCIe connectivity for fast storage performance.
Does this motherboard have built-in graphics?
Yes, it features integrated Intel HD Graphics with HDMI 2.0 (up to 4096x2160@60Hz) and D-Sub (up to 1920x1200@60Hz) output options, eliminating the need for a discrete graphics card for office and general use.
What is the physical size of the B760M H DDR4?
The motherboard uses the Micro-ATX form factor, measuring 23.0cm x 21.5cm, making it suitable for compact cases and systems where space is limited.
How many SATA drives can I connect?
The motherboard provides 4x SATA 6Gb/s connectors, allowing you to connect up to four SATA-based hard drives or SSDs for storage expansion.
Is XMP memory support included?
Yes, the B760M H DDR4 supports Extreme Memory Profile (XMP) memory modules, enabling optimised performance with compatible DDR4 RAM.
What warranty is included with this motherboard?
The Gigabyte B760M H DDR4 comes with a 36-month manufacturer warranty, providing three years of coverage.
