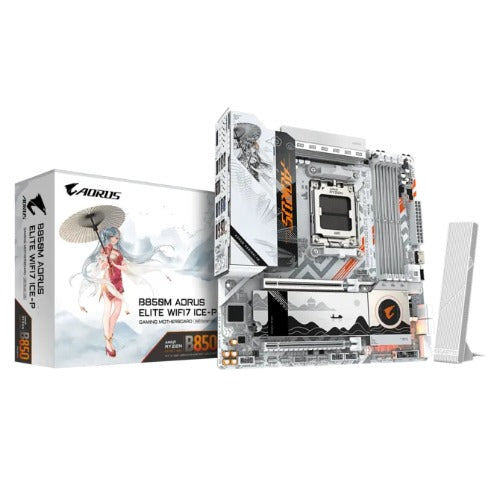

Gigabyte B850M A ELT WF7 ICE-P Micro ATX Motherboard
Gigabyte B850M A ELT WF7 ICE-P Micro ATX Motherboard
SKU:MBG-B850MAELTWFICE-P
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B850MAELTWFICE-P |
| Availability | Out of Stock |
Overview
- The Gigabyte B850M A ELT WF7 ICE-P is a Micro ATX motherboard designed for AMD Ryzen 7000 and 8000 series processors. Built on the B850 chipset, it delivers comprehensive connectivity and memory expansion options suitable for both professional and enthusiast applications.
With support for up to 256 GB of DDR5 memory and dual-channel architecture, this motherboard provides the performance foundation for demanding workloads. The integrated Realtek 2.5GbE LAN ensures fast network connectivity, whilst comprehensive USB 3.2 ports support modern peripherals and external storage devices.
The compact Micro ATX form factor makes it ideal for organisations with space constraints or those building small form factor systems. Backed by Gigabyte's 36-month warranty, it offers long-term reliability for business-critical deployments.
Specifications
| CPU Socket | AMD Socket AM5 |
|---|---|
| Chipset | AMD B850 |
| Form Factor | Micro ATX (244 x 244 mm) |
| Memory Sockets | 4 x DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| Memory Support | Non-ECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 |
| Storage Interface | 1 x M.2 (Socket 3, M key, CPU-integrated) |
| Network | Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek ALC1220 CODEC |
| Onboard Graphics | Integrated AMD Radeon Graphics |
| USB Type-C Ports (Gen 2) | 1 x rear + 1 x internal header (Gen 2x2) |
| USB Type-A Ports (Gen 2) | 2 x rear |
| USB Ports (Gen 1) | 4 x (1 rear + 2 internal header) |
| USB 2.0/1.1 Ports | 8 x total (4 rear + 4 internal header) |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | AMI UEFI (256 Mbit flash) |
| BIOS Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Operating System Support | Windows 11 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with this motherboard?
The B850M A ELT WF7 ICE-P supports AMD Ryzen 7000 and 8000 series processors via the Socket AM5 connector.
How much RAM can this motherboard support?
It supports up to 256 GB of DDR5 memory across four DIMM slots using dual-channel architecture.
Is this motherboard suitable for small form factor builds?
Yes. With a Micro ATX form factor measuring 244 x 244 mm, it is designed for compact systems whilst maintaining comprehensive connectivity.
What is the network speed of the integrated LAN?
The Realtek 2.5GbE LAN chip supports 2.5 Gbps, 1 Gbps, and 100 Mbps connectivity.
How many USB 3.2 Gen 2 ports does it have?
It includes 2 x USB 3.2 Gen 2 Type-A ports on the rear, 1 x USB Type-C Gen 2 port on the rear, and 1 x USB Type-C Gen 2x2 port via internal header.
What warranty is included?
Gigabyte provides a 36-month manufacturer warranty.
Does it have integrated graphics?
Yes. It features an integrated AMD Radeon Graphics processor suitable for office applications, media playback, and general desktop use.
