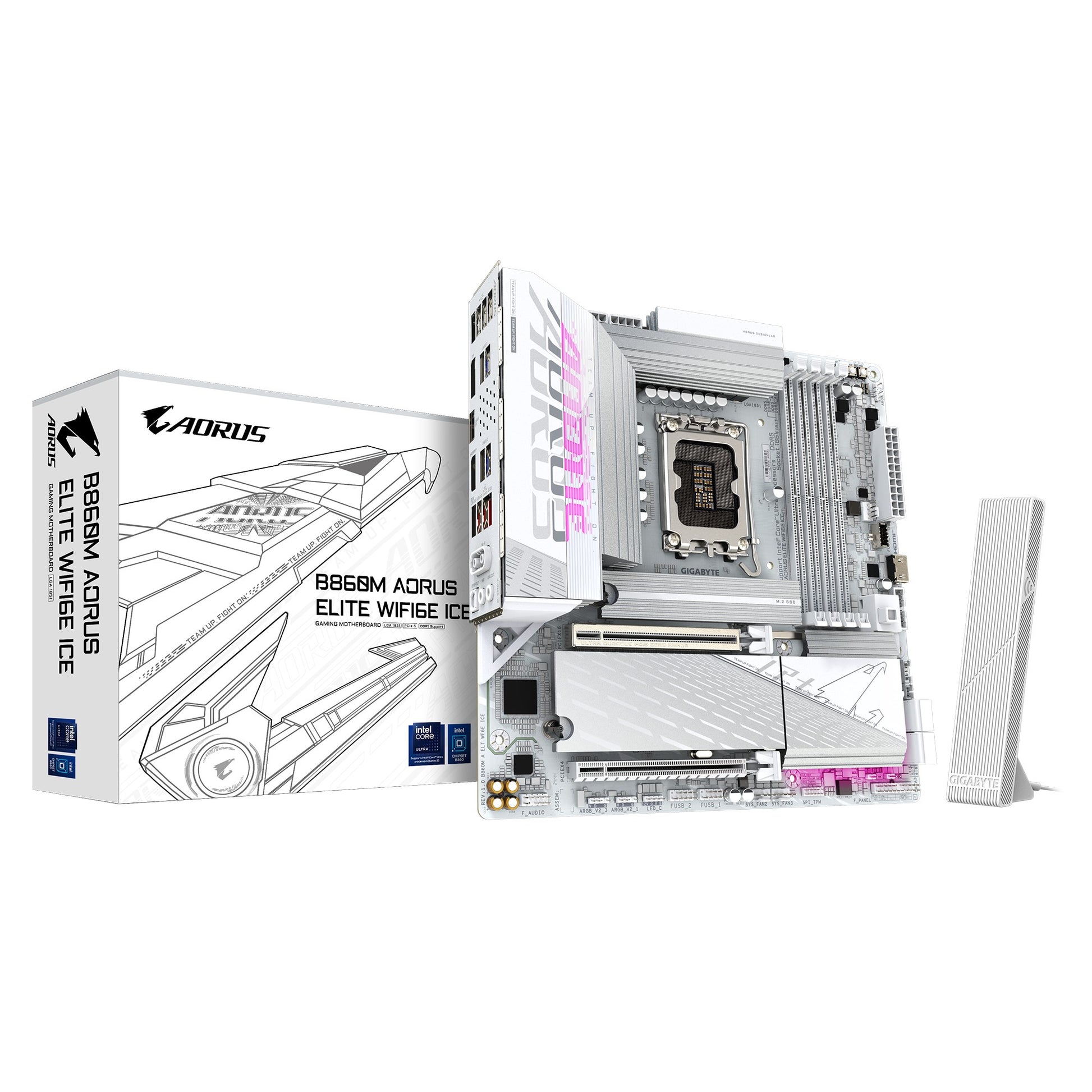

Gigabyte B860M A ELT WF6E ICE Micro-ATX Motherboard

Gigabyte B860M A ELT WF6E ICE Micro-ATX Motherboard

MBG-B860MAELTWF6EICE

The Gigabyte B860M A ELT WF6E ICE is a micro-ATX motherboard for Intel Core Ultra processors (LGA1851). Featuring DDR5 memory support up to 256 GB, PCIe 5.0, Wi-Fi 6E, and comprehensive connectivity, it delivers reliable performance for business workstations and compact builds.
$316.25 AUD
$316.25 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandGigabyte
CategoryMotherboards
SKUMBG-B860MAELTWF6EICE
AvailabilityIn Stock
Gigabyte B860M A ELT WF6E ICE Micro-ATX Motherboard$316.25
$316.25
Overview
  • The Gigabyte B860M A ELT WF6E ICE is a feature-rich micro-ATX motherboard engineered for Intel Core Ultra processors on the LGA1851 socket. Designed to maximise performance in space-constrained environments, it combines next-generation connectivity standards with enterprise-grade reliability.

    With DDR5 memory support reaching 256 GB and PCIe 5.0 bandwidth from the CPU, this motherboard delivers the speed required for demanding professional workloads. The three M.2 slots provide flexibility for rapid SSD configurations, whilst RAID support on SATA storage enables data redundancy and fault tolerance.

    Connectivity is a standout feature: Wi-Fi 6E delivers wireless performance, a 2.5 GbE Ethernet port handles network operations, and quad-display capability via USB4, DisplayPort 2.1, and HDMI ensures multi-monitor setups for productivity-focused environments. The extensive USB infrastructure—including USB4, USB 3.2 Gen 2, and USB 2.0 headers—accommodates multiple peripherals without compromise.

    With a 3-year manufacturer warranty, this motherboard is built for businesses requiring stability, performance, and longevity in compact configurations.
Specifications
BrandGigabyte
ModelB860M A ELT WF6E ICE
Form FactorMicro-ATX
ChipsetIntel B860 Express
CPU SocketLGA1851
Supported ProcessorsIntel Core Ultra processors
Memory TypeDDR5
Memory Slots4 x DIMM
Maximum Memory256 GB (64 GB per DIMM)
Memory SpeedsDDR5 5600 to 9200 MT/s (with overclocking profiles)
Memory FeaturesECC Un-buffered DIMM support, XMP profiles
Primary PCIe Slot1 x PCIe 5.0 x16 (from CPU)
Secondary PCIe Slot1 x PCIe 4.0 x16 (x4 mode, from chipset)
M.2 Slot 1PCIe 5.0 x4/x2 (CPU-connected, type 2280)
M.2 Slot 2PCIe 4.0 x4/x2 (type 2280/2580)
M.2 Slot 3PCIe 4.0 x4/x2 (type 2280/2580/25110/22110)
SATA Ports4 x SATA 6 Gbps
RAID SupportRAID 0, 1, 5, 10
USB4 Port1 x USB4 Type-C (supports DisplayPort 2.1 output)
USB 3.2 Gen 22 x Type-A (back panel) + 1 x Type-C (internal header)
USB 3.2 Gen 14 x Type-A (back panel) + 2 x internal headers
USB 2.04 x Type-A (back panel) + 4 x internal headers
DisplayPort Output1 x DisplayPort 2.1
HDMI Outputs2 x HDMI (1 x 4K@60Hz rear, 1 x 1080p@30Hz front panel)
Maximum Display Resolution4096 x 2160 @ 60 Hz (via HDMI 2.1)
Multi-Display SupportUp to 4 displays simultaneously
Network ChipsetRealtek 2.5 GbE
LAN Speeds2.5 Gbps / 1 Gbps / 100 Mbps
Wireless ModuleIntel Wi-Fi 6E AX211
Warranty36 months (3 years)
Key Features
Intel LGA1851 socket for Core Ultra processors with B860 Express chipset
4 x DDR5 DIMM slots supporting up to 256 GB with overclocking profiles
PCIe 5.0 x16 slot from CPU for maximum graphics and storage performance
3 x M.2 slots with PCIe 5.0 and PCIe 4.0 support for fast NVMe SSDs
Intel Wi-Fi 6E AX211 and Realtek 2.5 GbE LAN for modern connectivity
Quad-display support via USB4, DisplayPort 2.1, and HDMI outputs
9 x USB 3.2 ports plus USB 2.0 headers for extensive peripheral connectivity
4 x SATA ports with RAID 0, 1, 5, and 10 support for storage flexibility
Ideal For
Compact workstations and small-form-factor business systems
Professional content creation and design workstations requiring fast storage
Data centres and server environments with dense deployment needs
Systems requiring high-speed memory and multiple display outputs
IT integrators building compact, upgrade-ready business PCs
FAQs
Which Intel processors are compatible with the B860M A ELT WF6E ICE?

This motherboard supports Intel Core Ultra processors on the LGA1851 socket. For a complete list of compatible CPUs, refer to Gigabyte's official support page, as compatibility can vary based on BIOS version.

Can I use DDR4 memory in this motherboard?

No. This motherboard is DDR5-only. It features 4 x DDR5 DIMM slots and does not support DDR4 memory modules.

What is the maximum memory capacity?

The motherboard supports up to 256 GB of DDR5 RAM via 4 DIMM slots (64 GB per slot). Ensure memory modules are compatible with the CPU and BIOS version for optimal performance.

Does this motherboard support fast NVMe SSDs?

Yes. It features 3 x M.2 slots with PCIe 5.0 and PCIe 4.0 support. The primary M.2 slot (CPU-connected) supports PCIe 5.0, providing maximum speed for compatible NVMe drives.

Can I use multiple graphics cards or connect multiple displays?

The motherboard supports quad-display output via USB4, DisplayPort 2.1, and HDMI connections. For graphics cards, the PCIe 5.0 x16 slot is recommended; a second PCIe 4.0 x4 slot is available. Note that some M.2 functionality may be limited if using both slots simultaneously—refer to the manual for details.

Is Wi-Fi included on this motherboard?

Yes. The motherboard features an integrated Intel Wi-Fi 6E AX211 module for wireless connectivity alongside the Realtek 2.5 GbE wired Ethernet port.

What warranty does this motherboard include?

The Gigabyte B860M A ELT WF6E ICE comes with a 36-month (3-year) manufacturer warranty covering defects in materials and workmanship.

Can I set up RAID storage on this motherboard?

Yes. The 4 x SATA ports support RAID 0, 1, 5, and 10 configurations, enabling data redundancy and performance optimisation for storage systems.
