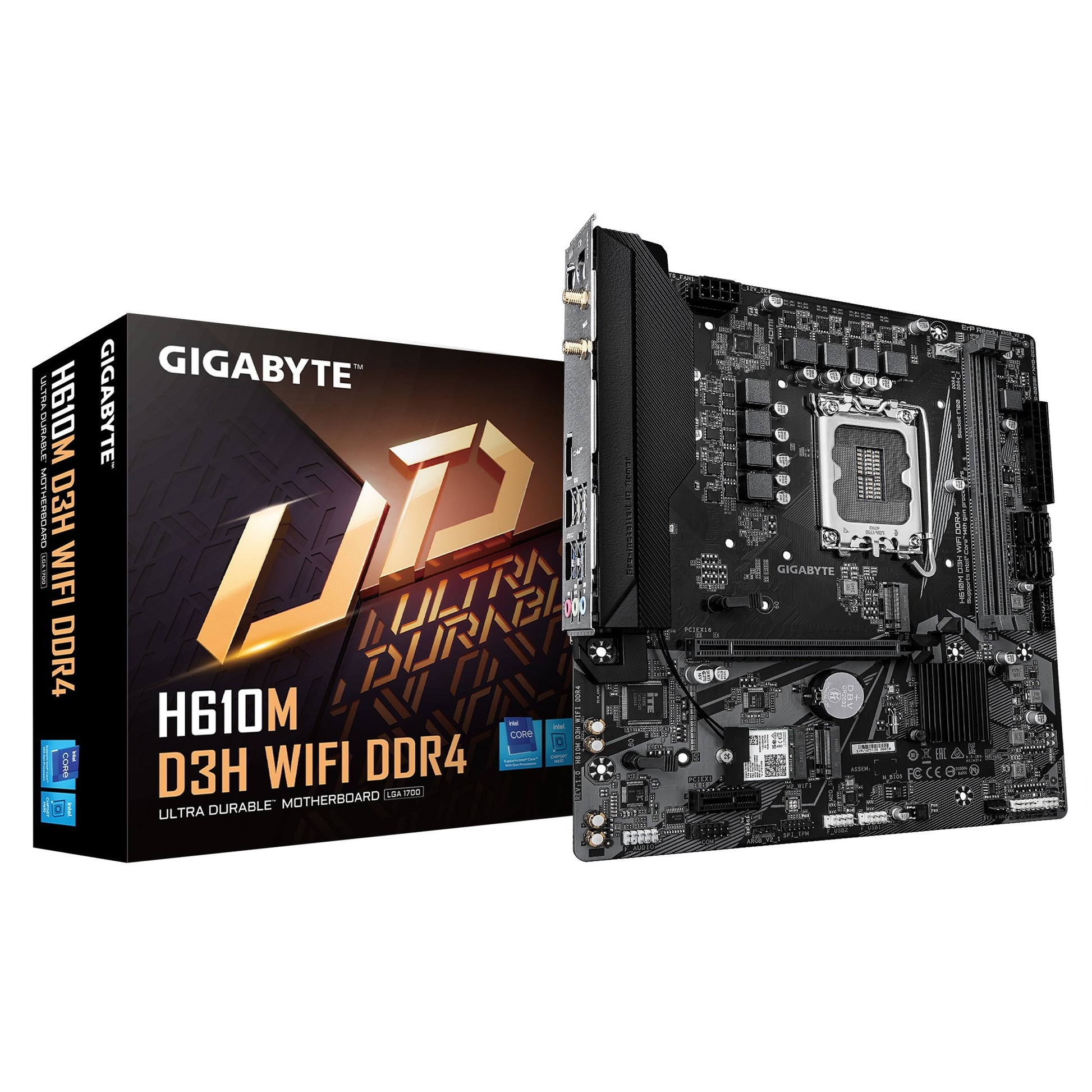

Gigabyte H610M D3H WIFI DDR4 Micro ATX Motherboard
Gigabyte H610M D3H WIFI DDR4 Micro ATX Motherboard
SKU:MBG-H610MD3HWIFIDDR4
The Gigabyte H610M D3H WIFI DDR4 is a Micro ATX motherboard designed for 12th, 13th, and 14th Gen Intel systems. Featuring integrated WiFi, DDR4 memory support up to 64GB, PCIe 4.0, and comprehensive storage connectivity, it delivers reliable performance for business workstations and compact builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-H610MD3HWIFIDDR4 |
| Availability | In Stock |
Overview
- The Gigabyte H610M D3H WIFI DDR4 is a compact Micro ATX motherboard purpose-built for 12th, 13th, and 14th Generation Intel processors. It combines practical expansion options with integrated WiFi, making it ideal for businesses seeking a balance between performance and physical footprint.
This motherboard supports up to 64GB of DDR4 memory with XMP profiles for optimised performance, while PCIe 4.0 connectivity ensures fast GPU and storage expansion. The inclusion of dual M.2 slots and four SATA ports provides flexible storage configuration for both SSD and traditional hard drive setups.
Built with 36-month manufacturer warranty, the H610M D3H WIFI DDR4 delivers solid reliability for office environments, small workstations, and compact system integrations. Its comprehensive I/O including multiple USB 3.2 Gen 1 ports and HDMI 2.1 video output meets the connectivity demands of modern business computing.
Specifications
| Chipset | Intel H610 Express |
|---|---|
| CPU Socket | Intel LGA1700 |
| Supported Processors | 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors |
| Memory Type | DDR4 |
| Memory Speed | 3200/3000/2933/2666/2400/2133 MT/s |
| Memory Capacity | Up to 64GB (2x 32GB DIMM) |
| Memory Slots | 2x DDR4 DIMM sockets |
| Memory Features | Dual channel architecture, XMP profile support, ECC Un-buffered DIMM compatible |
| Form Factor | Micro ATX |
| Dimensions | 23.0cm (W) x 21.5cm (H) |
| Video Output | 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3) |
| Graphics | Integrated Intel HD Graphics (processor dependent) |
| PCIe Slot 1 | 1x PCI Express x16 (PCIe 4.0, CPU connected) |
| PCIe Slot 2 | 1x PCI Express x1 (PCIe 3.0, Chipset connected) |
| M.2 Slot 1 | Socket 3, M key, Type 2280/2260, PCIe 3.0 x4/x2 |
| M.2 Slot 2 | Socket 3, M key, Type 2280/2260, PCIe 3.0 x2 |
| SATA Ports | 4x SATA 6Gb/s |
| USB 3.2 Gen 1 | 4x (2 rear panel, 2 internal header) |
| USB 2.0/1.1 | 6x (4 rear panel, 2 internal header) |
| Network | Integrated WiFi |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the Gigabyte H610M D3H WIFI?
This motherboard supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors with LGA1700 socket. Refer to Gigabyte's CPU Support List for the complete compatibility list.
What is the maximum memory capacity supported?
The H610M D3H WIFI supports up to 64GB of DDR4 memory via 2 DIMM sockets (32GB per DIMM maximum). It supports speeds from 2133 to 3200 MT/s and includes XMP profile support for performance memory.
Can I use NVMe SSDs with this motherboard?
Yes. The board includes 2x M.2 connectors supporting NVMe SSD expansion. The first slot supports PCIe 3.0 x4/x2 (Type 2280/2260), and the second slot supports PCIe 3.0 x2 (Type 2280/2260).
Does this motherboard have built-in WiFi?
Yes, the H610M D3H WIFI includes integrated WiFi connectivity, eliminating the need for a separate WiFi adapter card.
What storage options are available?
The motherboard provides 4x SATA 6Gb/s ports for traditional hard drives and SSDs, plus 2x M.2 NVMe slots, allowing flexible storage configuration with multiple drive types.
Is this motherboard suitable for compact or small form factor builds?
Yes. The Micro ATX form factor (23.0cm x 21.5cm) is designed for smaller systems while offering solid expansion options, making it ideal for space-constrained environments.
What video output options does it have?
The motherboard features 1x HDMI 2.1 port supporting up to 4096x2160@60Hz resolution (HDCP 2.3 compatible), powered by integrated Intel graphics.
What warranty does this motherboard include?
The Gigabyte H610M D3H WIFI DDR4 includes a 36-month manufacturer warranty.
