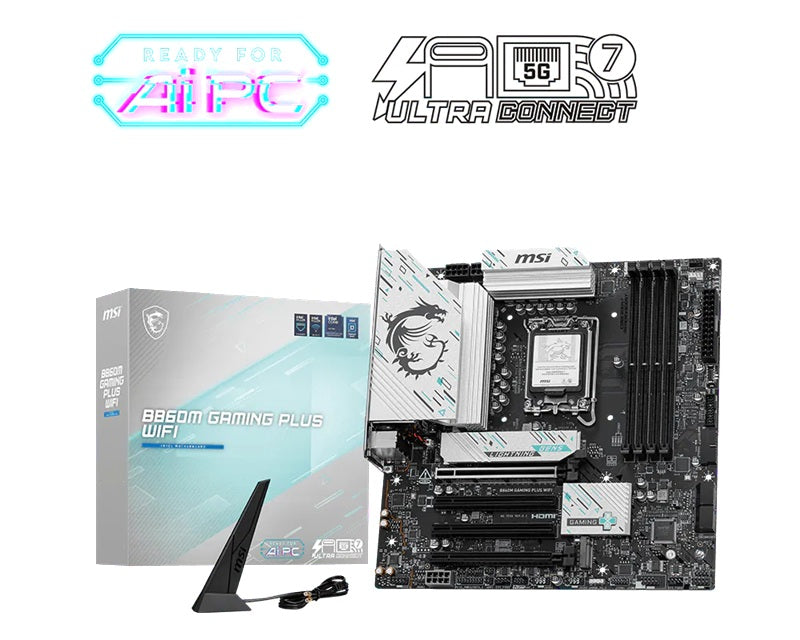

MSI B860M GAMING PLUS WIFI Micro-ATX Motherboard
MSI B860M GAMING PLUS WIFI Micro-ATX Motherboard
SKU:MBM-B860M-GAMINGPLUSWIFI
The MSI B860M GAMING PLUS WIFI is a micro-ATX motherboard built on the Intel B860 chipset, designed for high-performance gaming and workstation builds. Featuring Intel Killer BE1750x Wi-Fi 7, DDR5 memory support, and comprehensive connectivity options, it delivers reliable performance for system builders and IT professionals.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B860M-GAMINGPLUSWIFI |
| Availability | In Stock |
Overview
- The MSI B860M GAMING PLUS WIFI is a feature-rich micro-ATX motherboard designed for demanding computing applications. Built on the Intel B860 chipset, it supports the latest Intel Core Ultra Processors (Series 2) via the LGA 1851 socket, providing a solid foundation for modern gaming and professional workloads.
This motherboard excels in connectivity and expandability. The Intel Killer BE1750x Wi-Fi 7 delivers next-generation wireless speeds, whilst the quad M.2 storage configuration and four SATA connections support high-speed NVMe drives and traditional storage in parallel. Multiple display outputs including HDMI 2.1, DisplayPort 1.4, and USB Type-C DisplayPort enable flexible multi-monitor setups up to 4K 60Hz.
The DDR5 memory architecture supports up to 256GB across four DIMM slots, providing substantial headroom for memory-intensive applications. Four PCI-E x16 slots offer exceptional expansion capability for graphics cards, networking hardware, or specialised accelerators, making this platform suitable for both gaming enthusiasts and professional system builders.
Specifications
| Chipset | Intel B860 |
|---|---|
| CPU Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (mATX) |
| PCB Dimensions | 243.84mm x 243.84mm |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 256GB |
| M.2 Slots | 3x |
| SATA Ports | 4x SATA 6G |
| PCI-E Slots | 4x PCI-E x16 |
| Display Outputs | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x USB Type-C DisplayPort |
| USB 2.0 | 6x (2x Rear, 4x Front) |
| USB 5Gbps Type-A | 6x (2x Rear, 4x Front) |
| USB 5Gbps Type-C | 1x Rear |
| USB 10Gbps Type-A | 1x Rear |
| USB 10Gbps Type-C | 1x Front |
| Wireless | Intel Killer BE1750x Wi-Fi 7 |
| Bluetooth | Integrated |
| Operating System Support | Windows 11 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with the MSI B860M GAMING PLUS WIFI?
This motherboard supports Intel Core Ultra Processors (Series 2) via the LGA 1851 socket. Check the Intel specifications for your specific processor model to confirm compatibility.
How much DDR5 memory can this motherboard support?
The MSI B860M GAMING PLUS WIFI supports up to 256GB of DDR5 memory across its 4 DIMM slots. Ensure you use compatible DDR5 modules for optimal performance.
What Wi-Fi standard does this motherboard feature?
It includes the Intel Killer BE1750x, which supports Wi-Fi 7 (802.11be) for significantly faster wireless speeds and lower latency compared to Wi-Fi 6.
Can I use multiple GPUs with this motherboard?
Yes, the motherboard features 4x PCI-E x16 slots, allowing installation of multiple graphics cards for multi-GPU configurations or expansion of specialised hardware.
How many storage drives can I connect?
You can connect up to 7 drives: 3x NVMe M.2 drives and 4x SATA 6G hard drives or SSDs, providing flexibility for high-capacity storage configurations.
What display outputs are available for multi-monitor setups?
The motherboard supports three independent display outputs: HDMI 2.1, DisplayPort 1.4, and USB Type-C DisplayPort, each capable of 4K 60Hz resolution.
Is this motherboard suitable for compact PC builds?
Yes, the micro-ATX form factor (243.84mm x 243.84mm) makes it ideal for compact builds whilst maintaining extensive connectivity and expansion options compared to smaller form factors.
What is the warranty period?
The MSI B860M GAMING PLUS WIFI comes with a 36-month manufacturer's warranty covering defects in materials and workmanship.
