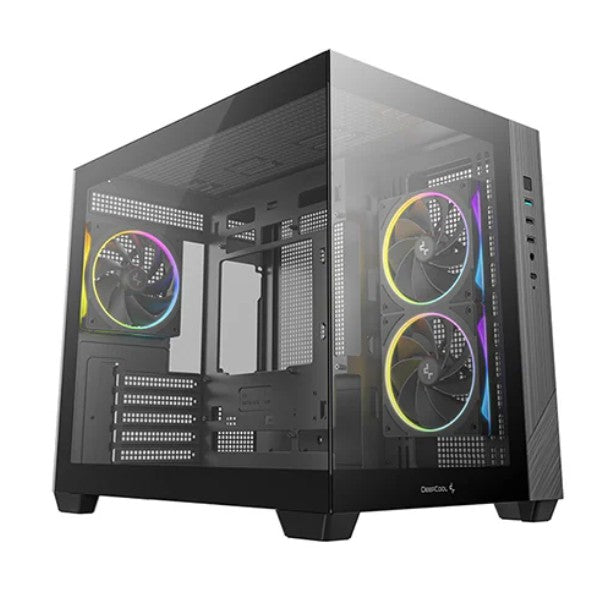

DeepCool CG330 3F Micro-ATX PC Case
DeepCool CG330 3F Micro-ATX PC Case
SKU:CAD-CG330-3F
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Cases & Accessories |
| SKU | CAD-CG330-3F |
| Availability | In Stock |
Overview
- The DeepCool CG330 3F is a well-engineered Micro-ATX case designed for builders who want a balance of style, functionality, and practical cooling support. The tempered glass panel showcases your hardware whilst the pre-installed ARGB fans add visual appeal straight from the box.
This case excels in flexibility. It supports up to 360mm radiators on the top and bottom, accommodates CPU coolers up to 163mm tall, and provides space for graphics cards up to 410mm. Whether you're building a gaming PC, workstation, or media centre, the CG330 3F adapts to your needs.
Back-Plug (BTF) motherboard compatibility simplifies cable routing and improves internal organisation. The four drive bays provide ample storage expandability, whilst the front I/O panel includes USB 3.0, USB 2.0, and audio connectivity. At 5.5kg with quality materials—ABS plastic, steel, and tempered glass—it's durable enough for regular transport and handling.
With 12 months warranty and a reputation for thoughtful design, the CG330 3F represents practical value for Australian IT professionals and enthusiast builders alike.
Specifications
| Dimensions | 420×285×368mm (L×W×H) |
|---|---|
| Weight | 5.5kg |
| Material | ABS, SPCC steel, tempered glass |
| Motherboard Support | Micro-ATX, Mini-ITX (BTF rear connector) |
| Drive Bays 3.5" | 1+1 |
| Drive Bays 2.5" | 2+2 |
| Expansion Slots | 5 slots |
| Pre-Installed Fans | 2×120mm side, 1×120mm rear |
| Fan Support Top | 3×120mm or 2×140mm |
| Fan Support Side | 2×120mm or 2×140mm |
| Fan Support Bottom | 3×120mm or 2×140mm |
| Fan Support Rear | 1×120mm |
| Radiator Support Top | 120/140/240/280/360mm |
| Radiator Support Side | 120/140/240/280mm |
| Radiator Support Bottom | 120/240/280/360mm |
| Radiator Support Rear | 120mm |
| CPU Cooler Height Clearance | 163mm maximum |
| GPU Length Support | 410mm maximum |
| Power Supply | 200mm form factor |
| Front I/O | 1×USB 3.0, 2×USB 2.0, 1×audio connector |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboards are compatible with the CG330 3F?
The case supports Micro-ATX and Mini-ITX motherboards. It features a back-plug (BTF) rear connector design, which is ideal for modern Micro-ATX boards with rear I/O connectors.
Can I install a large radiator in this case?
Yes. The CG330 3F supports up to 360mm radiators on the top and bottom panels, and up to 280mm on the side panel. This allows for high-end liquid cooling setups.
How much storage can I add?
The case provides four drive bays: two 2.5" bays and one 3.5" bay internally, plus an additional external 3.5" bay. This supports up to four storage drives or SSDs.
Are the ARGB fans included, and how do I control them?
Yes, three 120mm PWM ARGB fans are pre-installed (two on the side, one on the rear). They are controlled via the front I/O panel, and can be managed through motherboard headers or a separate ARGB controller.
What is the maximum GPU length this case supports?
The case supports graphics cards up to 410mm in length, which covers most modern mid-range and high-end GPUs.
Is a power supply included?
No, the CG330 3F is a case only. You will need to purchase a 200mm form factor power supply separately.
What connectivity options are available on the front panel?
The front I/O includes 1×USB 3.0 port, 2×USB 2.0 ports, and 1×audio connector, allowing easy access to peripherals and headphones.
