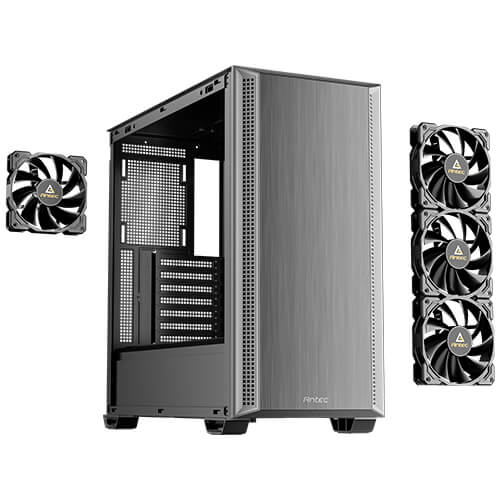

Antec P7 S Mid-Tower ATX Case
Antec P7 S Mid-Tower ATX Case
SKU:CAA-P7S
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | CAA-P7S |
| Availability | In Stock |
Overview
- The Antec P7 S is a well-equipped mid-tower case built for builders who demand both performance and flexibility. With support for multiple motherboard form factors and advanced cooling options including 360mm radiator compatibility, it suits a wide range of system configurations from gaming rigs to professional workstations.
The case includes four pre-installed 120mm PWM fans and features sound dampening foam on the side panel, helping manage acoustic noise during operation. The inclusion of USB-C 3.2 Gen 2 on the front panel provides fast connectivity for modern peripherals and external storage.
Clearance specifications allow for GPUs up to 405mm and CPU coolers up to 175mm in height, accommodating most current high-end components. The 7-expansion slot layout and flexible drive bay configuration support traditional storage drives alongside newer M.2 SSDs, making the P7 S adaptable to various build requirements.
Specifications
| Brand | Antec |
|---|---|
| Model | P7 S |
| Case Type | Mid-Tower |
| Form Factor | ATX, Micro-ATX, Mini-ITX |
| Dimensions (D x W x H) | 478 x 222 x 465 mm |
| Materials | Steel and plastic |
| Weight (Net) | 5.75 kg |
| Weight (Gross) | 7.20 kg |
| Front Panel I/O | 2× USB 3.0, 1× USB-C 3.2 Gen 2 (10Gbps), power button, reset button, headphone/microphone combo jack |
| Side Panel | Steel with sound dampening foam |
| Expansion Slots | 7 |
| Drive Bays (3.5"/2.5") | 2 × 3.5" / 2 × 2.5" (1 additional 2.5" bay) |
| Fan Support (Front) | 3× 120mm or 2× 140mm |
| Fan Support (Top) | 3× 120mm, 2× 140mm, or 360mm radiator |
| Fan Support (Rear) | 1× 120mm |
| Fan Support (PSU Shroud) | 2× 120mm |
| Pre-Installed Fans | 3× 120mm PWM (front) + 1× 120mm PWM (rear) |
| Radiator Support (Front) | 120mm, 140mm, or 240mm |
| Radiator Support (Top) | 120mm, 240mm, or 360mm |
| Radiator Support (Rear) | 120mm (length ≤160mm) |
| Max GPU Length | 405mm |
| Max CPU Cooler Height | 175mm |
| Max PSU Length | 270mm (cable included) |
| Dust Filters | Top and bottom |
| Warranty | 24 months |
| UPC | 0-761345-10258-2 |
Key Features
Ideal For
FAQs
What motherboard sizes does the Antec P7 S support?
The P7 S supports ATX, Micro-ATX (M-ATX), and Mini-ITX motherboards, making it compatible with a wide range of builds from compact to full-featured systems.
Can I install a 360mm radiator in this case?
Yes, the P7 S supports a 360mm radiator in the top-mounted position, making it suitable for high-performance liquid cooling setups.
What is the maximum GPU length this case supports?
The case accommodates graphics cards up to 405mm in length, which covers most current high-end and mid-range GPUs.
How many fans are included with the P7 S?
Four 120mm PWM fans are pre-installed: three at the front intake and one at the rear exhaust. Additional fans can be added to optimise airflow.
Does the P7 S have USB-C connectivity?
Yes, it features one USB-C 3.2 Gen 2 (10Gbps) port on the front panel for fast data transfer and modern peripheral connectivity.
What is the maximum PSU size this case can fit?
The case supports power supplies up to 270mm in length (including cables), accommodating most standard modular and semi-modular units.
What storage options does the P7 S offer?
The case provides 2× 3.5" drive bays and 3× 2.5" drive bays, supporting traditional hard drives, SSDs, and M.2 storage configurations.
