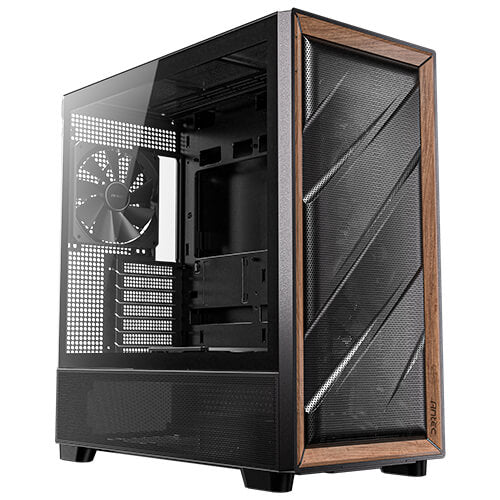

Antec Flux ATX Mid Tower Case with 5 PWM Fans
Antec Flux ATX Mid Tower Case with 5 PWM Fans
SKU:CAA-FLUX-BK
The Antec Flux is an ATX mid-tower case designed for high-performance gaming and workstation builds. Featuring five pre-installed PWM fans, premium walnut-trimmed front panel, and multi-directional airflow design, it delivers superior cooling and aesthetic appeal for discerning builders.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | CAA-FLUX-BK |
| Availability | In Stock |
Overview
- The Antec Flux mid-tower case represents a balance between premium design and thermal performance. Built on the F-LUX (Flow Luxury) platform, it features an innovative multi-directional vent design that maximises airflow through the power supply chamber, front mesh intake, and dedicated GPU cooling channels. The five pre-installed PWM fans work in concert with the case's optimised geometry to deliver efficient heat dissipation across the entire chassis.
The distinctive walnut wood and metal mesh front panel distinguishes the Flux from conventional cases, making it suitable for visible builds and home office environments. The recessed front design further reduces noise while maintaining airflow efficiency. The case supports extensive water cooling configurations, accommodating simultaneous 360mm radiators on the front and top, or extreme configurations with 420mm front and 280mm top radiators for high-end cooling solutions.
Internally, the case provides versatile drive bay options with two 3.5" bays, three 2.5" bays, and seven expansion slots, supporting full-size E-ATX boards down to compact ITX configurations. The built-in ARGB and PWM hub synchronises directly with compatible motherboards, eliminating the need for external controllers. Vertical GPU mounting, tempered glass side panel, and back-connect motherboard support round out the feature set.
Specifications
| Brand | Antec |
|---|---|
| Model | Flux |
| Form Factor | Mid Tower |
| Dimensions | 484 × 239 × 502 mm (D × W × H) |
| Materials | Steel, plastic, walnut wood |
| Side Panel | 4mm tempered glass |
| Motherboard Support | E-ATX (≤330mm), ATX, Micro-ATX, ITX |
| Expansion Slots | 7 |
| Drive Bays | 2× 3.5", 2× 2.5" (front); 1× 2.5" (internal) |
| Pre-Installed Fans | 5× 120mm high-performance PWM fans |
| Fan Control | Built-in ARGB and PWM hub (motherboard sync capable) |
| Front Panel Connectivity | Power button, Reset button, 2× USB 3.0, 1× USB Type-C 10Gbps, 3.5mm headphone/microphone combo jack |
| Water Cooling Support | Front 360mm + Top 360mm (standard); Front 420mm push-pull + Top 280mm (extreme) |
| GPU Mounting | Vertical GPU bracket included |
| Cable Management | Back-connect motherboard support |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the Antec Flux support?
The Flux supports E-ATX (up to 330mm), ATX, Micro-ATX, and ITX motherboards, making it compatible with a wide range of builds from compact systems to full-size gaming rigs.
How many fans come pre-installed?
The case includes five pre-installed 120mm high-performance PWM fans. These work with the built-in ARGB and PWM control hub that synchronises directly with compatible motherboards.
Can I install water cooling in the Flux?
Yes. The Flux supports standard water cooling with a 360mm radiator on the front and 360mm on the top simultaneously. For extreme cooling, it accommodates a 420mm push-pull radiator on the front and 280mm radiator on the top.
Does the case support vertical GPU mounting?
Yes. The Flux includes a vertical GPU mounting bracket and fully-open PCI slot covers that can be removed to install your graphics card vertically.
What are the drive bay options?
The case provides two 3.5" bays, two 2.5" front bays, and one additional 2.5" internal bay, offering flexible storage configuration for SSDs and traditional hard drives.
What makes the Flux different from standard mid-tower cases?
The Flux combines premium walnut wood and metal mesh aesthetic design with optimised multi-directional airflow architecture. It includes five PWM fans, supports extensive water cooling, and features back-connect motherboard support for superior cable management and airflow.
Is the side panel tempered glass?
Yes, the case features a 4mm tempered glass side panel, providing clear visibility of your components.
