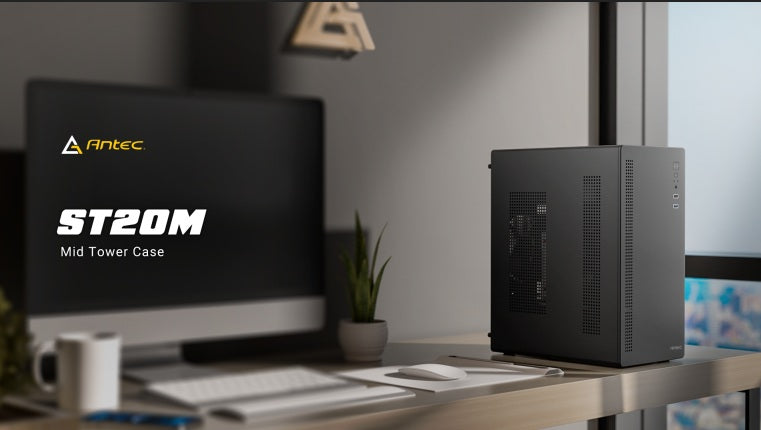

Antec ST20M Mid Tower Case + 550W Power Supply
Antec ST20M Mid Tower Case + 550W Power Supply
SKU:CAA-ST20MVPA55AU
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | CAA-ST20MVPA55AU |
| Availability | In Stock |
Overview
- The Antec ST20M is a well-engineered mid-tower case that combines compact dimensions with practical build flexibility. The integrated 550W power supply with Active PFC eliminates the need for separate procurement, reducing setup complexity and cost for small business deployments and custom builds.
Designed for micro-ATX and ITX motherboards, this case accommodates modern graphics cards up to 265mm and CPU coolers up to 150mm, making it suitable for contemporary hardware configurations. The front-facing USB 3.0 port provides fast data transfer, while multiple drive bays support both 3.5" and 2.5" storage drives.
At just 275 x 180 x 352mm, the ST20M fits easily into space-constrained environments such as office desks or retail counters. The single 120mm rear fan provides adequate airflow for typical business workloads, whilst protection features including Over-Voltage, Short-Circuit, and Over-Power protection safeguard connected components.
Specifications
| Case_Form_Factor | Mid Tower |
|---|---|
| Case_Material | Steel |
| Case_Dimensions | 275 x 180 x 352mm (W x D x H) |
| Case_Weight_Net | 2.01kg |
| Case_Weight_Gross | 2.48kg |
| Motherboard_Support | Micro-ATX, Mini-ITX |
| Expansion_Slots | 4 |
| Drive_Bays_3_5_inch | 1 |
| Drive_Bays_2_5_inch | 1 |
| Max_GPU_Length | 265mm |
| Max_CPU_Cooler_Height | 150mm |
| Max_PSU_Length | 160mm |
| Front_Panel_USB | 1x USB 3.0, 1x USB 2.0 |
| Front_Panel_Audio | Headphone/Microphone combo jack |
| Front_Panel_Controls | Power button, Reset button |
| Included_Fans | 1x 120mm rear exhaust fan |
| Fan_Support_Rear | 1x 120mm |
| PSU_Model | VPA550P (Safe Model V3000A175EC-26) |
| PSU_Capacity | 550W |
| PSU_Type | ATX 12V 2.3 |
| PSU_Modular | Non-modular |
| PSU_Fan | 120mm silent fan |
| PSU_Input_Voltage | 200-240V AC |
| PSU_Input_Current | 4A maximum |
| PSU_Input_Frequency | 50-60Hz |
| PSU_PFC | Active PFC |
| PSU_Protection | OVP, SCP, OPP, NLO |
| PSU_Power_Good_Signal | 100-500ms |
| PSU_Operating_Temperature | 0-30°C |
| PSU_Connectors | 1x 24-pin motherboard, 1x 8-pin CPU, 2x 8-pin PCIe, 6x SATA, 2x Molex |
| PSU_Dimensions | 140 x 150 x 86mm (L x W x H) |
| Regulatory_Certifications | CB, CE |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Is the power supply included with the Antec ST20M case?
Yes, the Antec ST20M comes with a pre-installed 550W VPA550P power supply, eliminating the need to purchase a PSU separately.
What motherboard types does the ST20M support?
The ST20M supports both Micro-ATX and Mini-ITX motherboards, making it ideal for compact builds whilst offering more expansion options than standard ITX cases.
Can I fit a modern graphics card in this case?
Yes, the case supports graphics cards up to 265mm in length, which accommodates most modern mid-range and entry-level graphics cards.
How much storage can I add to the ST20M?
The case provides 1x 3.5" bay for mechanical hard drives and 1x 2.5" bay for SSDs or additional drives, with 4 total expansion slots available.
What cooling does the ST20M include?
The case includes a single 120mm rear exhaust fan. Airflow is suitable for typical business workloads, though additional case fans can be added if required.
Does the 550W power supply provide sufficient power for a typical business PC?
Yes, a 550W supply is adequate for Micro-ATX and ITX systems with modest graphics cards and storage. For systems with high-end GPUs, a larger PSU may be required.
What connectors does the VPA550P power supply include?
The PSU includes 1x 24-pin motherboard connector, 1x 8-pin CPU connector, 2x 8-pin PCIe connectors, 6x SATA connectors, and 2x Molex connectors.
